Are you challenging problems with your rear-facing camera? Are you trying to take pictures but you could not? Use this guide to overcome these problem and enjoy a new DROID MAXX quality camera.

  1. 1PX2nhItvGRfbDNT
    1PX2nhItvGRfbDNT
    IAsvnRr1NjEboIKt
    • Place the Droid Maxx face up on a soft flat plastic surface with plenty of space to place your tools and small parts of the equipment.

    • Lift the Droid Maxx and turn it in a 90-degree angle to your left while you are holding it by the sides with one hand. Maintain the same position all times unless indicated otherwise in subsequent steps.

  2. PVmxOEektTjsTE5K
    PVmxOEektTjsTE5K
    oLF4j3Vkq3d6yIQV
    YRXRInEktOaNDxCn
    • Find the volume buttons located towards the center of the Droid Maxx.

    • With your free hand, take the Spudger and insert it between the upper gap, closest to the screen, of the volume buttons and the Droid Maxx case.

    • Using the flat part of the Spudger’s Tip and pressing firmly against the Droid Maxx case until you hear a “snap” sound

    • With your free hand, remove the buttons carefully with your two fingers and make sure to keep the motion until the piece is completely out of your Droid Maxx. Do not bend or force the part since it also serves as a tray for placing a SIM Card.

  3. NGeAMD5i6EQC66KZ
    NGeAMD5i6EQC66KZ
    e3jQW5UUcPN2a2Cd
    iQVKFeOKT2u6jbVS
    • Tilt the Droid Maxx towards your right so you can see the edge of the rubber back case and keep this position.

    • Take the Spudger and press the tip against the space between the rubber case and the Droid Maxx frame. Slide the Spudger’s edge along the surface until you hear a “snap” sound.

    • Work your way to the top of the Droid Maxx with the Spudger and use your holding hand’s fingers as support while you remove the upper part of the rubber back case. Rotate the Droid Maxx to facilitate your movement if necessary. Do not go along the bottom to remove the case.

    • Once the top part of the case is separated from the frame, grip the bottom part of the rubber case with your finger and slide the case down to remove it completely.

    • Place the rubber back case in a nearby place where it will not interfere with your arms motion.

    one more picture would be nice to see the top part of the case separated from the frame before you use your fingers to slide the case down to remove it completely. other then that thank you very much was really helpful i wouldn't of figured it out, myself !

    zukcudo -

    Agreed: we really could use an additional picture. You have to pry the case apart at the top before you can slide the back off by moving it towards the bottom.

    Fred Chapman -

    It would be a good idea also to advise people to be very careful of the volume buttons. They are easy to break if a spudger or anything else were allowed to slide across them. Yep… I did that. Lucky for me I had someone quite capable to solder new ones on for me. =o)

    Rongwey -

  4. MetDAatly6gItPAW
    MetDAatly6gItPAW
    ARkE1iIopidS3Iiv
    ETaDmrmNItPwKWSp
    • Lay the Droid Maxx face down on the plastic surface to start removing the screws.

    • Take the Torx T5 Screwdriver and carefully remove all the screws in the Droid Maxx’s motherboard. Note that there is a total of eight (11) black screws spread across the motherboard, four (4) at the top and four (4) at the bottom, and also two (2) silver screws located to the right lower part of the Droid Maxx.

    • There is(1) screw holding the camera housing. Use a T4 screwdriver for this one screw.

    • After removing all the screws, lift hold the Droid Maxx as in step 2

    • Locate two (2) tabs in the camera plastic housing , one (1) at each corner of the Droid Maxx

    • Take the Flathead driver and gently lift both tabs to release the camera housing. Be careful because these plastic tabs are very delicate and can break easily.

    **** The camera housing is held in place with a T3 not a T4!****

    dbmeyer2 -

    Confirmed: the camera housing screw is a T3, not a T4. It's really tiny!

    Fred Chapman -

    Can you please show some pictures of the tabs on either side of the top plate that covers the rear-facing camera? That part is tricky and not at all obvious from the written description.

    Fred Chapman -

    Once you release the tabs of the top plastic housing on either side you can just pry it open. It maybe a bit stuck with adhesive but it comes off without fear of breaking any cables

    Rao Garimella -

  5. uTloDHeMboIFv6Lk
    • Now you are all set! These steps along with images should serve as guide to disassemble your Motorola Droid Maxx in a safe manner. The following guides will indicate how to replace parts of your Droid Maxx such as the camera or battery.

    • Keep in mind that in order to replace any of the aforementioned parts you will be redirected to this general section.

  6. xNvWLkAiWyYxQXSi

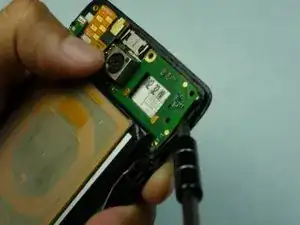

    • Using a prying plastic tool start lifting the motherboard from the assembly.

    • You may need to use a gun heater to soften the adhesive around the assembly.

  7. cQqLFemYZmgotLKc

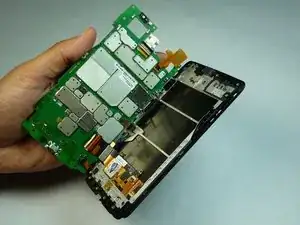

    • Use a spudger to lift up the anti-static tape covering the camera connectors. Remove the tape

    • Consider keeping the tape in case you need to reuse it if you don’t have spare tape.

  8. TwDtxbpsHYK5NmtC

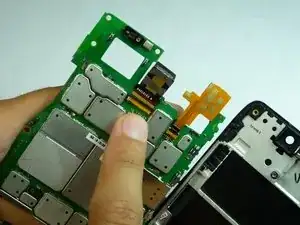

    • When the tape is out and the camera connectors disconnected use a plastic opening tool to lift up the tab on the rear-facing camera

    • Push the rear-facing camera and remove it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
