Motorola DROID RAZR MAXX Camera Cover Replacement

Geschrieben von: Govind
  • Kommentare: 0
Motorola DROID RAZR MAXX Camera Cover Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

5 - 10 Minuten

Einleitung

The back cover may be made of Kevlar but the camera glass isn't, if it ends up breaking use this to help you replace it with a new one.

  1. aLRhyFOx6p1aVSw5
    aLRhyFOx6p1aVSw5
    PppoGkfJoIyb1lf3

    • Remove the SIM card.

    • Remove the microSD card.

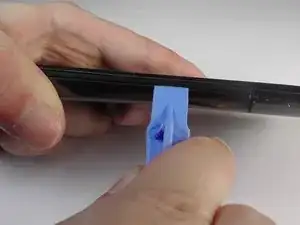

    • Insert the plastic opening tool between the back cover and the front piece of the case, freeing the plastic clips between the phone.

    • Do this along the back right side of the phone cover until you reach the top.

  2. HDTHYHvSx4j5BUht
    HDTHYHvSx4j5BUht
    NuiPGRGDiYUSWvyR

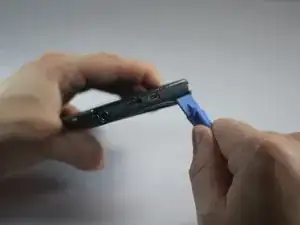

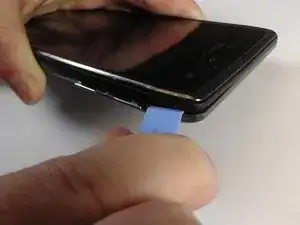

    • Use the plastic opening tool to carefully work your way around the top of the phone, freeing the plastic clips.

    • Be cautious when using the tool around the top of the device because the plastic case is very thin and could easily be cracked or snapped.

    • Continue using the tool and pry down the remaining side and the bottom of the phone.

  3. YDxvcmrqcdxQ2jmZ
    YDxvcmrqcdxQ2jmZ
    1cDPmQLYXDXJjdNE
    n3oW1nq3twJX1QNL

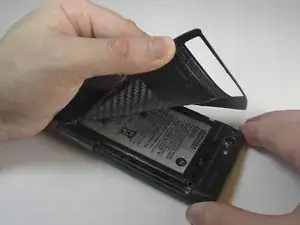

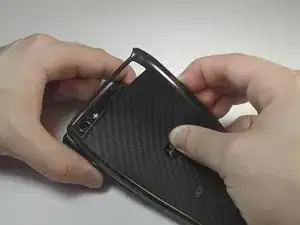

    • With all the plastic clips released, pull away the back cover from the phone to remove it.

    • The back cover is attached to the battery with a large amount of adhesive. Some force may be required to pull the back cover from the phone.

    • The back cover is very durable and will not break from some bending or pulling.

  4. KmhVhQM3ICT2WQuV

    • Looking at the top rectangular hump where the camera is located, use the plastic opening tool to remove the camera cover.

    • Using the plastic opening tool, apply pressure into any surrounding crease of the camera cover to remove it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
