Motorola Defy Earpiece Speaker Replacement

Using the screwdriver and the T-5 bit, unscrew the seven 5 mm screws around the outside of the phone.

Remove the back cover of the phone by sliding the bottom black button to the unlock position and lifting it up.

Use a plastic opening tool to pry the battery out of the phone.

Unscrew the two silver screws located at the top of the back of the phone.

Use a plastic opening tool to gently pry the midframe from the rest of the phone.

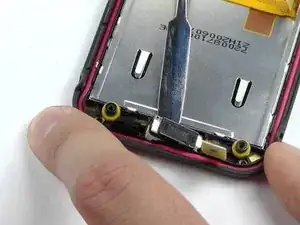

Use metal spudger to pry off the middle yellow flap carefully.

Use tweezers again to pry off the second yellow flap carefully.

The motherboard is the whole green board. Pry it off carefully with tweezers from the sides and place it aside.

Once the motherboard is removed, use either the metal tweezers or the metal spudger to remove the speaker by prying it as shown.
