Einleitung

Use this guide to replace the midframe on your Motorola Defy.

  1. x4UZl13HhfiVy3Nt

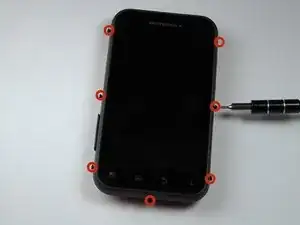

    • Using the screwdriver and the T-5 bit, unscrew the seven 5 mm screws around the outside of the phone.

  2. EgHV3orURmHiXpoS
    EgHV3orURmHiXpoS
    EVRA6oZSnEdAQ1ZN

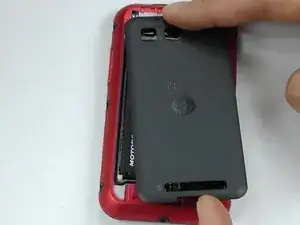

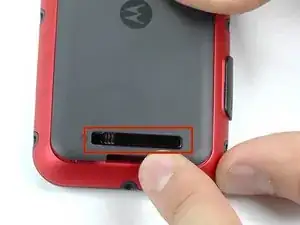

    • Remove the back cover of the phone by sliding the bottom black button to the unlock position and lifting it up.

  3. SlDigSwevLPPLWhc

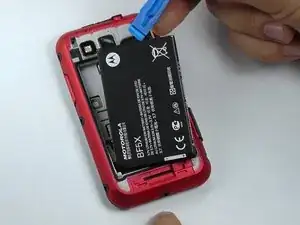

    • Use a plastic opening tool to pry the battery out of the phone.

  4. A64cv6elXDWVcSZs

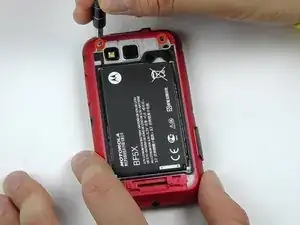

    • Unscrew the two silver screws located at the top of the back of the phone.

  5. he6IglspgJGumkyN

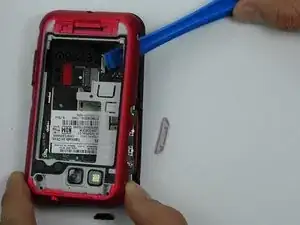

    • Use a plastic opening tool to gently pry the midframe from the rest of the phone.

Abschluss

To reassemble your device, follow these instructions in reverse order.
