Motorola Droid 2 Front Panel Replacement

Geschrieben von: Andrew Bookholt
  • Kommentare: 3
Motorola Droid 2 Front Panel Replacement

Schwierigkeitsgrad

Very difficult

Schritte

32

Zeitaufwand

Keine Schätzung

Einleitung

This guide will take you through the process of installing a new front panel on your Motorola Droid 2.

  1. AlFqkCThDZR5C4E5
    AlFqkCThDZR5C4E5
    kfkPSfLYokWQMXBp
    If1Ml2ioUeutMAFl

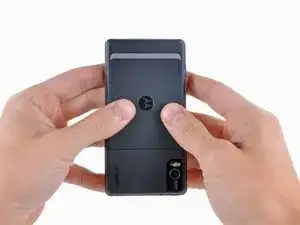

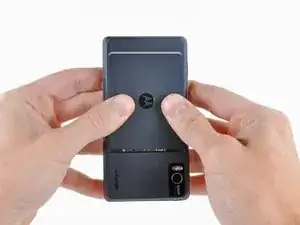

    • Slide the battery cover toward the bottom edge of the phone.

    • Remove the battery cover from the rear of the phone.

  2. hDqCVoZoonTPxyF1
    hDqCVoZoonTPxyF1
    DCLPZ6WYPOexqYHM

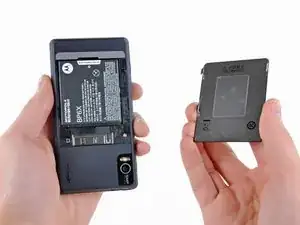

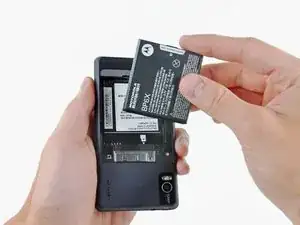

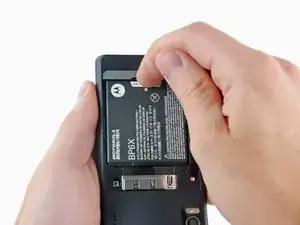

    • Lift the battery out of the Droid 2 from the edge closest to the bottom of the phone.

    • Remove the battery from the Droid 2.

  3. 5UUvlxTjmWWA1rXt
    5UUvlxTjmWWA1rXt
    AOKcMCyBv2BBDugV

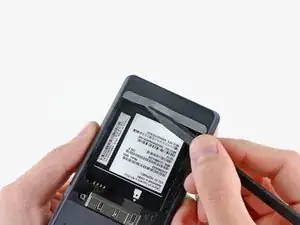

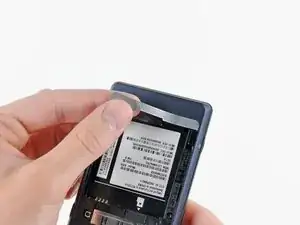

    • Using the tip of a spudger, peel up one corner of the silver ribbon below the battery compartment.

    • Peel the ribbon off the phone.

  4. ErBeSAIZve2UFOGV

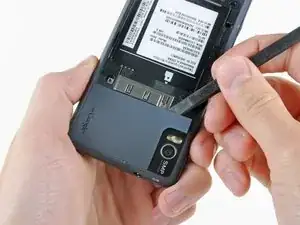

    • Insert the flat end of a spudger and pry the plastic camera cover up off the phone.

    • The thin plastic cover is attached to the phone with an adhesive. Work slowly and carefully.

  5. gismJLA4q1sKFrOn

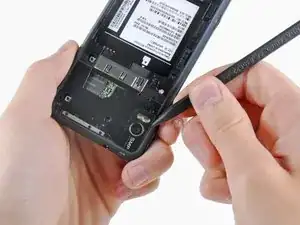

    • Use the tip of a spudger to remove the camera bezel stuck to the rear case.

  6. T1Z1AldK2ULBxgaK

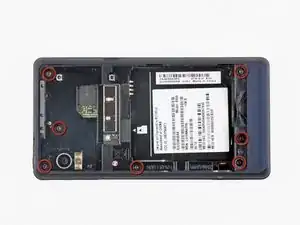

    • Remove the seven 5.5 mm T5 Torx screws securing the rear case to the inner case.

  7. g6AZRQVdlfrmeAYH

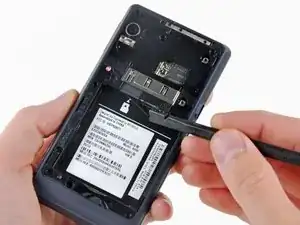

    • Insert the flat end of a spudger and pry downwards to release the plastic tab holding the rear case to the motherboard screw.

  8. yPGkCOPtGkOOVdrc

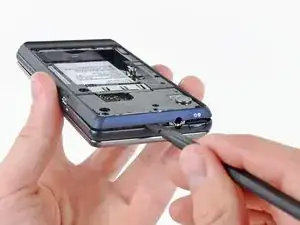

    • Gently insert a spudger between the rear case and front case at the top of the phone, near the audio jack.

    • Carefully pry the top edge of the rear case up from the rest of the phone.

  9. sfOtxX41DE1BZQYS
    sfOtxX41DE1BZQYS
    SxwbopTjmBpSFkoj

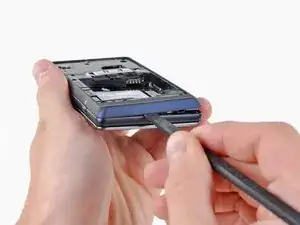

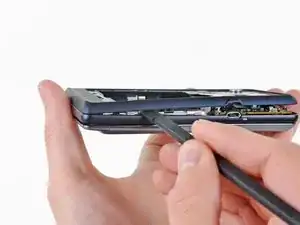

    • With the spudger still inserted between the rear case and front case, slide the spudger along the right edge of the device, moving toward the bottom, prying as you go.

    • Continue prying along the bottom edge of the device from right to left, freeing it from the front panel.

  10. COdNLuI5VNcCxDwE
    COdNLuI5VNcCxDwE
    LZTIqGd6KF22yTwC

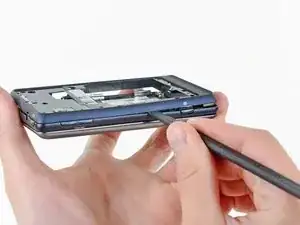

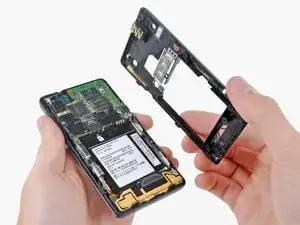

    • Continue prying the rear case from the front case along the left side, moving from bottom to top.

    • Lift the rear case up out of the phone.

    • At this point, the button covers on the side of the phone are free and may fall out if you tip the phone upside down.

  11. C1VsUEQkm6ZBOUse

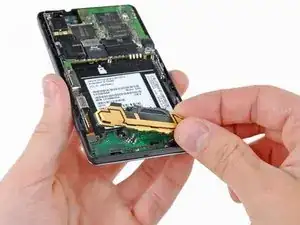

    • Carefully lift the speaker/antenna assembly up and out of the phone.

    • If you are re-assembling your phone, insert any power, camera, or volume buttons that may have fallen out at this point.

  12. 5BeplICFwOhwKfHv
    5BeplICFwOhwKfHv
    By2AMnrDLlqp2nH3
    OVO3OCU5pw4L1NUg

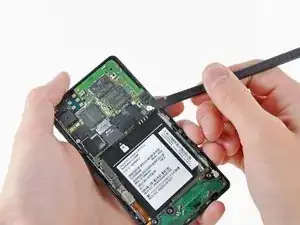

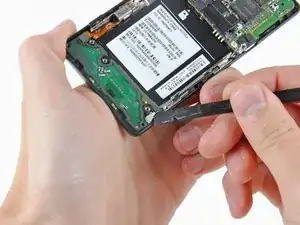

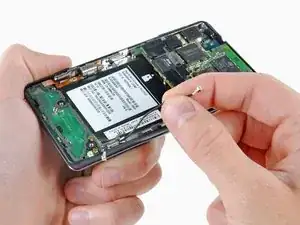

    • Use a spudger to pry the antenna cable connectors from their respective sockets on the motherboard and the speaker/antenna board.

    • De-route the antenna cable by pulling it out of the metal clips along the side of the front case.

  13. kVFK6SPZiJEvn6fR

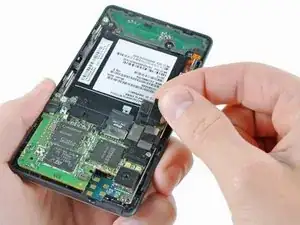

    • Peel the black rubber sheet covering the side button and display ribbon connectors on the motherboard.

  14. 6TebAqMrolgJLUd5

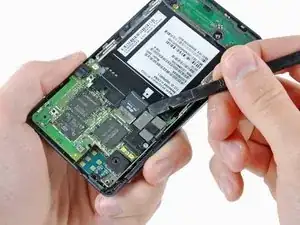

    • Disconnect the power button/volume button connector from its socket on the motherboard using the flat end of a spudger.

  15. 1VlvDWWTkDTdkcYU

    • Disconnect the display ribbon connector from its socket on the motherboard using the flat end of a spudger.

  16. UhEQtJZRjJwhHdtX

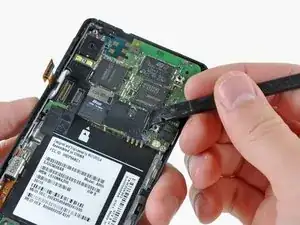

    • Use the flat end of a spudger to remove the small black plastic piece stuck to the battery connector.

  17. 5HRDYS2VUguOPO5Y

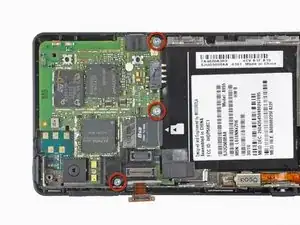

    • Remove three 3.8 mm T5 Torx screws securing the motherboard to the front case.

    • Don't attempt to remove the motherboard yet, it is still attached by the keypad ribbon connector.

  18. WtuHoe6HLd4HkNWC

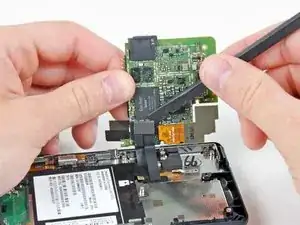

    • Carefully lift the motherboard from the front case and lay it next to the Droid 2, minding the keypad connector that is still attached.

    • Disconnect the keypad connector by prying it straight up off its socket on the motherboard.

    • Remove the motherboard from the Droid 2.

  19. UehwwTXQb1v1BcDE

    • Disconnect the camera button/vibrator connector by prying it straight up off its socket on the speaker board with a spudger.

  20. PnZyanXwpYoWsImI

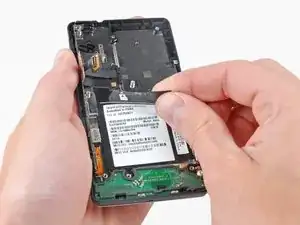

    • Remove the large sticker stuck to the inner face of the battery compartment.

  21. 2uJhF3YQEYfdQqEK
    2uJhF3YQEYfdQqEK
    KStsnDcEgVXOXfF6

    • Slide the phone open.

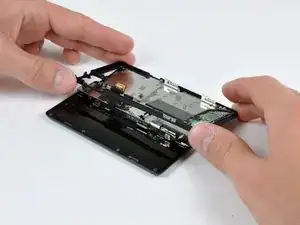

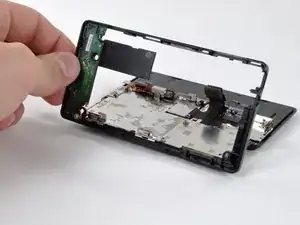

    • Lift up the edge of the black plastic rim that includes the speaker board from the side closest to the keypad.

    • Continue lifting the side of the rim until it is almost vertical, and wiggle it free from the back of the LCD assembly.

  22. sOTxGCvJuL5nPuCK

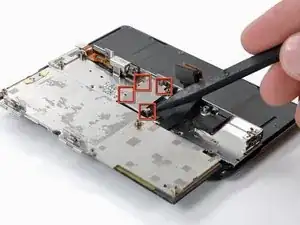

    • Remove the EMI shield by releasing the clips shown with the tip of a spudger.

  23. RCl1XhTxw5gMsWsp

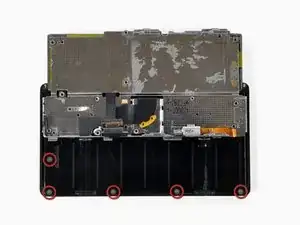

    • Remove the five 2.5 mm T3 Torx screws along the outer edge of the slider panel.

  24. Vs6tSeZCXwJYHVpW

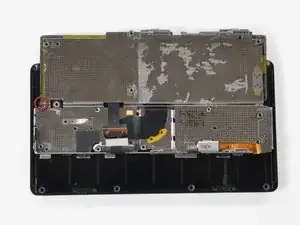

    • Slide the phone until a sixth screw is visible, as shown.

    • Remove the newly revealed 2.5 mm T3 Torx screw.

  25. oU4cF5ltOGWaUPd1

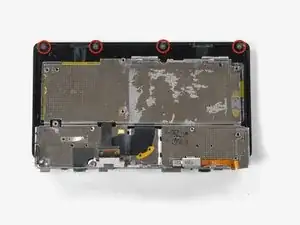

    • Continue sliding the phone in the same direction, past its "closed" position, until four more screws are revealed.

    • Remove the four 2.5 mm T3 Torx screws along the outer edge of the slider.

  26. bZuBM6tiSote1S4l

    • Return the phone to its normal "closed" position.

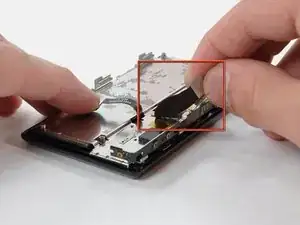

    • Peel the display ribbon up from the keypad's metal backing.

    • The ribbon cannot be completely removed yet, because it is attached to the back of the LCD.

    • At this point take extra caution as to not tear the ribbon cable.

  27. UAJyAClLSWcwkM3d
    UAJyAClLSWcwkM3d
    knok3GsNBRex56um

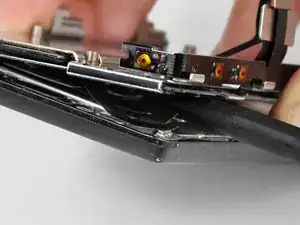

    • Insert a spudger between the back and front case of the display assembly, and peel the two ribbon cables off the two adhesive pads along the back case of the display assembly.

    • The location of the pads on the back case is shown. The top left corner of the case is the corner of the phone shown in the first picture.

  28. 55CkV6w2dOISBsRY

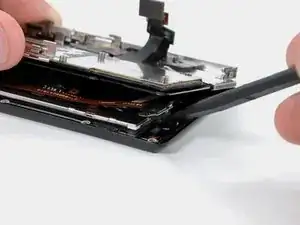

    • Use the flat end of a spudger to lift the board that contains the ambient light sensor and display data cable connector out of the screen housing.

  29. LeCR5oyspdoVH5F2
    LeCR5oyspdoVH5F2
    tCioh1ufO4YAxatQ

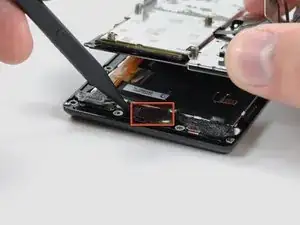

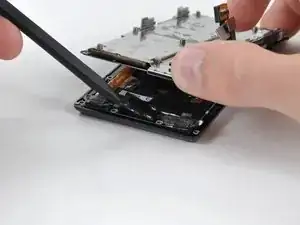

    • Use the tip of a spudger to lift the speaker out of the screen housing.

  30. nfMxpuhXPGeMsTNZ

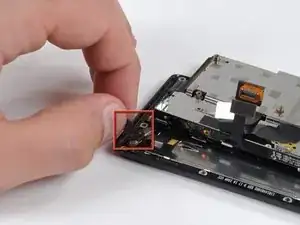

    • Peel off the black tape to reveal the front panel connector.

  31. mRsPIqqUZHDcTFLW

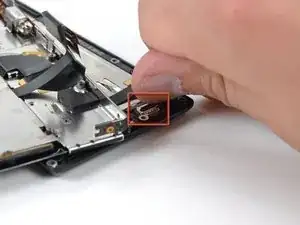

    • Remove the front panel ribbon cable from the ZIF connector on the board that is attached to the display ribbon.

  32. sbKvOLXQbDdBIY4V

    • Flip the phone over and remove the front panel.

Abschluss

To reassemble your device, follow these instructions in reverse order.
