Einleitung
A guide to replace your Droid's broken or malfunctioning camera.
Werkzeuge
-
-
Slide the battery cover downwards while applying pressure to the center of the battery cover with your thumb.
-
Lift and remove the battery cover out from the phone.
-
-
-
Use a spudger to lift and remove the black plastic screw cover at the top of the phone near the camera.
-
-
-
Using the tip of a spudger, peel up one corner of the gold ribbon beneath the battery compartment.
-
Peel the ribbon up off the phone.
-
-
-
Insert the flat end of a spudger and pry downwards to release the plastic tab holding the rear case to the motherboard screw.
-
-
-
Gently insert a spudger between the rear case and front case at the top of the phone, near the audio jack.
-
Carefully pry the top edge of the rear case up from the rest of the phone.
-
-
-
With the spudger still inserted between the rear case and front case, slide the spudger along the right edge of the device, moving toward the bottom, prying as you go.
-
Continue prying along the bottom edge of the device from right to left, freeing it from the front panel.
-
-
-
Continue prying the rear case from the front case along the left side, moving from bottom to top.
-
Lift the rear case up out of the phone.
-
-
-

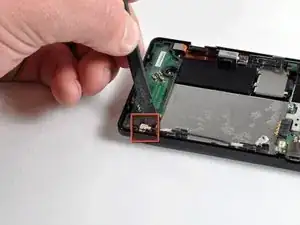

Use a spudger to pry the antenna cable connectors from their respective sockets on the motherboard and the speaker/antenna board.
-

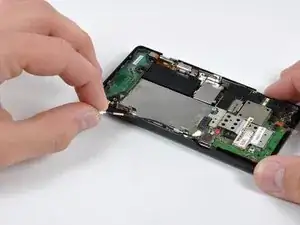

De-route the antenna cable by pulling it out of the metal clips along the side of the front case.
-
-
-

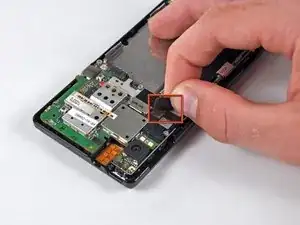

Peel the black tape covering the side button and display ribbon connectors on the motherboard.
-
-
-
Disconnect the power button/volume button connector from its socket on the motherboard using the flat end of a spudger.
-
-
-
Disconnect the display ribbon connector from its socket on the motherboard using the flat end of a spudger.
-
-
-

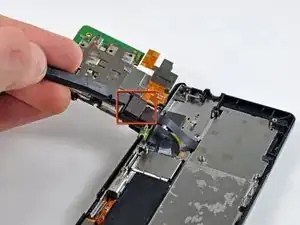

Disconnect the keypad connector by prying it straight up off its socket on the motherboard.
-

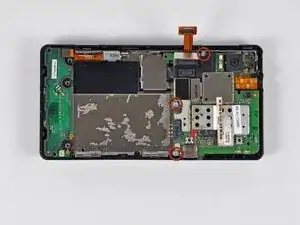

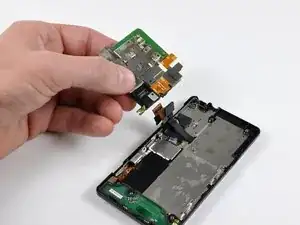

Remove the motherboard from the phone.
-
-
-

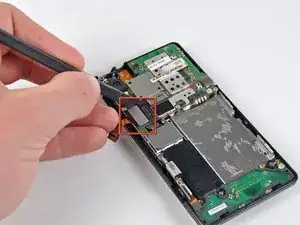

Disconnect the camera connector from its socket by prying it straight up with a spudger.
-

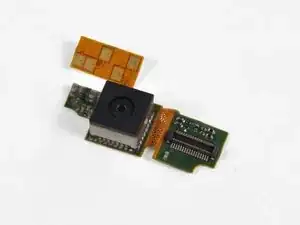

Remove the camera assembly.
-
To reassemble your device, follow these instructions in reverse order.
