Motorola Droid MAXX 2 Button Assembly Replacement

Geschrieben von: Burke Seggerman
  • Kommentare: 8
Motorola Droid MAXX 2 Button Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

15 Minuten

Einleitung

A guide on how to replace the volume and power buttons on a Motorola Droid MAXX 2 smartphone.

  1. cWZbypK6XXxttFjv

    • Insert a small pointed object into the hole on the sim card tray to eject the tray from the phone.

  2. HrRvDk3dO2oEYKBS

    • Pull the sim card tray up out of the phone

  3. fb2JXVgvKIVLEtdv
    fb2JXVgvKIVLEtdv
    Am3q12MVpMiDfEeE

    • Wedge your thumb into the indent located on the bottom left corner of the back cover and pull up to remove the back cover.

  4. RZmYbt4Sgoo55gBw

    • Remove the seventeen 3.2mm Torx T4 screws from the mid-frame.

    • These may be T3 screws. If you are having trouble unscrewing these, stop and try a T3 bit.

    These are actually T3 screws

    Kody Jordan -

    Wish I had noticed this BEFORE stripping all my screw heads… ugh!

    Alissa Carter -

    These are definitely T3 screws.

    Trey Crossan -

  5. Sg6vCOm3vPNOjOWP

    • Pull the mid-frame off of the phone.

    • Keep track of the on/off and volume buttons when you take the phone apart because they are likely to fall out when the halves are separated.

  6. Ky1HvRJKdDpnb6WL
    Ky1HvRJKdDpnb6WL
    FBeAreNRaD45gSeE
    GMEt4Bi1QJPgqevp

    • Remove the static tape covering the two connectors.

    • Use a spudger to disconnect the battery cables from the motherboard.

    • If battery has adhesive, use heat gun for one to two minutes to loosen it. Be careful of the points outlined in red when prying it up. Use guitar picks or a spudger to gently lift the battery and separate the adhesive.

    Just out of curiosity, does anyone know the purpose for the two very strong magnets?

    Rongwey -

  7. pL5XsRQNu3JiOb4s

    • Remove the disconnected battery from the phone.

    Where can I get a replacement battery for this model?

    Joel . Harness -

    The NFC pad has to be transferred to the new battery or it won’t charge correctly if at all. The black appears to be graphite. No matter how carefully I picked the charging coil off, the black still came off in places. Most of it was still intact so the battery charged to 100% (Yay!) and although the battery discharged at a normal rate, Asurion Battery Health app shows it working at only 637% which, oddly enough, is about the amount of graphite that was scraped off during the removal process.

    Rongwey -

  8. WGG4AAfRYv6k5ECy
    WGG4AAfRYv6k5ECy
    YmcPlVf3KGpYsAOs

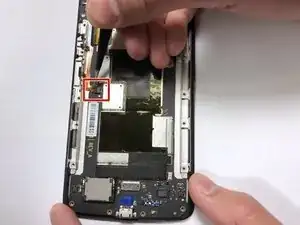

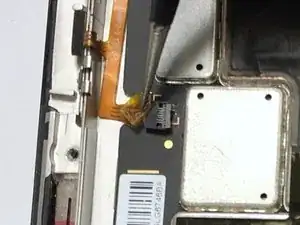

    • Peel back the orange adhesive covering the ZIF connector.

  9. RCV6DjULokQOBYcP
    RCV6DjULokQOBYcP
    WWSWkpvNrv3SPZVC

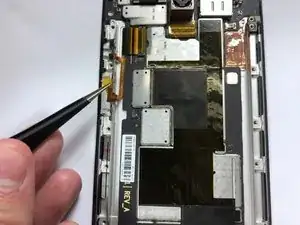

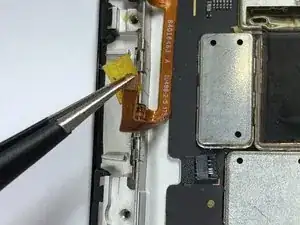

    • Lift the black tab on the ZIF connector up.

    • Pull the ribbon cable out of the ZIF connector.

    Careful. The zip connector is extremely fragile.

    David Gordon -

  10. wTyfqZGkaKCY23Zo
    wTyfqZGkaKCY23Zo
    2BnHdAeLKpm55SNJ
    Yx3GIF5KfTMtHV4H

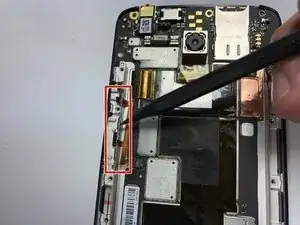

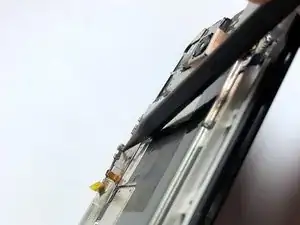

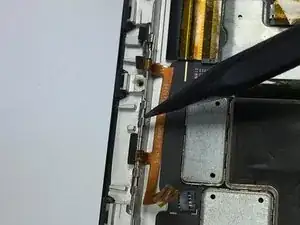

    • Use the plastic spudger to loosen the metal prongs that hold the button assembly onto the phone.

  11. k1y4VDHiTWXViNTG

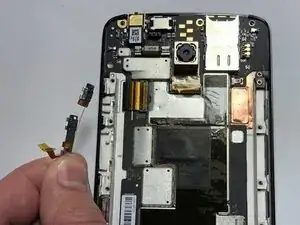

    • Pull the button assembly up and out of the phone.

Abschluss

To reassemble your device, follow these instructions in reverse order.
