Motorola Droid Mini Camera Replacement

Geschrieben von: Alec Fales
  • Kommentare: 3
Motorola Droid Mini Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 - 30 Minuten

Einleitung

The camera or flash may stop functioning or require eventual replacement. Here is a guide that offers that.

  1. fh2f6qbaiY3jZQue
    fh2f6qbaiY3jZQue
    QAfpfKqO2xjFSI4f

    • Pull out the volume keys using the iFixit opening tool.

  2. x2jqEeCpjfvu3hKl
    x2jqEeCpjfvu3hKl
    qklQHpTvUFWQMwaQ

    • Pry off the back case gently using the iFixit opening tool.

    • Make sure to go around the entire perimeter of the case.

    I want to buy back casing of Motorola Altra mini

    Farah Azeem -

  3. dQysBsuvwv4AVMgu

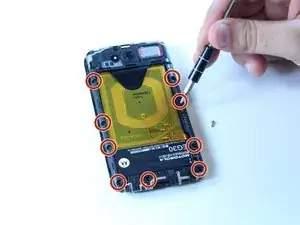

    • Use a T5 Torx screwdriver to unscrew the nine silver screws from the housing frame.

  4. Vftoxs15fS5SdJDP

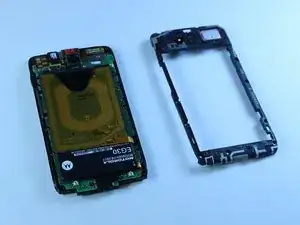

    • Carefully separate the housing frame from the motherboard.

  5. vErM4T6ZkWLXo3EE
    vErM4T6ZkWLXo3EE
    DSHWXRE6MnvQWv5p

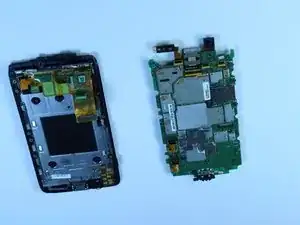

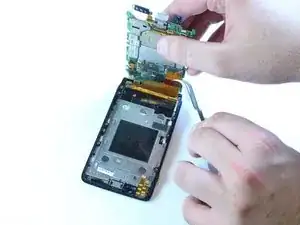

    • Carefully use the tweezers to separate the motherboard from the screen.

  6. rgpgB5bFYoolTOud
    rgpgB5bFYoolTOud
    AOZUMMJBUmZkKQpY

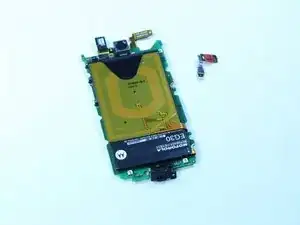

    • Carefully use the tweezers to remove the flash motherboard.

  7. Ddy1IRo4NpHLFhwS
    Ddy1IRo4NpHLFhwS
    Zp1xd1bSPBpXKDUP

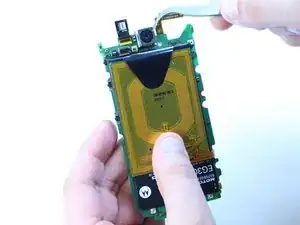

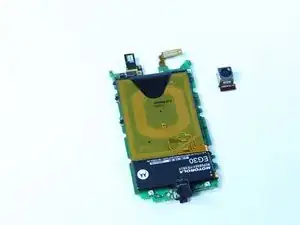

    • Use tweezers to remove the camera from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
