Motorola Droid Mini Front screen Replacement

Geschrieben von: Alec Fales
  • Kommentare: 5
Motorola Droid Mini Front screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

15 - 20 Minuten

Einleitung

  1. fh2f6qbaiY3jZQue
    fh2f6qbaiY3jZQue
    QAfpfKqO2xjFSI4f

    • Pull out the volume keys using the iFixit opening tool.

  2. x2jqEeCpjfvu3hKl
    x2jqEeCpjfvu3hKl
    qklQHpTvUFWQMwaQ

    • Pry off the back case gently using the iFixit opening tool.

    • Make sure to go around the entire perimeter of the case.

    I want to buy back casing of Motorola Altra mini

    Farah Azeem -

  3. TSXY1WXVlbUyJgnE
    TSXY1WXVlbUyJgnE
    uQypIHrhlLjEguIf

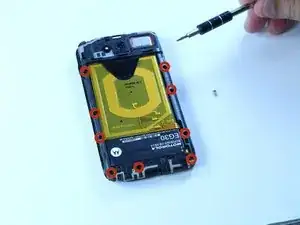

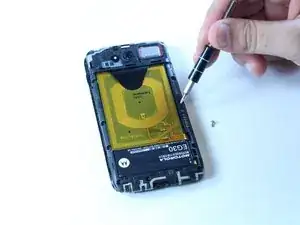

    • Use the T5 screw head to unscrew the 9 silver screws from the housing frame. Carefully separate the housing frame from the motherboard.

  4. vhQCIjfIACc4YfKN
    vhQCIjfIACc4YfKN
    EVAhDLG5qxuC1wwI
    vvC4URGh2jMmLXMV

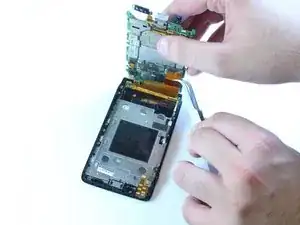

    • Carefully use the tweezers to separate the motherboard from the screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Alec Fales

Mitglied seit: 09/10/14

337 Reputation

4 Kommentare

This guide is inaccurate in essentially every step.

A few examples:

1) there are 13 screws to remove the back housing

2) an additional 2 screws to remove the motherboard

3) fails to mention transferring power button and ear speaker

robertanthonycastillo -

Just replaced a cracked screen on this model. This guide is pretty misleading. In addition to all the the things missing that the last commenter mentioned, it entirely fails to detail the most crucial part: replacing the screen. For which task you need a heat gun (hair dryer will do), metal spudger, replacement screen, and 1mm adhesive tape. I recommend this video to get a sense of what is actually involved: https://youtu.be/Q2tlwlHpZ04

Nate Rawson -

Horrible guide. Change the title to "how to partially remove screen"

Lee -

I used the guide below to replace/re-attach the LCD and digitizer into the front frame. Sat the phone face down on a paper towel with books on it, while on a 3d printer bed heated to 80 degrees C, for total of about 20 minutes (IR thermometer measured screen/frame at around 65C). Will see how well this holds up…
