Motorola Droid Mini Loudspeaker Replacement

Geschrieben von: Arielle
  • Kommentare: 2
Motorola Droid Mini Loudspeaker Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

3 - 5 Minuten

Einleitung

The loudspeaker is responsible for the sound produced by your Droid Mini. When your speaker malfunctions or the sound is distorted, it is probably time to replace the loudspeaker.

  1. fh2f6qbaiY3jZQue
    fh2f6qbaiY3jZQue
    QAfpfKqO2xjFSI4f

    • Pull out the volume keys using the iFixit opening tool.

  2. x2jqEeCpjfvu3hKl
    x2jqEeCpjfvu3hKl
    qklQHpTvUFWQMwaQ

    • Pry off the back case gently using the iFixit opening tool.

    • Make sure to go around the entire perimeter of the case.

    I want to buy back casing of Motorola Altra mini

    Farah Azeem -

  3. emerM3GLQRYG2PyN
    emerM3GLQRYG2PyN
    OYTDjjWNAIbtcUnM

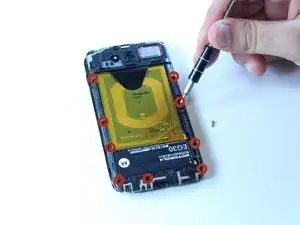

    • Use the T5 screw head to unscrew the 9 silver screws from the housing frame.

    • Carefully separate the housing frame from the motherboard.

  4. 2C6QJZLmqdeuCrii
    2C6QJZLmqdeuCrii
    itLjHk6JWQLiYanl

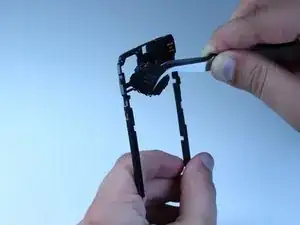

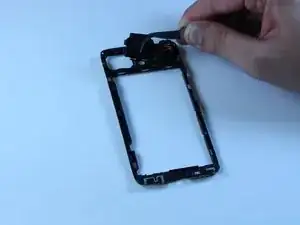

    • Use the tweezers to gently push the loudspeaker out of the housing frame.

Abschluss

To reassemble your device, follow these instructions in reverse order.
