Motorola Droid Pro Camera Replacement

Geschrieben von: Richard Bellizzi
  • Kommentare: 0
Motorola Droid Pro Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

15 Minuten

Einleitung

Before continuing make sure you power down your device and work in a clean area. Also wear a static band to prevent damages to your device.

  1. jjZk36VvEuLuQsaL

    • Remove the back cover using the thumb tab located on the bottom of the phone.

  2. oNCJjTkHNMIvMdEC
    oNCJjTkHNMIvMdEC
    L5odJeNFannATFdO

    • Remove the battery using the thumb tab.

  3. tKRs3wDitb5gs4EV
    tKRs3wDitb5gs4EV
    Nq34AeJWpIHOJjP2

    • Using a T4 Torx driver, remove the eight 4 mm back panel screws.

  4. GbDgpdXcaaTdbKME
    GbDgpdXcaaTdbKME
    XsVPexLrXDJCImWR
    SNfnJQGVZuYDctRG

    • Use a plastic opening tool to open the phone along the sides between the front panel and the chrome trim.

    • It is held together by small clips that lock in. You may have to use extra force to unlock them.

    • Go around on all sides of the phone, unlocking the clips. Then pull the back panel off.

  5. oAVSRQQlyFYXVFOr
    oAVSRQQlyFYXVFOr
    SgUAK1TLmeVBlLga

    • Gently lift the SD & SIM card board (PCB) as shown.

    • There is a ribbon cable attached underneath. Gently pull the PCB board away from the phone and it will detach easily.

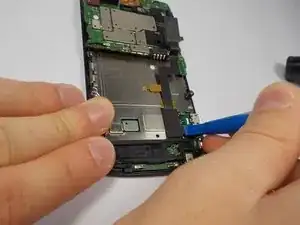

  6. LgahaZ2DOHRDSLME
    LgahaZ2DOHRDSLME
    KESQ64W1WcvArWEp

    • Use your plastic opening tool to disconnect the motherboard/keyboard ribbon cable.

    • There are small tabs on the side of the connectors to wedge your tool under.

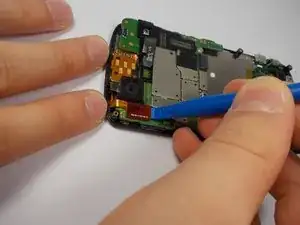

  7. kaUaVKITZe4BerSK
    kaUaVKITZe4BerSK
    bXjWvDoLk61WVITA

    • Use your plastic opening tool to disconnect the two ribbon cables at the top of the phone.

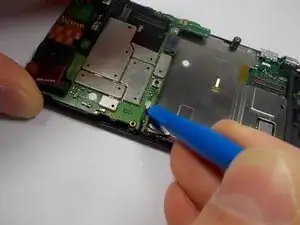

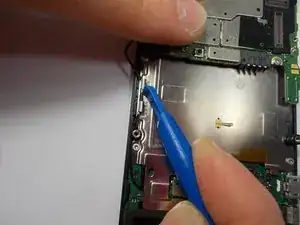

  8. CIBwA4Sygr3aKUH1
    CIBwA4Sygr3aKUH1
    psSBjQEPjOdLqYWS

    • Disconnect the 2nd keyboard connector from the motherboard and remove it from its side holders.

    • This cable is fragile so be careful when disconnecting and moving it around.

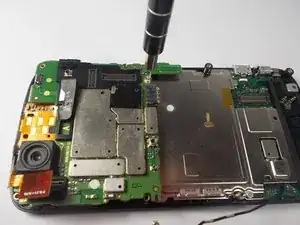

  9. Is2IEEXpOCYAAA6y

    • Use a T5 Torx Screwdriver to unscrew the 2mm screw.

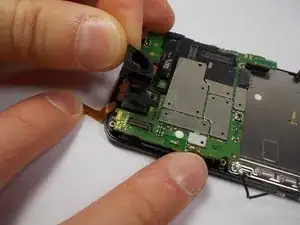

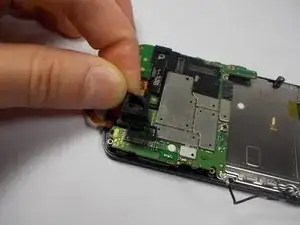

  10. aOQiaW3VD4poeYCx
    aOQiaW3VD4poeYCx
    GRNJ1FPtXEclTPfv
    VFK1pCsYNWkPcl6J

    • Remove the camera's rubber seal by pulling it off. It is not connected to anything.

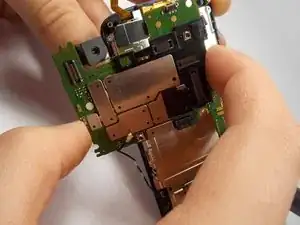

  11. BCSwNPSsyo6Stqji
    BCSwNPSsyo6Stqji
    rGUbAULBbVbQWCBh

    • To remove the motherboard, pull it to the side. The camera that is connected to the motherboard does not pull straight up and out from its holder.

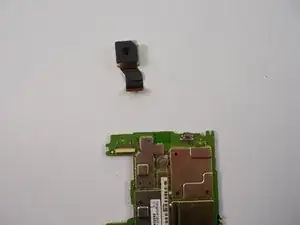

  12. VKnex5yDslmOnC2G
    VKnex5yDslmOnC2G
    wAfUK1gTTLxOn2kc
    eu1PimP5DWCrCDri

    • The camera is located on the back side of PCB board.

    • Flip the board over and you will see that the camera is connected by a ribbon cable.

    • Unlock the cable by using a plastic remover tool then pull the camera out.

    • Insert the new camera and re lock the ribbon cable.

    • Do not use excessive force and make sure the cameras ribbon cable gets properly re seated.

Abschluss

To reassemble your device, follow these instructions in reverse order.
