Motorola Droid Pro SD Card/SIM Card PCB Board Replacement

Geschrieben von: Peter Cakounes
  • Kommentare: 0
Motorola Droid Pro SD Card/SIM Card PCB Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

10 Minuten

Einleitung

Before continuing through the replacement process make sure you power down your devices and work in a clean area free of dirt. Also use a static band so you don't damage your device.

  1. 5xOXmyxsygXDdfYI
    5xOXmyxsygXDdfYI
    Hk4BGX3DyqnegEpk

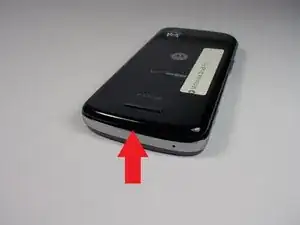

    • Remove the back cover and battery by using the thumb tabs.

  2. A24dW41fiVFwYCrL

    • Unscrew the 8 back panel screws using the T4 Torx screwdriver.

  3. xFA22itfKT25vSu3

    • Use a spudger to open the phone along the sides between the back panel and the chrome trim.

    • It is held together by small clips that lock in. You may have to use a little force to unlock them.

    • Go around on all sides then pull the back panel off.

  4. IyPnCli5TTU4YxE1
    IyPnCli5TTU4YxE1
    exvCBYSBskROf4jO

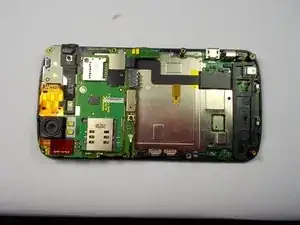

    • Gently lift the SD & SIM card board (PCB) as shown in the following pictures.

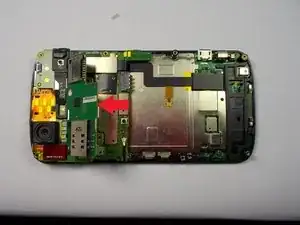

    • This will expose the ribbon cable attached to the board and another ribbon cable for the mother board. Remove them both using the spudger.

    • Once the small one is removed the small board can be pulled off.

Abschluss

To reassemble your device, follow these instructions in reverse order.
