Motorola Droid Turbo Front Facing Camera Replacement

Geschrieben von: Luis Arangu
  • Kommentare: 7
Motorola Droid Turbo Front Facing Camera Replacement

Schwierigkeitsgrad

Difficult

Schritte

7

Zeitaufwand

10 Minuten

Einleitung

Use this guide to replace the front-facing camera on your Motorola Droid Turbo.

  1. AXEePnT6RB6V26sV

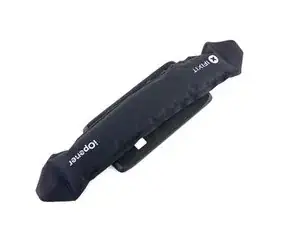

    • Prepare an iOpener and lay it over the rear case to soften the adhesive on securing the rear case to the phone.

    This di not work; I had to use a blow dryer.

    Caroline Downie -

  2. tCZUL1xPGuWG2N6U
    tCZUL1xPGuWG2N6U
    IjXaZOLUXmbQ2ebl

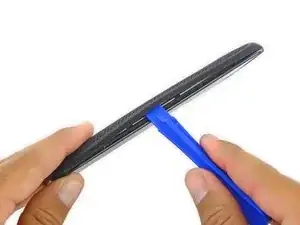

    • Use a plastic opening tool to pry the rear case off of the rest of the device.

    • Remove the rear case.

    • The wireless charging coil may try to stick to the rear case, so make sure to remove it from the case before fully separating the rear case from the rest of the device.

    I had to go around the case, starting on the non-button side, around the top and then the other side. This, unfortunately, pulled on the rear case, pressed the power button and turned the device back on. I would suggest starting on the button side and going around.

    Ryan Helinski -

  3. k2MAinY3olQTigXK

    • Remove the midframe bezel.

    The next immediate step should be to remove the cable for the battery from the motherboard, lower left corner. That will keep you from accidentally turning the phone on while working with it.

    decker5 -

  4. ccCTRolaCRGRQo5c

    • Remove the four Torx T5 screws securing the midframe plate.

    Step 4, there are also 2 T shaped tabs on the sides locking the mid frame plate. Above them you can see an angled hole where you can insert a paper clip to push them out and up to unlock them.

    Mike Mangiaruca -

    The WiFi on the Turbo I’m working on has stopped working. The phone was reset to factory to see if this would fix it after all other try-this-first methods to fix had failed. I opened it to check there and find nothing apparently wrong.. No bent connectors or dirty pins. Any suggestions? I started to clean this section with alcohol but decided I’d better ask first. Any suggestions?

    Rongwey -

  5. iqXC3OOKukmQ3LPp

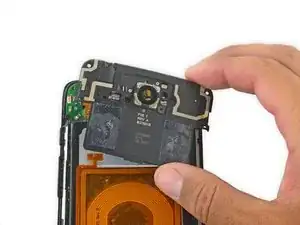

    • Remove the midframe.

    There's two clips to the left and the right of the midframe. Use a SIM tool and insert them into the holes above the clips, and push the clips out from the inside. Once both have been pushed the midframe is released.

    rkarnes1988 -

    Many ANY thanks for that additional tip. Rather important!

    Nate Baxley -

  6. EXLtEloOVHMOgUGJ
    EXLtEloOVHMOgUGJ
    MYFqkw2ffY2JaKUS

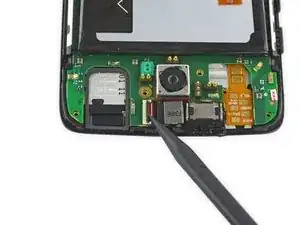

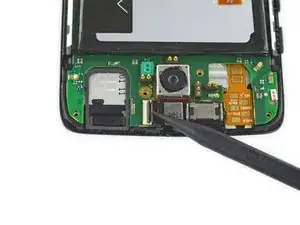

    • Use the pointed end of a spudger to flip up the black retaining flap of the front facing camera's ZIF connector.

  7. 5BQO6DmLXLgR5JfX
    5BQO6DmLXLgR5JfX
    fCgZtfEUhEJsLQS3

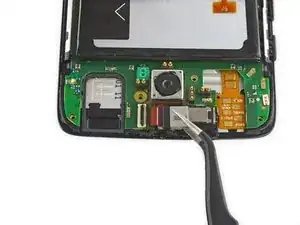

    • Remove the front-facing camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
