Motorola Droid Turbo Motherboard Replacement

Geschrieben von: Luis Arangu

Kommentare: 22

Motorola Droid Turbo Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

Keine Schätzung

Einleitung

Use this guide to replace the motherboard on your Motorola Droid Turbo.

Werkzeuge

Ersatzteile

Droid Turbo Conductor

Schritt 1

Prepare an iOpener and lay it over the rear case to soften the adhesive on securing the rear case to the phone.

This di not work; I had to use a blow dryer.

Caroline Downie - 27/11/17

Schritt 2

Use a plastic opening tool to pry the rear case off of the rest of the device.
Remove the rear case.
The wireless charging coil may try to stick to the rear case, so make sure to remove it from the case before fully separating the rear case from the rest of the device.

I had to go around the case, starting on the non-button side, around the top and then the other side. This, unfortunately, pulled on the rear case, pressed the power button and turned the device back on. I would suggest starting on the button side and going around.

Ryan Helinski - 23/03/19

Schritt 3

Remove the midframe bezel.

The next immediate step should be to remove the cable for the battery from the motherboard, lower left corner. That will keep you from accidentally turning the phone on while working with it.

decker5 - 24/05/18

Schritt 4

Remove the four Torx T5 screws securing the midframe plate.

Step 4, there are also 2 T shaped tabs on the sides locking the mid frame plate. Above them you can see an angled hole where you can insert a paper clip to push them out and up to unlock them.

Mike Mangiaruca - 14/03/17

The WiFi on the Turbo I’m working on has stopped working. The phone was reset to factory to see if this would fix it after all other try-this-first methods to fix had failed. I opened it to check there and find nothing apparently wrong.. No bent connectors or dirty pins. Any suggestions? I started to clean this section with alcohol but decided I’d better ask first. Any suggestions?

Rongwey - 27/01/20

Schritt 5

Remove the midframe.

There's two clips to the left and the right of the midframe. Use a SIM tool and insert them into the holes above the clips, and push the clips out from the inside. Once both have been pushed the midframe is released.

rkarnes1988 - 05/05/17

Many ANY thanks for that additional tip. Rather important!

Nate Baxley - 17/06/17

Schritt 6

Use the point of a spudger to pop up the battery connector.

When you’re doing this step in reverse to attach the new battery, be sure that you fold over the connector strip like it is in this image so that you’re not trying to snap in the new connector upside-down.

Darren Smith - 11/11/18

Yes. I did the same thing myself.

Ryan Helinski - 23/03/19

Schritt 7

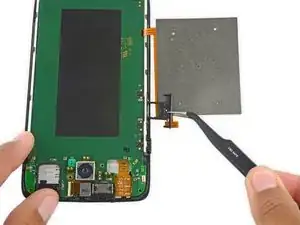

Fold the wireless charging coil away from the battery.

Pry the nub at the top of the wireless charger from the battery first, then use a playing card to slide between the battery and the wireless charger.

rkarnes1988 - 05/05/17

Actually, now that I think about it, you don't need to do this step at all.

rkarnes1988 - 05/05/17

My charging coil was really on there. I used two of the blue opening picks to separate the adhesive. Playing card sounds like a good idea too.

Griffin - 06/10/17

FYI if you damage the flex harness it will prevent the phone from charging.

Denny - 10/08/19

When prying up the charger, make sure to get under the adhesive backing attaching it to the battery first and not separate the backing from the charger itself. Otherwise this will cause tearing of the grey surface backing on the charger and possibly rip into the orange membrane itself.

Justin - 20/09/20

Schritt 8

Use a spudger to gently pry the battery up from the rest of the device.
The battery is secured with some moderate adhesive, so some force may be necessary.

This step isn't necessary, the mobo comes out even without removing the battery.

rkarnes1988 - 05/05/17

This is in the battery replacement tutorial, why would you want to remove the MOBO along with the battery? I’d consider the battery removal quite essential if the goal is to replace it.

Chris - 25/11/17

Only pry from the near sides - do not reach underneath to pry the far side under. You’ll damage the black coating over the metal plate on the motherboard…

kempenbills - 10/02/18

so.. I did this. How do I fix it?

andie.shop.xd - 10/12/18

What is the black coating for?

Denny - 10/08/19

Gently pry evenly along both long sides of the battery when removing. The factory adhesive, at least on my phone, was applied in two strips near both edges beneath the long sides of the battery (not applied near the center or along short sides of battery). I made the mistake of working one side loose, thinking I could just slowly lift the battery free of the remaining adhesive on the opposite side. The battery was coming out but actually began bending near the opposite edge because the adhesive held tight. I finished up by gently prying the side still held by adhesive and the battery came free. I did not damage the black coating on the mobo beneath the battery.

Alan - 27/08/19

That black layer appears to be graphite and serves to be a heat shield. If it’s just damaged, you should be able to push it gently back together and continue on with your work.

Rongwey - 14/02/20

Schritt 9

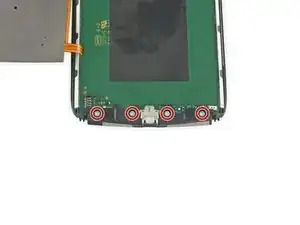

Remove the four Torx T5 screws securing the lower antenna board to the motherboard.

Schritt 10

Remove the lower antenna board.

Schritt 11

Remove the SIM card holder/volume button rocker.

Schritt 12

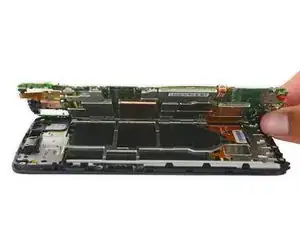

Carefully lift up the motherboard to expose the display connector.

Schritt 13

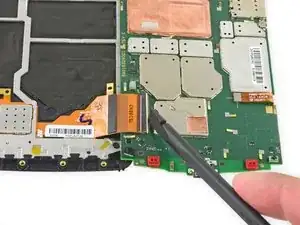

Use the flat end of a spudger to flip up the retaining flap on the display ZIF connector.
Pull the display ribbon cable free of the connector.

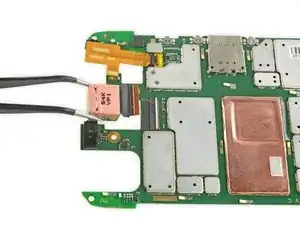

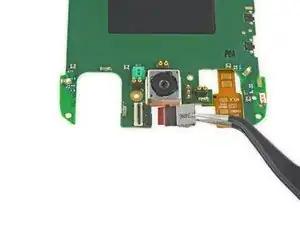

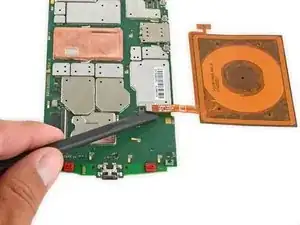

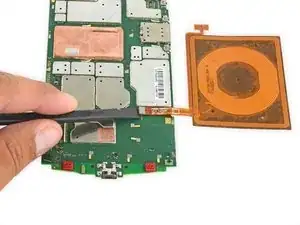

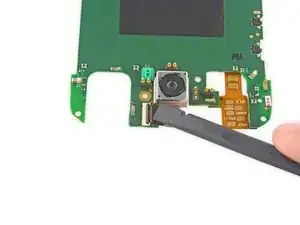

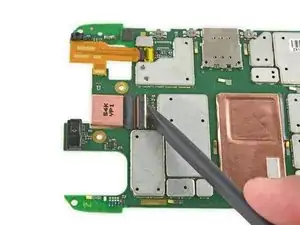

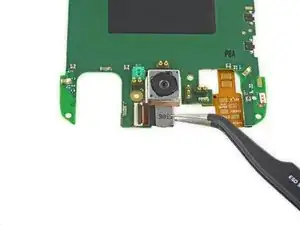

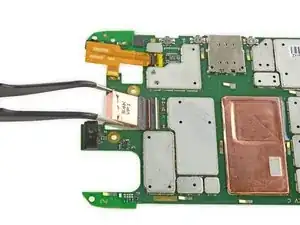

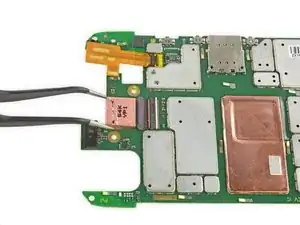

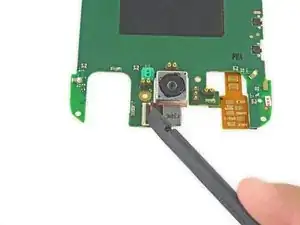

At this point, the motherboard has been removed from the phone. The following steps will detail removing the wireless charging coil, as well as both cameras so that they can be transferred to the replacement motherboard.
