This guide will show you how to replace the screen as your may be scratched or cracked. This process does require tools, a heat gun in particular. Be careful to not heat your screen for too long as it can damage the electronics.

  1. ebnJdZPuLRRIhytN
    ebnJdZPuLRRIhytN
    tsYgG3GAKU5CAO1h
    bLvurVTa3RCJuCSt

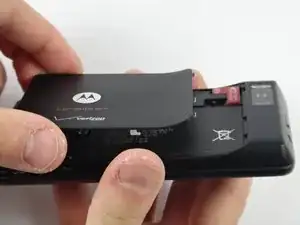

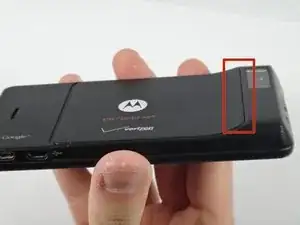

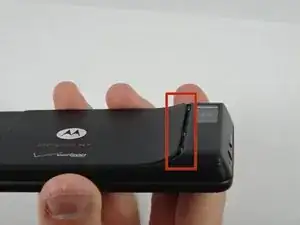

    • Slide the plastic case off of the back of the phone, exposing the battery.

  2. xBgZ1osQKyeMQDth
    xBgZ1osQKyeMQDth
    M2W6hKB1SXYAOXZe
    rCZmbZfKgmZDjsyP

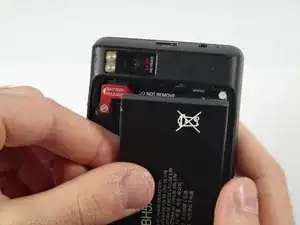

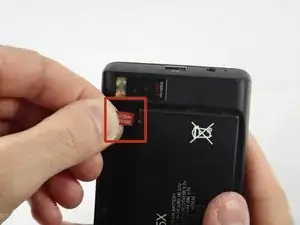

    • Pull up on the red battery release tab and pull the battery out of the phone.

  3. xSDGXenxdu5JO5Sa
    xSDGXenxdu5JO5Sa
    ZbWjCDxNwdoHgHFL

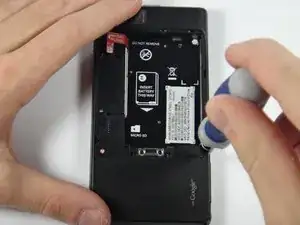

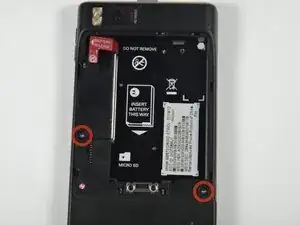

    • Remove the circled screws using a T-5 torques. These screws will be 4.3 millimeters in length.

    • Be careful to not strip any screws.

  4. cDeOsCiDkQpXGFbD
    cDeOsCiDkQpXGFbD
    peErbR6Ya5Sv3Cvo
    11VgUwvlpqHmIKKJ

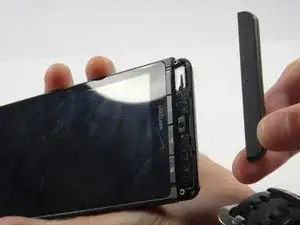

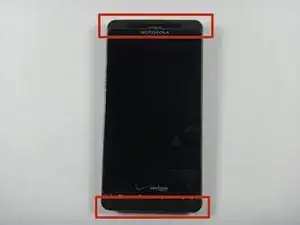

    • Using a prying tool, snap off the front casing on the top and bottom of the phone.

    • Be careful not to lose the small rubber piece that sits over the microphone.

    Be careful not to lose the small rubber piece that sits over the microphone.

    Jeanine Gattas -

  5. dIALZTVVAXWawKby
    dIALZTVVAXWawKby
    rZKIkLFjEbfsZBPa

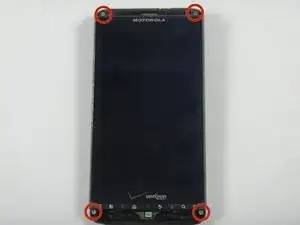

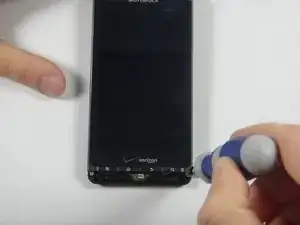

    • Remove the circled screws using a T-5 torques.. These screws should be 5.8 millimeters in length.

  6. QZZPqRQUKyn4w5jZ
    QZZPqRQUKyn4w5jZ
    SLPVGoVocv5Sftbm
    wYBCr46XPssQQELj

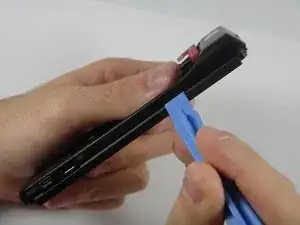

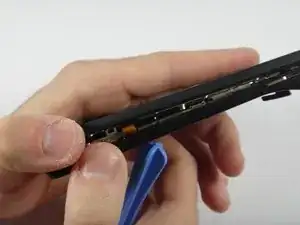

    • Using a plastic opening tool, snap open the phone. It should separate into a front piece with the hardware and a plastic backing.

  7. hRXQJL1anFlXX1qN
    hRXQJL1anFlXX1qN
    WIGaomTdTB2TQVv5
    virj6PlKTSQmZBsO

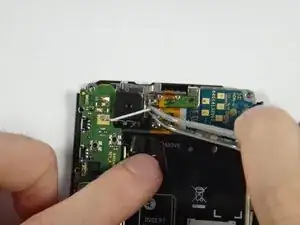

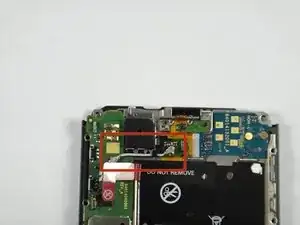

    • Using tweezers, remove the white wire at the top of the phone near the camera.

  8. BcKOlrLRkaIT1pnF
    BcKOlrLRkaIT1pnF
    GXJxBlutm5CLsM5n

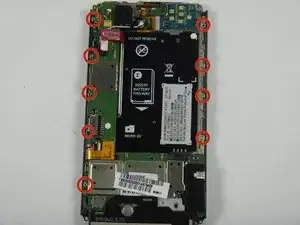

    • Remove these nine screws using a T-3 torques. These screws should be 2.40 mm in length

  9. LZZgPaEhNy1uXUUr
    LZZgPaEhNy1uXUUr
    32hfMNAMhvb6YkC1

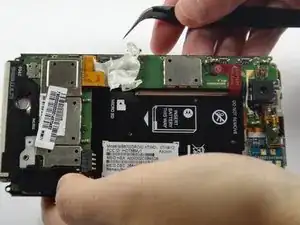

    • Using tweezers, removed the white electrical tape on the motherboard.

  10. mbhcsmBioNVqiERw
    mbhcsmBioNVqiERw
    DHRLB1VaWmKRRRxm

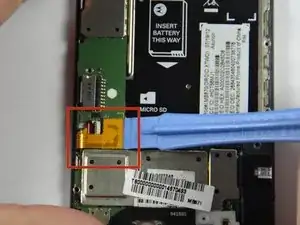

    • Using the plastic opening tool, lift up to remove the connector.

  11. thvAeO3dlxVZlYyd
    thvAeO3dlxVZlYyd
    RPg5yB4gKwdwLIc4

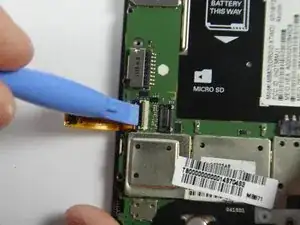

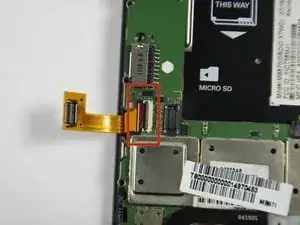

    • Using a pry tool, lift the jawbone connector.

  12. iGNKjWgW1ajXNwHE
    iGNKjWgW1ajXNwHE
    dPyemRRXPKYpcjGi

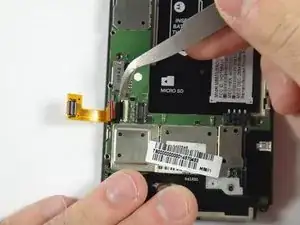

    • Using tweezers, carefully disconnect the cable connector by pulling the cable out.

  13. TLBbElEjIYDqlOUe
    TLBbElEjIYDqlOUe
    RaGiVdsoBZJX3aVv
    tkPYgCTJfAfWoAPB

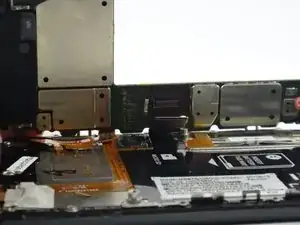

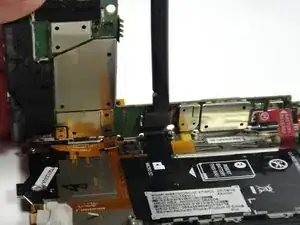

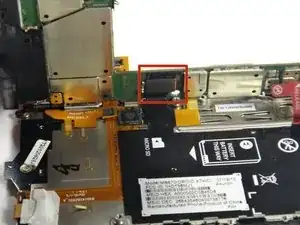

    • Use a spudger to disconnect the cable connector.

  14. ax5IZNLRNjSpNhTe
    ax5IZNLRNjSpNhTe
    uWV3J6UZuxOjN4WG
    WnU2FtHUeRNEFHRq

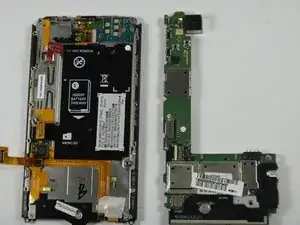

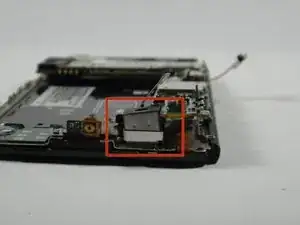

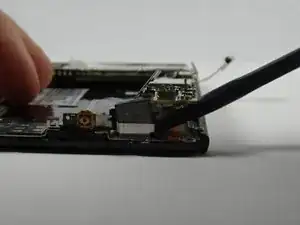

    • Using a spudger, remove the camera. Lift up the motherboard and slide the spudger under the camera.

  15. EbWGBZsbDWWK6QEH
    EbWGBZsbDWWK6QEH
    KQMfJUPBCQWHBxgj

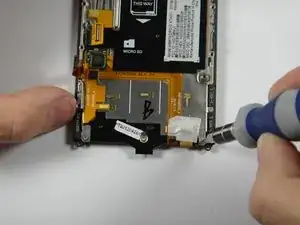

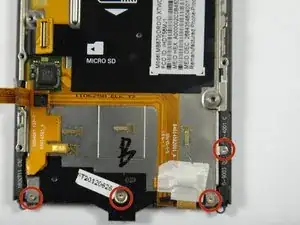

    • Remove the 4 screws using a T-3 torques.. These screws are 2.40 mm in length.

    • Be careful to not strip the screws.

  16. UaQ5EFvl4CMmbbNM
    UaQ5EFvl4CMmbbNM
    aqxOjAZtdEclB1nc
    KMDoxQbNr3tXxp1R

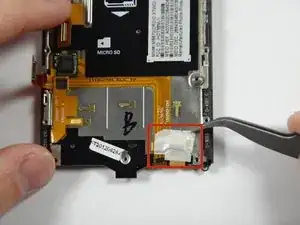

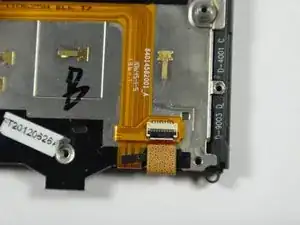

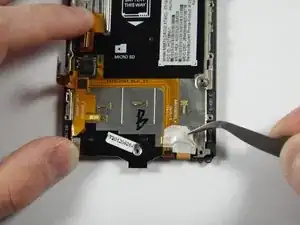

    • Using tweezers, remove the white tape to reveal the connector

  17. baK6iWYKIrdVLU3I

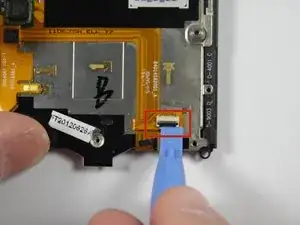

    • Using the plastic opening tool, lift the jawbone connector.

  18. WApYRQNCqIpuLdrH
    WApYRQNCqIpuLdrH
    eAs2UWwCMKIjX16S

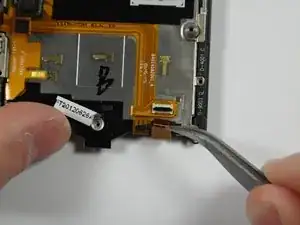

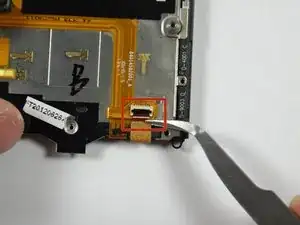

    • Using tweezers, remove cable from the connector

  19. rDt6ICAvICR1wSwO
    rDt6ICAvICR1wSwO
    akZ2KKHmY1uSHMOG
    ZJLm3bGBEOJdFpw3

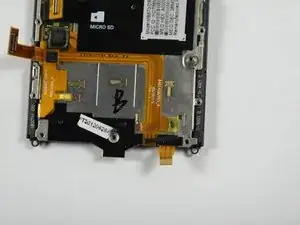

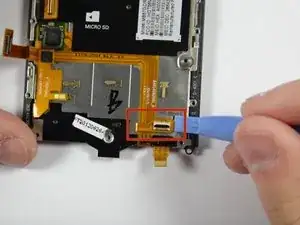

    • Using a plastic opening tool, lift the connector from the device

  20. pYB5jc6qnQgHPnau
    pYB5jc6qnQgHPnau
    3h53TDlo2JoyQNSZ
    KpjgBGP11NJnIevQ

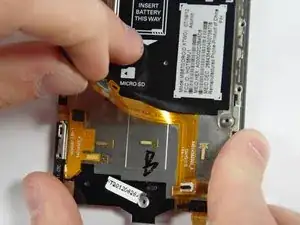

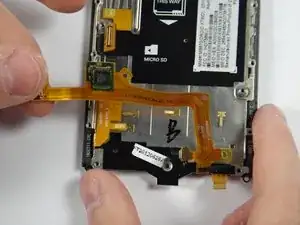

    • Lift the ribbon from the device

    • This does require some effort to remove.

  21. qJfg6HcylPILE6fG
    qJfg6HcylPILE6fG
    lrP3kHpSdSCgnBTC
    1aighFAFMHt2wGvg

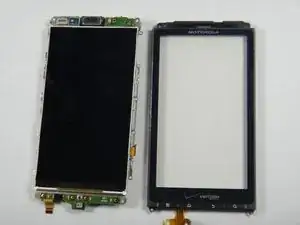

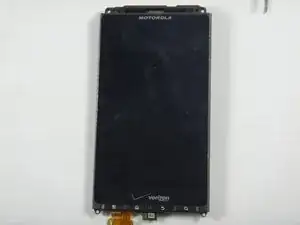

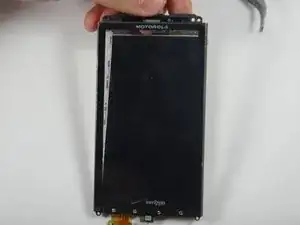

    • Lift the screen off of the device

  22. eXGJ3ZnnCMKunCUt
    eXGJ3ZnnCMKunCUt
    RUssgVLQYBaYEMHq

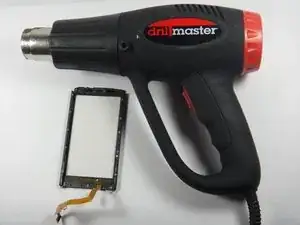

    • Using a heat gun, gently heat the edges of the screen

    • Be careful as overheating can damage the electronics.

    • The screen will be hot after.

  23. FBmbyKeeJMCi3Sxi
    FBmbyKeeJMCi3Sxi
    3E4uoBQweninCCRj
    CGTmxYlQBJBJOTWW

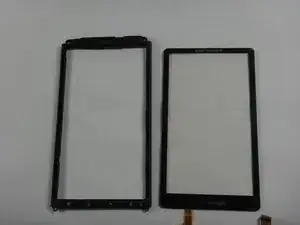

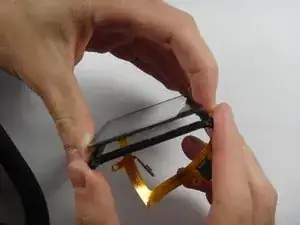

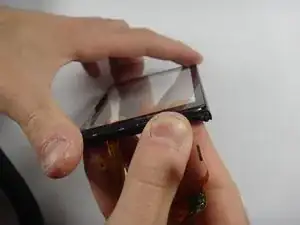

    • Lift the screen from the frame.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Aaron Mak

Mitglied seit: 29/10/14

658 Reputation

Ein Kommentar

I recently ran into an interesting situation with the Droid X2 at my repair shop. I know this is an older device, but this is still a very important piece of information: there are 2 different types of digitizers and 2 different types of LCD's, depending on the Droid X2's transceiver number. Type A digitizer has a smaller front row button connector, Type B is larger. Same with the LCD, there is a Type A small connector and a Type B larger connector. Under the battery on the barcode sticker, right below the "MB870" barcode is the transceiver number, starting with "SJUG" and ending in either 6250 (type A) or 6065 (type B). Anyone buying a replacement LCD or digitizer needs to know which one to get, or else the connectors won't fit.

Andrew F -
