Einleitung

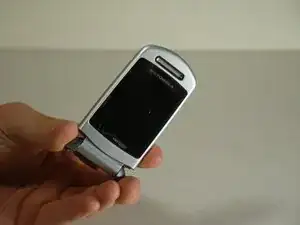

If the front screen of your E815 is cracked or broken, you need to replace the screen. In most cases, a cracked screen is clearly visible by ink blots or radiating shatter patterns throughout the screen.
In this guide, you will:
- Dissemble the E815
- Access the front screen
- Replace the screen
Werkzeuge
Ersatzteile
-
-
Locate the battery removal slot.
-

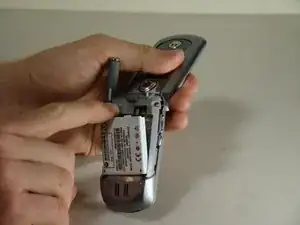

Use your finger to pull the battery out from the top.
-
Remove the battery.
-
-
-

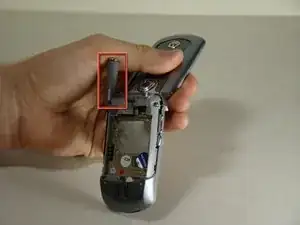

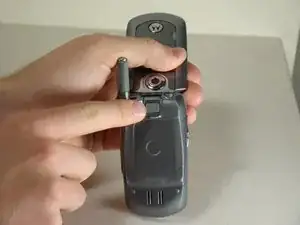

Grip the plastic support post and unscrew the apparatus using a counterclockwise twist.
-
Pull the apparatus up and out of the phone.
-
-
-

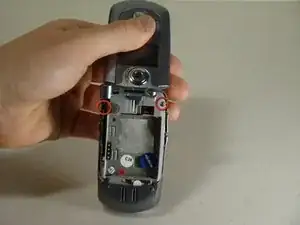

Locate the two screws on the backside of the phone.
-

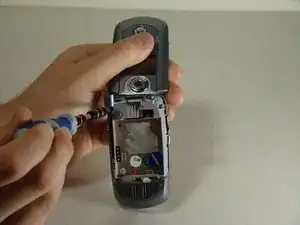

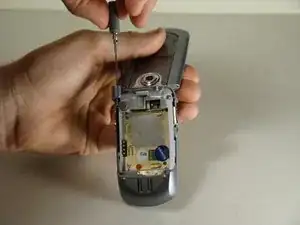

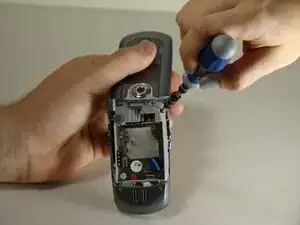

Unscrew the two screws using your T6 screwdriver.
-
-
-

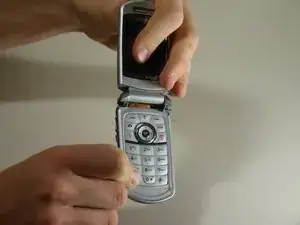

Grasp the top of the phone near the speaker.
-

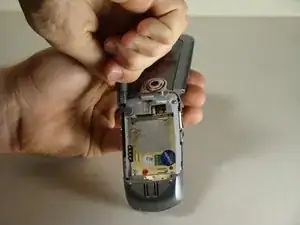

Gently pull the top section of the phone upwards until you feel some resistance.
-

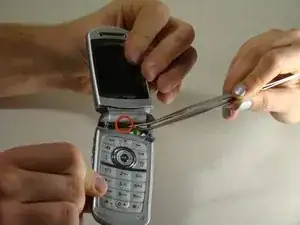

Locate the brown connector that runs from the top section of the phone to the circuit board under the keypad.
-
Using tweezers, gently pry the connector from the circuit board.
-

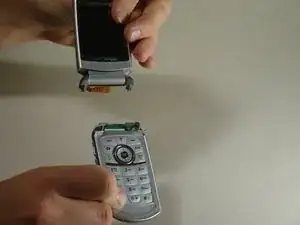

Detach the top section of the phone from the keypad section.
-
-
-

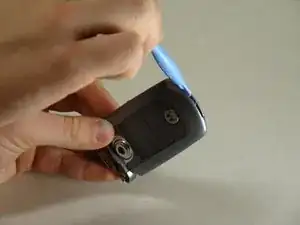

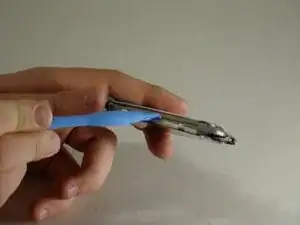

Carefully insert the blue pry tool into the notch between the two halves of the top section of the phone.
-
Gently pry the two halves apart.
-
-
-

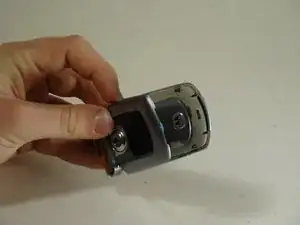

Rotate the top section of the phone around so that you are looking at the outer screen.
-

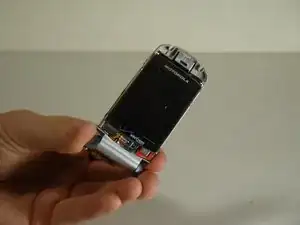

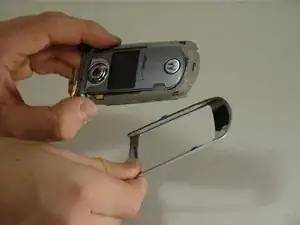

Disconnect the cover from the outer screen side of the phone.
-
-
-
Rotate the top section of the phone around so you are looking at the large screen.
-
Using your fingers, lift the protector off of the screen.
-
-
-

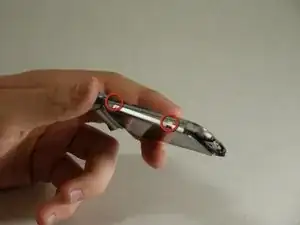

Turn the phone so that you can see the side metal clasps.
-

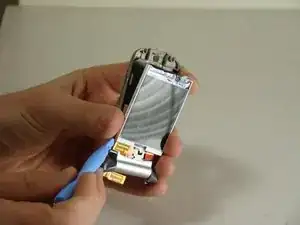

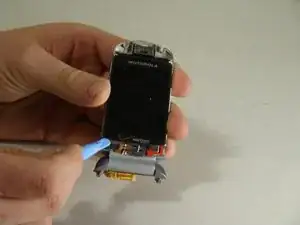

Using the blue lifter tool, snap the metal clasps off of screen body.
-
Proceed to snap all four corners of the metal cover off of the screen body.
-
-
-

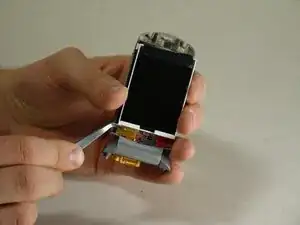

Using tweezers, gently detach the brown connecting strip from the back of the screen.
-

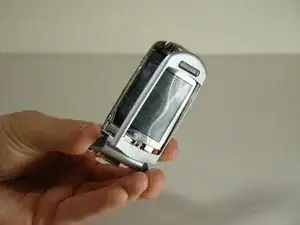

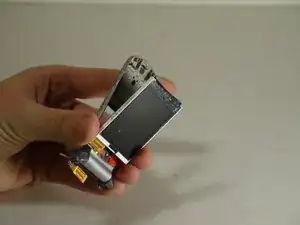

Separate the screen from the phone frame.
-
The front screen can now be accessed and replaced!
-
To reassemble your device, follow these instructions in reverse order.
