Einleitung

If the buttons on your Motorola E815 are unresponsive or do not seem as crisp as they used to be, you may need to replace your keypad. To accomplish this, you will

  • Dissemble the phone
  • Access the keypad for repair or replacement
  1. BcRIxoXuOWamFDRg
    • Locate the back cover release slide.

    • Use your finger to slide it down.

  2. J5C4suHIJWlPGNcY
    • Remove the back cover by pulling it away from the phone.

  3. Q3ySTiCfmd2CKSDf
    Q3ySTiCfmd2CKSDf
    tPQfuIrDhLUNITLS
    • Locate the battery removal slot.

    • Use your finger to pull the battery out from the top.

    • Remove the battery.

  4. QKSfxMaK2YXnRdBZ
    • Locate the antenna port on the top of the phone.

    Removing Antenna Only

    Zoie E -

  5. Y1yDILeNfso434uQ
    Y1yDILeNfso434uQ
    NoqQqGmErplvqVIT
    • Grip the plastic support post and unscrew the apparatus using a counterclockwise twist.

    • Pull the apparatus up and out of the phone.

  6. blINH5ctCltW2XFB

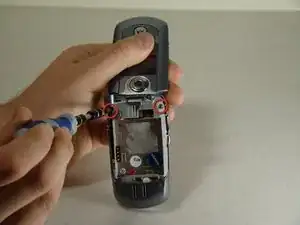

    • Locate the two screws on the backside of the phone.

    • Unscrew the two screws using a T6 Screwdriver.

  7. hpQD5PHmeaONpsgB
    hpQD5PHmeaONpsgB
    mYFXVxCNrBKEmuFd
    NIrSYAYPQwRsWsLw

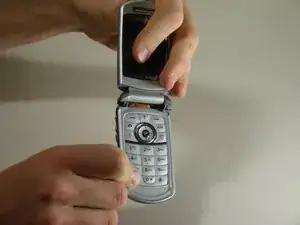

    • Gently pull the top section of the phone upwards until you feel some resistance.

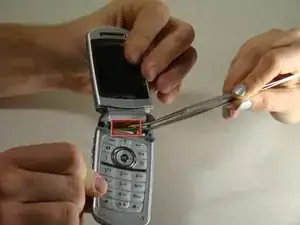

    • Locate the brown connector that runs from the top section of the phone to the circuit board under the keypad.

    • Using tweezers, gently pry the connector from the circuit board.

    • Carefully detach the two sections of the phone.

  8. fS3YNHerCLdjE1bZ
    fS3YNHerCLdjE1bZ
    cRCaHQ4DBDoY6dMu
    kVFotTRKhHVJR2W2

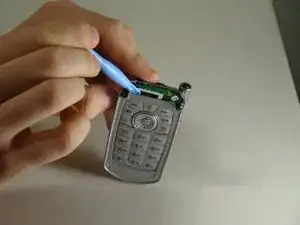

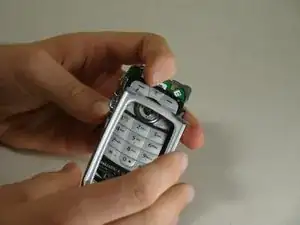

    • Using the blue pry tool, carefully pull the keypad frame away from the keypad.

    • Gently remove the keypad frame from the keypad.

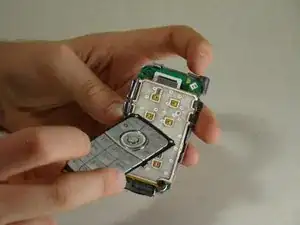

    • Lift the silicone keypad cover off.

  9. nvRgY2dxfMITBa6W
    nvRgY2dxfMITBa6W
    Q4QtCDZgV4CeUDAu

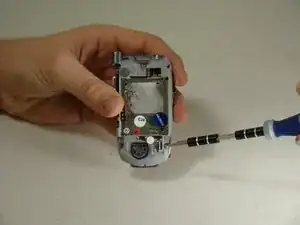

    • Rotate the phone around so that you are looking at the battery cavity.

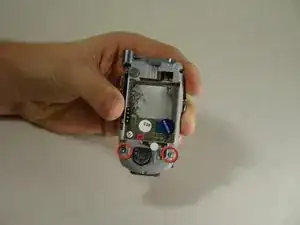

    • Locate the screws on the bottom base of the phone.

    • Unscrew the two screws using a T6 Screwdriver.

  10. VJlyywvfIuPTtUqG
    VJlyywvfIuPTtUqG
    4pWZRGMC3uE6eGCZ
    • Rotate the phone back to the front side.

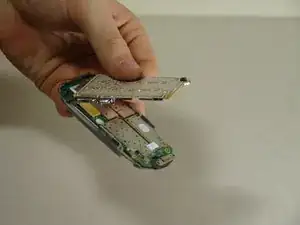

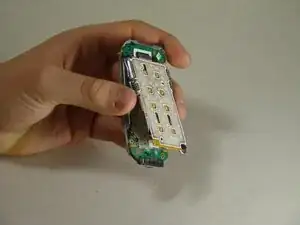

    • Slowly lift the bottom portion of the keypad off of the phone until you feel resistance.

  11. NFRB2H51nqRpjlEm
    NFRB2H51nqRpjlEm
    QTTsILbBPuZuaL3S
    tXxoQuoT2Nlcfq1Z

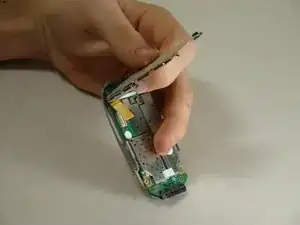

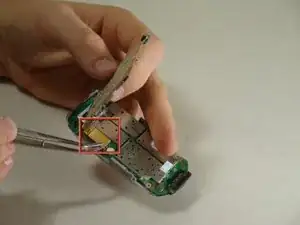

    • Using tweezers, carefully detach the yellow connector strip from the circuit board by lifting up.

    • Separate the keypad from the circuit board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
