Motorola Lapdock 100 Phone Adapter Cable Replacement

Schwierigkeitsgrad

Easy

Schritte

10

Zeitaufwand

8 Minuten

Einleitung

To start you will need to remove the bottom case of the lapdock as described in the guide. After doing this you will need to remove the lapdock battery. Then you will follow by unplugging the phone adapter cord from the motherboard. Then you will be able to remove and replace the cord.

  1. 5PvipkXcMe6ENPFU
    5PvipkXcMe6ENPFU
    Kdi5pXUlhhB324s1

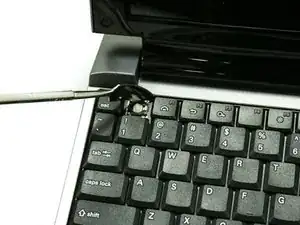

    • To take off the Keyboard there are three tabs at the top of the Keyboard in the locations shown in the picture that you must press and unclip. They are located behind each of the keys that are removed.

    • You do not need to remove any keys to unclip the keyboard. We did this for picture purposes only.

  2. QhqRBeDkQkEvxaIX

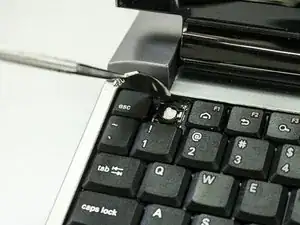

    • You can use a small metal spudger to depress each tab to avoid scratching the keyboard.

  3. tuw6fGIIdPi4O2Yh

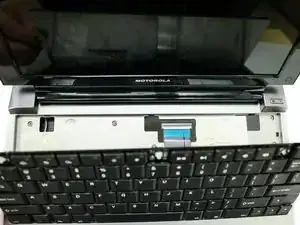

    • Lift up keyboard so that you are able to see the ribbon cable connected to the contact.

  4. yX2JWtcTQRXCCyPI
    yX2JWtcTQRXCCyPI
    kSAA6DEYHKPdCJfT

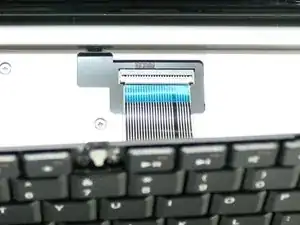

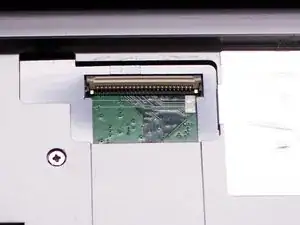

    • Flip up the ZIF connector holding the ribbon cable on the contact as shown in the two pictures and then gently disconnect the ribbon cable.

  5. fsWDMSwuCb2DGSCB
    fsWDMSwuCb2DGSCB
    bB1rIEGqsIrLKgTT

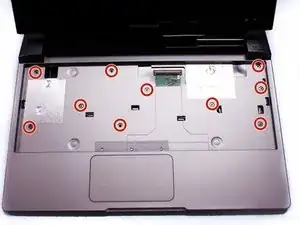

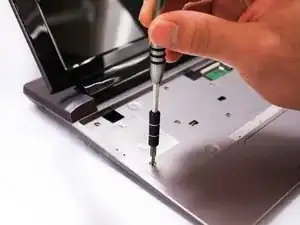

    • After we remove the Keyboard, you can clearly see the screws under it. Remove the ten 3mm long phillips head screws.

  6. BNHkyyXBpSkxycrb
    BNHkyyXBpSkxycrb
    VgTVTVDpJSADGBDJ
    RMN62Xrt4XYWlpnQ

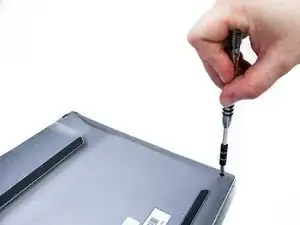

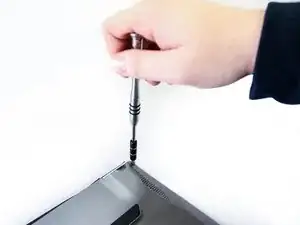

    • Flip over the Lapdock and remove the four 3.5mm long phillips head screws from the bottom.

  7. pb62fIBYJQagcgOL
    pb62fIBYJQagcgOL
    MjAydsuxOpbAaxcx

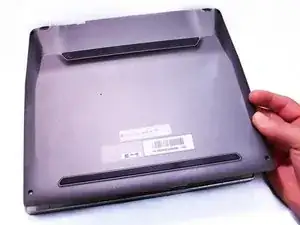

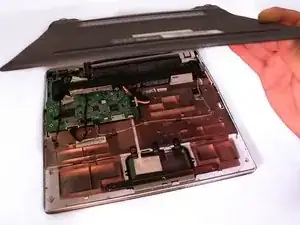

    • Use a plastic prying tool to take off the bottom case. Make sure that all of the clips are unclipped before trying to remove the case.

  8. kDXxHJN5HYyjVYMY
    kDXxHJN5HYyjVYMY
    tp5SSYBNSGZIBjQN

    • Unplug battery from motherboard.

  9. 2KSQAWm3CBhOC3dd

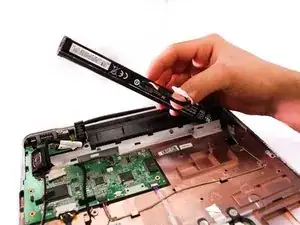

    • Remove the battery.

  10. xwHBxVkTY4LvkecA
    xwHBxVkTY4LvkecA
    tjlahmYCBUoVylIe
    nfawEv5ioFa3hRSO

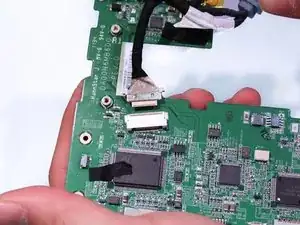

    • Unplug the two connections to the motherboard to free the adapter cable.

    • You do not need to remove the motherboard to remove the phone adapter cable. We did this for picture purposes only.

Abschluss

To reassemble your device, follow these instructions in reverse order.
