Motorola Lapdock 100 Speakers Replacement

Geschrieben von: Anthony Aiumu
  • Kommentare: 0
Motorola Lapdock 100 Speakers Replacement

Schwierigkeitsgrad

Easy

Schritte

13

Zeitaufwand

10 Minuten

Einleitung

To start, you will need to remove the bottom case of the lapdock. To do this you will need to remove the keyboard and remove the screws under the keyboard as well as the four screws underneath the lapdock. After doing this you will be able to reach the screws that are holding the lapdock speakers. Once unscrewed and unplugged from the motherboard, you will be able to remove the speakers.

  1. 5PvipkXcMe6ENPFU
    5PvipkXcMe6ENPFU
    Kdi5pXUlhhB324s1

    • To take off the Keyboard there are three tabs at the top of the Keyboard in the locations shown in the picture that you must press and unclip. They are located behind each of the keys that are removed.

    • You do not need to remove any keys to unclip the keyboard. We did this for picture purposes only.

  2. QhqRBeDkQkEvxaIX

    • You can use a small metal spudger to depress each tab to avoid scratching the keyboard.

  3. tuw6fGIIdPi4O2Yh

    • Lift up keyboard so that you are able to see the ribbon cable connected to the contact.

  4. yX2JWtcTQRXCCyPI
    yX2JWtcTQRXCCyPI
    kSAA6DEYHKPdCJfT

    • Flip up the ZIF connector holding the ribbon cable on the contact as shown in the two pictures and then gently disconnect the ribbon cable.

  5. fsWDMSwuCb2DGSCB
    fsWDMSwuCb2DGSCB
    bB1rIEGqsIrLKgTT

    • After we remove the Keyboard, you can clearly see the screws under it. Remove the ten 3mm long phillips head screws.

  6. BNHkyyXBpSkxycrb
    BNHkyyXBpSkxycrb
    VgTVTVDpJSADGBDJ
    RMN62Xrt4XYWlpnQ

    • Flip over the Lapdock and remove the four 3.5mm long phillips head screws from the bottom.

  7. pb62fIBYJQagcgOL
    pb62fIBYJQagcgOL
    MjAydsuxOpbAaxcx

    • Use a plastic prying tool to take off the bottom case. Make sure that all of the clips are unclipped before trying to remove the case.

  8. moX1MTINdPQYD6Qd
    moX1MTINdPQYD6Qd
    UAGDLTOeKoLDAMYb

    • Remove the two 2mm long phillips head screws from each speaker.

  9. blbNrQSOPW1USQKp
    blbNrQSOPW1USQKp
    MjHuFY3SSaGYQ2gt

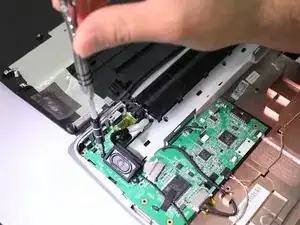

    • Insert wisdom here.

  10. p2PNTDEZ3snS1IeE

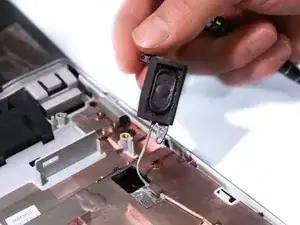

    • Unplug speakers from master chip.

  11. PDpWQuXPr1FOspmn
    PDpWQuXPr1FOspmn
    5YkZXuRHgSUSdTFr

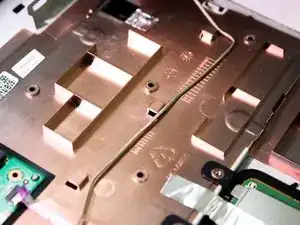

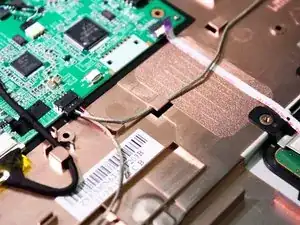

    • Unhook each speaker wire from the tabs that are holding them in place.

  12. SnlHRSafNuJOCQa2

    • Insert wisdom here.

  13. QBMZUSSvMZZDLCO2

    • Gently unplug the speaker connection from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
