Motorola MBP33SBU LCD Screen Replacement

Geschrieben von: Ely Tilley
  • Kommentare: 3
Motorola MBP33SBU LCD Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

8 Minuten

Einleitung

The LCD Screen Replacement is one of the trickier guides. The LCD screen is attached on adhesive foam tape that may be difficult to pry off. However, once you are able to remove the LCD Screen, the replacement itself is fairly simple.

  1. DSRFAJ4GPJPiTnw1
    DSRFAJ4GPJPiTnw1
    QuomsLQXcDJPBnko

    • Using the Phillips #1 screwdriver, remove the battery cover screw.

    • Remove the battery cover from its hinges and set aside.

    NI-MH battery!

    goricijan -

  2. 1uno13lyslbqquK2
    1uno13lyslbqquK2
    6ED6bNuVKqKnR2er
    ZDROkuiiyn6rFXJV

    • Lift the battery from its slot.

    • Using precision tweezers, grip the connector plug.

    • Wiggle the connector plug and pull up to remove the connecting wires.

    • Remove the battery from the unit and set it aside.

  3. KaLiTIYWI6TeBWPq
    KaLiTIYWI6TeBWPq
    YgXFLULGPNC1NUYu
    wbPL1eHqDqZ5fa2V

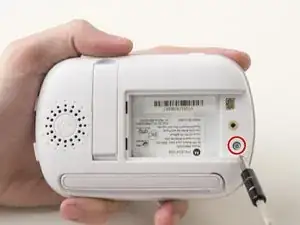

    • Using the Phillips #1 screwdriver, remove the 7mm screw under the battery cover.

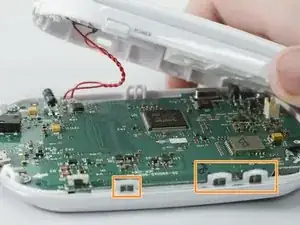

    • Using the blue plastic opening tools, begin prying open the corners and disconnecting the seven clasps around the edges of the parent unit.

    • There should be seven plastic clasps that hook the top portion of the plastic shell to the bottom, these clasps may become damaged while disassembling.

  4. NVjOBhdwgLFgoFvp
    NVjOBhdwgLFgoFvp
    BYejQmBGAtLnvkZE
    jjwaO2GVF64ljNBF

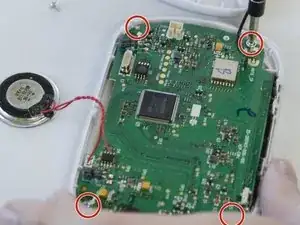

    • Using the Phillips #1 screwdriver, remove the 5.5mm screws holding the circuit board to the shell.

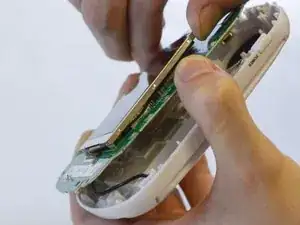

    • Lift the circuit board from the face of the shell, the back should still be connected by the antenna and the speaker.

    • The LCD Screen is glued to the circuit board by a protective foam layer. Attempts at removing the screen may result in damaged hardware.

  5. ZPUnAvuhs6OSWucT
    ZPUnAvuhs6OSWucT
    uNefB1gqXX4oqXVE
    2qKTxGqWdfpqIrgR

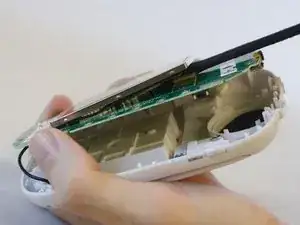

    • Using the flat end of the spudger tool, wedge the tool between the foam layer and the circuit board.

    • This might bend the metal frame around the screen out of place (don't worry about bending the metal, it is part of the screen being replaced).

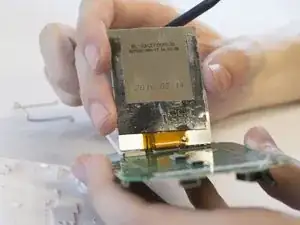

    • Using the spudger and your fingers, pry the screen from the circuit board.

  6. WFihWOKBtJMoK4yK
    WFihWOKBtJMoK4yK
    RhpMIliOIJnWxCQG

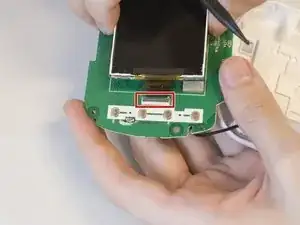

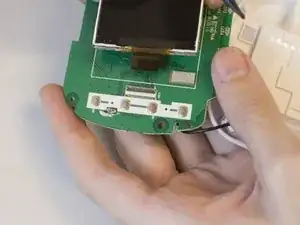

    • There is a small black clasp that holds the circuit ribbon in place. The LCD screen can be removed without undoing the clasp but will need to be put back in place when installing the new screen.

    • Gripping the screen with your fingers, gently pull and wiggle back and fourth until the circuit ribbon detaches from the circuit board.

    Where can I buy the display?

    Peppe -

Abschluss

To reassemble your device, follow these instructions in reverse order.
