Motorola MBP667CONNECT Battery Replacement

Geschrieben von: Kyle Kramer
  • Kommentare: 1
Motorola MBP667CONNECT Battery Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

In case of depleting battery life and battery damage, this guide is for consumers who need to replace the battery of their Motorola MBP667CONNECT baby monitor.

  1. pAT4jvFH6PaQpPpq

    • The battery casing is on the back of the monitor housing.

  2. UGCRElAlXvrNSvTM
    UGCRElAlXvrNSvTM
    TKno6DKMBZLJooAj

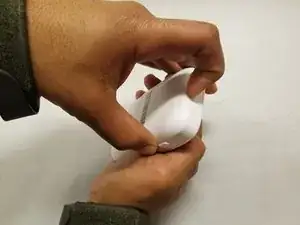

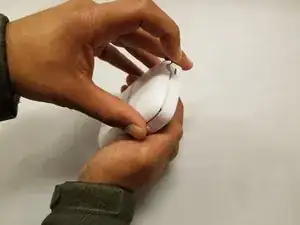

    • Notice the little crevice at the bottom of the baby monitor. This is how the lid is removed. Simply put pressure with your finger to the crevice and lift.

    • Remove the battery casing lid from the back of the monitor housing.

  3. Ta6wYMApXgyCjcvp

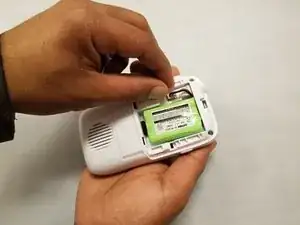

    • There is a plastic part connecting the wires of the battery to the device.

    • Disconnect the battery wiring from the monitor battery connection.

  4. LHhvFOw2BctEt1h6

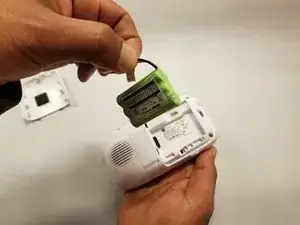

    • Remove and discard the old battery and replace it with a new battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.
