Motorola MBP667CONNECT Camera Stand Replacement

Geschrieben von: Anne Ngo
  • Kommentare: 0
Motorola MBP667CONNECT Camera Stand Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

If the stand housing is cracked and cannot hold up the camera of the baby monitor, then this guide shows consumers percisely how to remove and replace the stand.

  1. AQgQPOuj5MviQVZH
    AQgQPOuj5MviQVZH
    SJ1AMghuCbXCjJQB

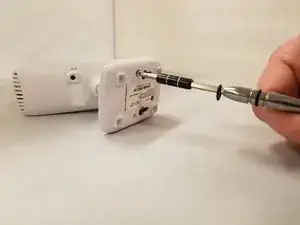

    • Remove two 5 mm Phillips #1 screws from the bottom of the camera stand.

  2. OsMt4WxfpDpZWQlc

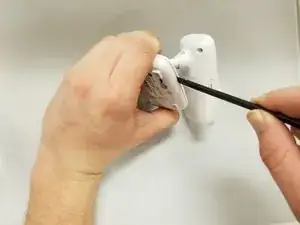

    • Use a nylon spudger to remove the casing.

  3. Jix64hgPaaDpnEWq

    • Remove the two 5 mm Phillips #1 screws attached to the black plastic under the casing.

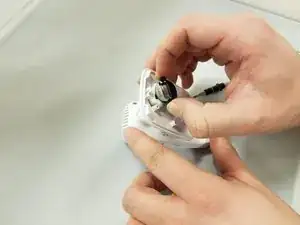

  4. yeOTYc1yfcUZQrRv
    yeOTYc1yfcUZQrRv
    vUqOXEoKJD1QVWsp

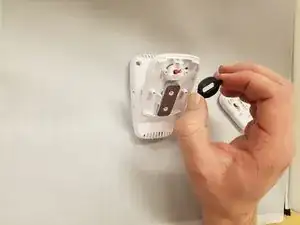

    • Remove the black circular plastic part.

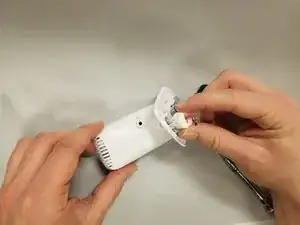

  5. j26KgV4XBUcBMREh

    • Remove the white plastic wire housing beneath the black plastic.

  6. M4T2CUuDiHQJXrGy
    M4T2CUuDiHQJXrGy
    eNFBQhLpUFAwnVBh

    • Now, remove the bottom of the stand by pulling it from the camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
