Einleitung

The MC55 series device is intended for industrial and commercial use. Thus, parts like the charging port can become damaged by extended use and wear. This guide will help the user to break down and replace the charging port of the MC5590.

  1. ZuYSIllfMjN5frFD
    • Push in the battery release button.

  2. XTeyB1NodZCkR1Gs
    • Pull out battery.

  3. eIWxpVcDcrLUZITL
    eIWxpVcDcrLUZITL
    5O4MwbyZ4W2XKVXQ
    • Remove the two rubber plugs on the top of the device by pushing them up and out of the phone.

  4. 6dVD2fSW4m4dHgbV
    6dVD2fSW4m4dHgbV
    ojCuIZiGrdCLdrfW
    OvCt3ZHGOu6PgsPe
    • Remove the four 1cm Phillips #0 screws from the top and bottom of the phone.

  5. eCTZlYyp2Kx2gDAm
    • Use a plastic opening tool to remove the keyboard cover by prying up on its perimeter.

  6. CF3qXTm31woBeqdV
    CF3qXTm31woBeqdV
    KMAZDuHSQYSlULLy
    • Remove the eight 4mm Phillips #00 screws from the keyboard cover.

  7. ZyNQQNxSeLQIcmRv
    • Remove the keyboard cover.

  8. l1jVPuDDRLl3bSXi
    l1jVPuDDRLl3bSXi
    ovNtVm2tqTGrJ4mw
    gFtMeQCHmxxjoVch
    • Use a spudger to flip up the retaining flap on the keyboard ribbon cable ZIF socket.

    • Pull the ribbon cable out of the socket.

  9. UQOlvp1qgI4xYCiX
    UQOlvp1qgI4xYCiX
    KKcZYZcclkPhOtpB
    • Use a spudger to flip up the retaining flap on the display ribbon cable ZIF socket.

    • Remove the keyboard from the device.

  10. YaDYklik4spPgagZ
    YaDYklik4spPgagZ
    fdxLsS6hgJjB26Os

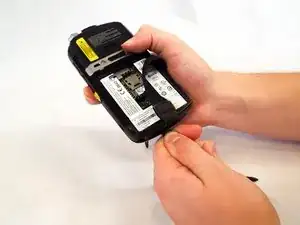

    • Pull the black rubber tabs up gently and remove them.

  11. YRcqO5wBmmFuIIwb
    YRcqO5wBmmFuIIwb
    GQV2tt4qnTnN36wk

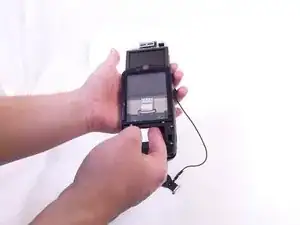

    • Using your finger, or spudger, push the motherboard out from the bottom.

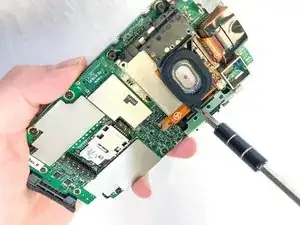

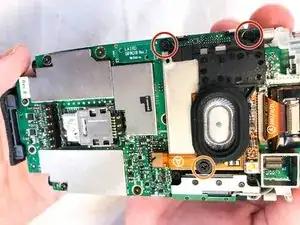

  12. ZOcGiAtWACWrW3Qn
    ZOcGiAtWACWrW3Qn
    CjpqucVNZnNg4idR
    • Remove the three Phillips #00 screws from the motherboard:

    • Two 3mm screws.

    • One 1mm screw.

  13. N61NGwWIhZVcW55d
    N61NGwWIhZVcW55d
    Jqk3ynEDgAkPNYCF

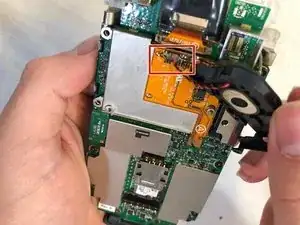

    • Disconnect the speaker from the motherboard.

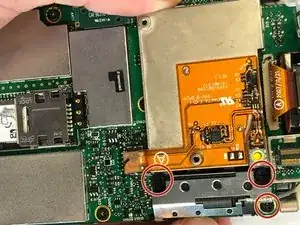

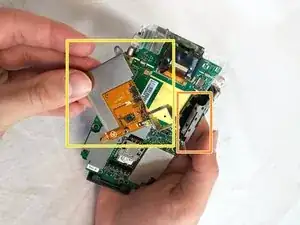

  14. LRUIYREe6vuIjdrA
    LRUIYREe6vuIjdrA
    YTqSf2ZGsYDMEfuV
    KhPeeKPyDTvNbZDI

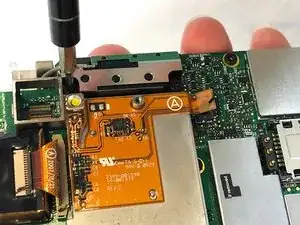

    • Remove the the 3mm Phillips #00 screws from the flex cable cover and antenna.

    • Remove the antenna.

    • Remove the flex cable cover.

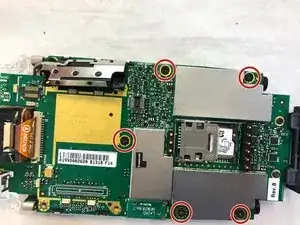

  15. BJ5EIgTNHbPbiT6J
    BJ5EIgTNHbPbiT6J
    WITlYCfWHGaBmMRM

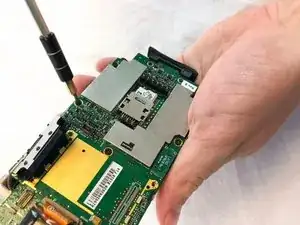

    • Remove the five 3mm Phillips #00 screws from the motherboard.

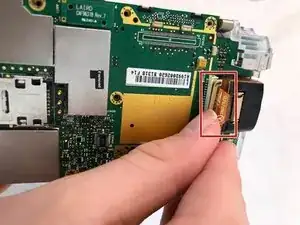

  16. ZlJMvPO1AuhfCccf
    ZlJMvPO1AuhfCccf
    QMT2tcl2ZRESGYEF

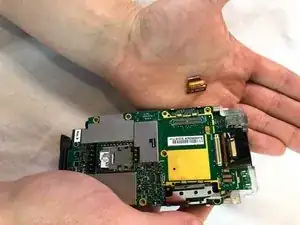

    • Remove the scanner ribbon cable by pulling straight up and out.

  17. KYA6joSTTAI2YgjN
    KYA6joSTTAI2YgjN
    t3NyPxZXNmS2HutP

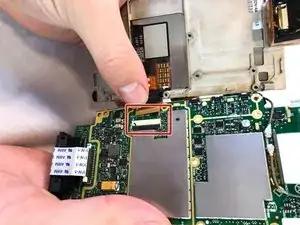

    • Flip open the motherboard and the LCD screen.

    • Open the LCD connector and remove the cable.

    • Pull the LCD Screen and its metal bracket apart.

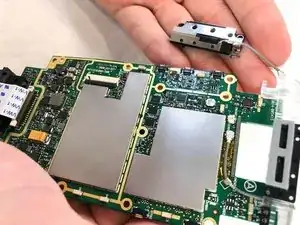

  18. BMCiySfe6cwGWFKb
    BMCiySfe6cwGWFKb
    qwq6jf3gSiARTcCY

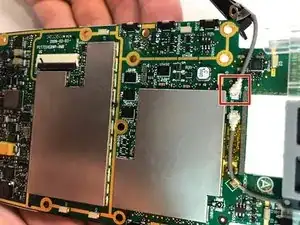

    • Remove the antenna connector (red box).

    • This is a snap-on connector, which can be removed by applying a gentle pull straight up from the motherboard.

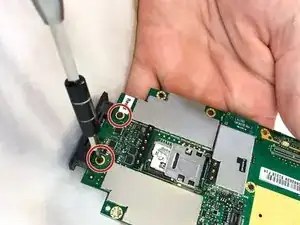

  19. CEnqUfTuTGZNRHTx
    • Remove the 2 screws (3 mm long) at the bottom of the motherboard using a PH00-bit screwdriver.

    • Disconnect the charging port from the rest of the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
