Motorola MOTO W755 Cell Phone Speaker Replacement

Use the plastic opening tool to pull peel back screen cover.

Gently peel back the screen cover from the speaker slit.

Using the T6 Torx-screwdriver, remove the four 4.3 mm screws from the top panel.

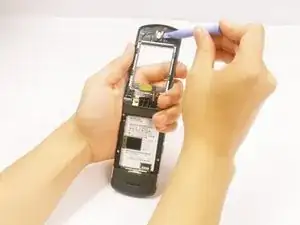

Using the flat end of the plastic opening tool, insert it underneath the plastic cover on the top right corner.

Move the opening tool around the phone counter clockwise.

Pop the plastic cover off by twisting the plastic covering tool.

Using a flat head screwdriver, insert it between the metal logic board casing and the top portion of the phone

Move the plastic opening tool around the phone until part of the casting is popped off.

You will need to pop in the four plastic fasteners individually from the metal casing to remove it

Be careful not to rip the cable ribbons that are attached to the logic board and casing

Use the flat end of the plastic opening tool to unclip the cable ribbon from the logic board

You now have the top panel completely detached.

Flip the top portion of the phone so that the back is facing you.

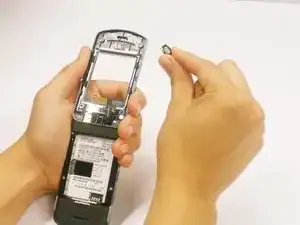

Using the flat end of the plastic opening tool, pry the speaker off the back of the phone.
