Motorola Moto E Rear Facing Camera Replacement

Geschrieben von: Alex Craig
  • Kommentare: 3
Motorola Moto E Rear Facing Camera Replacement

Schwierigkeitsgrad

Difficult

Schritte

13

Zeitaufwand

45 Minuten - 1 Stunde

Einleitung

You will need to remove the outer back plastic cover and the battery connection in order to access the motherboard and camera parts to do the replacement.

  1. XIfQx3xPfNOWclJD

    • Turn off the device before beginning.

    • To remove the back cover, start at one corner and stick the plastic opening tool under the cover and pry it away from the phone.

    • With the plastic opening tool, pry all the way around the phone while lifting up on the cover.

    • You should hear a snapping sound at each corner.

  2. itLDw4WV1oZEO6EI

    • Unscrew the 14- 4mm screws using a T4 Torx driver head.

    • Working on a magnet board is recommended as the screws are small and can be easily misplaced.

  3. MSSHlMaYSWXPIGjR

    • Using the same plastic opening tool as in step 1, once again pry up on the edges of the plastic back cover.

    • Be sure that all of the screws are out before lifting the cover. The plastic backing is fragile, and it may break.

  4. 5gT4pZWbhW2fukHD

    • Gently lift the back plate away, exposing the motherboard. The battery will be stuck to the back of the cover, so be careful when lifting it off.

    • Do not touch the connections to the battery in the red square on the picture.

  5. dAYOVhFvmhNpWk44

    • Gently pull up on the red and black power cable to lift the connector out of the motherboard.

    • Move the battery and cover away from the motherboard.

  6. ZVlsCjbIxLcrOWJB

    • Unscrew the 3- 1mm screws using the T4 torx driver head.

  7. OSD4eHeHyhPryV4H

    • Lift up on the white plastic mount.

    • Pull the orange ribbon cable out gently.

  8. AQHINpoi4MUVWBZM
    AQHINpoi4MUVWBZM
    NIGlPum5JaBAFRA5

    • Gently pull the black ribbon cable out.

  9. eGBOSZx1My6NW6Ud

    • Using the metal spudger, pry the motherboard away from the screen assembly.

    Where do you get a new motherboard

    sharon m caputo -

    Where do you get a new motherboard ? Please help I love this phone and want to fix it.

    sharon m caputo -

    Where do you get a screwdriver that will unscrew those little

    sharon m caputo -

  10. 6uZnaCAtPBMPhFrW

    • Use the plastic opening tool to pry the metal housing off.

  11. ulQDrHgOXScwZAjr

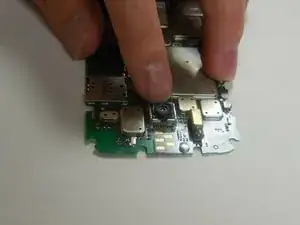

    • Remove the rubber cover on the camera by gently lifting it up.

  12. plBiINqIZQo4o4pl

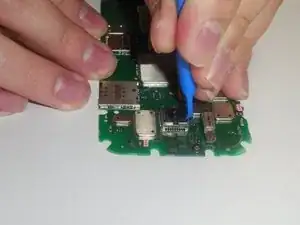

    • Use the same plastic opening tool to pry the camera assembly off.

    • Use the plastic opening tool on all four sides of the camera several times until it starts to come loose.

  13. pwHUfkopRFpUbNBJ

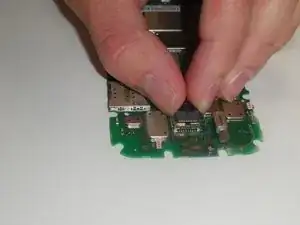

    • Pull the camera assembly out.

    • Place the new camera assembly into the connector and press gently.

Abschluss

To reassemble your device, follow these instructions in reverse order.
