Use this guide to remove the power and volume buttons in the Motorola Moto E4 Plus (XT1771).
Before disassembling your phone, discharge the battery below 25%. If your battery is swollen, do not heat your phone. Swollen batteries can be very dangerous, so wear eye protection and exercise due caution, or take it to a professional if you're not sure how to proceed.
-
-
Insert the edge of the spudger into the notch on the bottom right corner of the phone.
-
Twist the spudger to start releasing the back cover from the phone.
-
Slide the spudger along the bottom edge to separate the back cover from the phone.
-
-
-
Insert an opening pick underneath the bottom left corner of the motherboard cover.
-
Slide the opening pick between the cover and the second SIM tray to release the plastic clip.
-
-
-
Insert an opening pick underneath the bottom right corner of the motherboard cover.
-
Use the opening pick to pry up the motherboard cover.
-
-
-
Use the edge of a spudger to pry up and disconnect the battery flex cable from the motherboard.
-
-
-

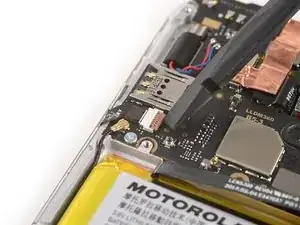

Use the edge of a spudger to open the lever of the ZIF connector.
-

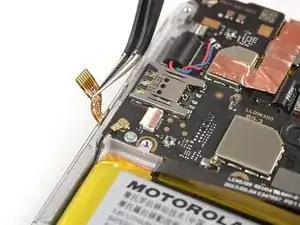

Use a pair of tweezers to pull the power and volume button flex cable out of the ZIF connector.
-
-
-

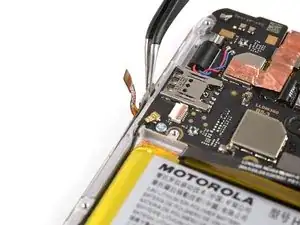

Use a pair of tweezers to gently peel the power and volume button unit out of its thin recess in the side of the frame.
-
Remove the power and volume button unit.
-
If possible, turn on your phone and test your repair before reassembling the device.
To reassemble your device, follow these instructions in reverse order.
