Follow this guide to remove and replace a broken rear-facing camera for the Moto E4 Plus.

  1. PCCXuPCwmVpwtTCZ
    PCCXuPCwmVpwtTCZ
    bPy2yicrAdZxADOP
    2lalNWm6HLMBs6AH
    • Power off your phone before beginning disassembly.

    • Insert the edge of the spudger into the notch on the bottom right corner of the phone.

    • Twist the spudger to start releasing the back cover from the phone.

    • Slide the spudger along the bottom edge to separate the back cover from the phone.

  2. BUAOpKayenHBerHv
    BUAOpKayenHBerHv
    Hajy1vGJYVD5BJSq
    • Lift the phone unit out of the back cover.

  3. Mq2wTWMIi6bGSEX5
    • Remove the nineteen 3.2 mm long T3 screws securing the plastic midframe.

  4. FENImFKLpNmuSGRG
    FENImFKLpNmuSGRG
    oHr6G24aZv1yMCfw
    • The plastic midframe is still held in place with clips.

    • Insert the flat end of a spudger into the midframe seam at the bottom left corner of the phone (near the microphone hole).

    • Twist the spudger to release the plastic clip.

    • Repeat the process for the clip near the top right corner of the phone.

  5. cKwFSBqZQ2YEiVLM
    cKwFSBqZQ2YEiVLM
    aO5yK3AvuoVJTpNG
    • Lift the bottom edge of the plastic midframe upwards until the clips along the top edge release.

    • Remove the plastic midframe.

    • To reattach the plastic midframe, line up the midframe to the phone and squeeze along the edges to engage the clips.

  6. 5mx5iwONooV6ehXS
    5mx5iwONooV6ehXS
    eQtY6GOrcukID2DQ

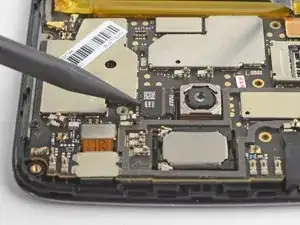

    • Use the point of a spudger to pry up and disconnect the battery connector from its motherboard socket.

  7. AkEkHViyJAUj3FQx
    AkEkHViyJAUj3FQx
    tarWy66cQlAHbdmc

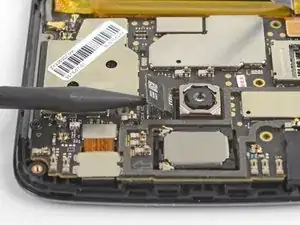

    • Use the point of a spudger to pry up and disconnect the rear-facing camera module connector from its motherboard socket.

  8. bs4dYkoi6ArLiy6O

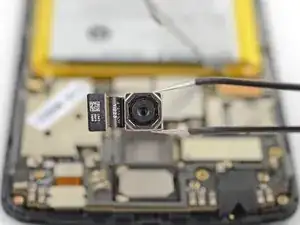

    • Remove the rear-facing camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
