Follow this guide to remove and replace the small vibration motor on the Moto E4 Plus. This requires removing the daughterboard, which houses the motor’s connector.
Werkzeuge
-
-
Insert the edge of the spudger into the notch on the bottom right corner of the phone.
-
Twist the spudger to start releasing the back cover from the phone.
-
Slide the spudger along the bottom edge to separate the back cover from the phone.
-
-
-
Insert the flat end of a spudger into the midframe seam at the bottom left corner of the phone (near the microphone hole).
-
Twist the spudger to release the plastic clip.
-
Repeat the process for the clip near the top right corner of the phone.
-
-
-
Lift the bottom edge of the plastic midframe upwards until the clips along the top edge release.
-
Remove the plastic midframe.
-
-
-
Use the point of a spudger to pry up and disconnect the battery connector from its motherboard socket.
-
-
-
Use the point of a spudger to pry up and disconnect the antenna cable from its daughterboard socket.
-
-
-
Use the point of a spudger to pry up and disconnect the interconnect cable from its daughterboard socket.
-
Pry up and disconnect the fingerprint sensor cable next to it from the daughterboard.
-
-
-
Insert the point of a spudger under the bottom right corner of the daughterboard and pry up to loosen the daughterboard.
-
-
-
Insert the point of a spudger underneath the vibration motor and pry upwards to loosen it.
-
-
-
Grasp the daughterboard by the edges and lift it out of its recess.
-
Remove the daughterboard. The vibration motor will be attached to it.
-
-
-

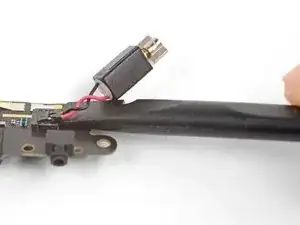

Insert the flat edge of a spudger between the vibration motor wires and the daughterboard
-

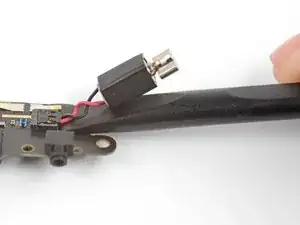

Gently twist to pry the connector upwards out of its socket.
-
To reassemble your device, follow these instructions in reverse order.
Repair didn’t go as planned? Try some basic troubleshooting, or ask our Moto E4 Plus Answers community for help.
