Einleitung
This guide shows how to replace the front facing camera in a Motorola Moto E6. It may need to be replaced if the front camera is failing to capture photos and/or project an image on the screen.
-
-
Begin by prying open the bottom right of the device using the plastic opening tool.
-
Work your way around the edge of the device, slowly prying open the casing until it pops off.
-
-
-
Use the plastic opening tools to pry open the piece located at the top of the device.
-
Start by prying open the side of the compartment and work your way towards the camera module, prying open the compartment as you go.
-
Pop off the piece above the battery compartment.
-
-
-
Remove the two 1.1 mm T4 Torx screws from the bottom left and top right sides of the motherboard.
-
-
-
Remove the two press fit cables at the bottom of the motherboard with the plastic opening tool.
-
Remove the coaxial cable using the plastic opening tool.
-
After removing the cables, remove the motherboard from the phone by hand.
-
-
-
Remove the press fit cable holding the camera on the back of the motherboard using the plastic opening tool.
-
-
-

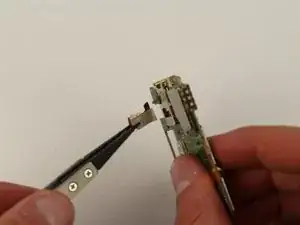

Peel off the adhesive sticker tape holding the front facing camera using tweezers and remove the camera from the phone.
-
To reassemble your device, follow these instructions in reverse order.
