Follow this guide to replace the display in a Motorola Moto E6 Plus.

Note: Replacement screens for this phone come pre-installed in a new frame (a.k.a. chassis), which requires you to transplant all of your phone's internals. Make sure you have the correct part before starting this guide.

  1. DV5tZdENiPJTQAHr
    DV5tZdENiPJTQAHr
    ZLVwPhhuVLkUM2so
    • Use an opening tool or your fingernail to pry the back cover away from the frame using the notch at the bottom right corner.

  2. J1BapQcYH4yMlOdj
    J1BapQcYH4yMlOdj
    mxJsqtHuwRJjNBR6
    l52kFOQjHdakutLa
    • Use an opening tool or your fingernail to release the clips on the right edge by sliding up and around the top right corner.

  3. P5IvPvDtn3JNoxHK
    P5IvPvDtn3JNoxHK
    EYwJhkTXPJ3MbcVO
    • Continue to slide the opening tool or your fingernail across the top edge to release the clips securing the back cover to the frame.

  4. NTONYYaIPIFSexev
    NTONYYaIPIFSexev
    UkfubXkAXUxqBxaZ
    • Continue to slide the opening tool or your fingernail down the left edge to release the clips.

  5. vgbAQyZt4TIpUmH5
    vgbAQyZt4TIpUmH5
    thBYeufEmQbjUgPt
    GBiAVjADV4gXNKQY
    • Remove the back cover.

  6. 44RTHNyrK1FuSSft
    44RTHNyrK1FuSSft
    pnhYD23GC4DxXqt5
    rLBa4dEMSKgI5ybt

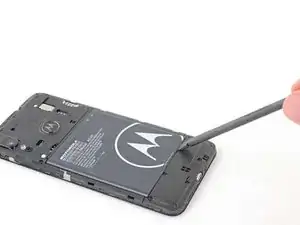

    • Use a spudger or your fingernail to pry the battery up using the notch near the bottom right corner.

    • Take care not to puncture or bend the battery with your tool—a punctured or bent battery may leak dangerous chemicals or cause a thermal event.

    • Remove the battery.

    This is the best and most easily explained step by step procedure I have ever come across, usually author assumes that one does not need some of the steps, believe me “the more details the better “ this guy certainly knows how to explain things. Well done, excellent.

    Ken Mills -

  7. SCQSb22VXNPBBXUU

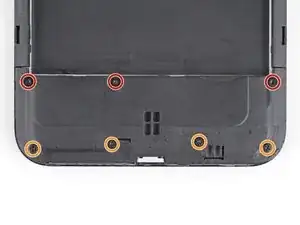

    • Use a Torx T3 driver to remove the three 3.6 mm-long screws securing the loudspeaker to the frame.

    • Use a Phillips screwdriver to remove the four 3.1 mm-long screws.

  8. nwFC5YbPlwNwpgiY
    nwFC5YbPlwNwpgiY
    CwI6rxNQVwEHCF5A

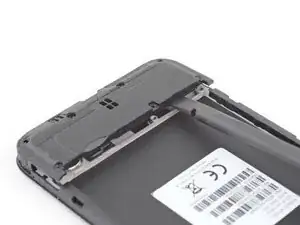

    • Use a spudger to pry up the loudspeaker from the frame.

    • If you are having trouble releasing the clips securing the loudspeaker to the frame, use a spudger to pry around the loudspeaker to loosen it.

  9. ABKbxAPLIRRHyxwY

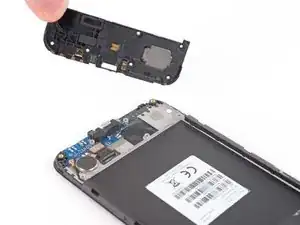

    • Remove the loudspeaker.

  10. SFdcLi4ZLUwnoR1L
    SFdcLi4ZLUwnoR1L
    BquOEEDXJoFNxWAu
    • Use a pair of tweezers or your fingers to remove the charging port insulator.

    • The charging port insulator may have come off with the loudspeaker.

    Not necessary on my phone.

    Peter Merchant -

  11. oWU1HGUGQcKtM6AU
    oWU1HGUGQcKtM6AU
    GYkkRB4hO2prBQHr
    • Use the pointed end of a spudger to disconnect the coaxial cable by lifting straight up as close to the connector as possible.

  12. TCYqfjckyqJG3JoC
    TCYqfjckyqJG3JoC
    sqr51WsaxY1wutHb

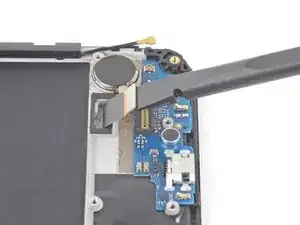

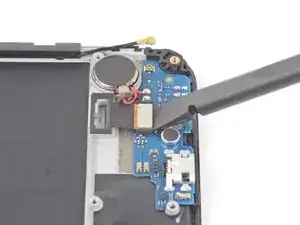

    • Use the flat end of a spudger to disconnect the motherboard flex cable by lifting straight up on the press connector.

  13. VTBIkKtrAPQesHYU
    VTBIkKtrAPQesHYU
    FivSllfTW2dqaYFe
    • Heat an iOpener and apply it to the bottom edge of the screen for 30 seconds.

    • A hair dryer, heat gun, or hot plate may also be used, but be careful not to overheat the phone—the display and internal battery are both susceptible to heat damage.

    • Apply a few drops of high concentration (over 90%) isopropyl alcohol underneath the vibration motor to loosen the adhesive securing it to the frame.

    • Tilt your phone to allow the isopropyl alcohol to flow underneath the vibration motor.

  14. dRMeevEUJ1DHv4kU
    dRMeevEUJ1DHv4kU
    lVpQ6iTMiF6FtST1

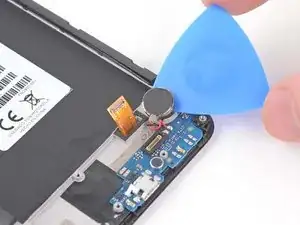

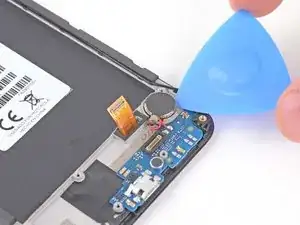

    • Use an opening pick to peel the vibration motor off the frame.

  15. PxQheLyRkqdBEhSG
    PxQheLyRkqdBEhSG
    fH5qjQoaJwnLsvqi
    dHBGMg6mkHGAaL1w
    • Use an opening pick to peel the daughterboard assembly off the frame starting from the left edge.

    • Insert an opening pick under the bottom right edge to cut the remaining adhesive.

  16. yf2GQAgllgY6bZTc
    • Remove the daughterboard assembly which includes the vibration motor and the charging port.

  17. uwHZGd5HSDkEsroj
    uwHZGd5HSDkEsroj
    OjiN3dZGDAJs2MnC
    wvaRyCJXUJmahVuI
    • Use a spudger or your fingernail to remove the Micro SD card, the Micro SIM card, and the Nano SIM card.

  18. lGwgFxebNgUpnuQh
    lGwgFxebNgUpnuQh
    kIvdnvgQCh2rVXf5
    • Use a pair of tweezers to remove the sticker covering the screw below the audio jack port.

  19. OHoPOpPEquDWcaec
    • Use a Torx T3 driver to remove the five 3.6 mm-long screws securing the motherboard cover to the frame.

    • Use a Phillips screwdriver to remove the two 3.1 mm-long screws.

  20. BWPrtdaAVWO5RPpX
    BWPrtdaAVWO5RPpX
    hFBR3laZsKbZTPax
    • Use a pair of tweezers to peel back the sticker covering the volume buttons.

  21. w6rD454ZoVj3g1SK
    w6rD454ZoVj3g1SK
    KLxijQmxa4ewhmFO
    xLCu5QiQxYGR14wI
    • Use an opening tool to release the clip to the left of the motherboard flex cable.

  22. rInXuBCGak1nGlXJ
    rInXuBCGak1nGlXJ
    QT1ppdU5SamqRHoC
    • Insert a spudger along the left edge of the motherboard cover to loosen the clips.

  23. 5tSEBLl2W61ZVPnx
    5tSEBLl2W61ZVPnx
    gN1eHaLdqjqOGL2Q
    drMgmw1l51TcXbaF
    • Use an opening tool to release the clip next to the rear cameras.

  24. vWgttUuUodBpND4u
    vWgttUuUodBpND4u
    mrsMbZONRZLrMC6A
    rBrSUf3BhWVbLVEd
    • Use a pair of tweezers to peel off the sticker on the top edge of the motherboard cover.

  25. fXMAmOPvZZfWBkHu
    fXMAmOPvZZfWBkHu
    bW2SjLKcVFPpZ2Xh
    • Use a spudger to lift up the left edge of the motherboard cover to loosen the clips.

  26. YQjRqhHihlVlbDkd
    YQjRqhHihlVlbDkd
    L1sZNIOUNj3prxmw
    • Use a spudger to push and dislodge the fingerprint sensor off of the motherboard cover.

    • The fingerprint sensor is secured to the underside of the motherboard cover with some light adhesive.

  27. fKhwucxnSa4RnjkZ
    fKhwucxnSa4RnjkZ
    IcWjNJDOs4CDgX4l
    y44S1YSREoYwjDUe
    • Use your fingers to twist the motherboard cover counterclockwise to release the clips securing the motherboard cover.

  28. ZoHgLHWcUWOhnBAb
    ZoHgLHWcUWOhnBAb
    HGrmSPkM1D3uHscH
    • Remove the motherboard cover.

  29. QDVsOh5LXJE4RJ2Q
    QDVsOh5LXJE4RJ2Q
    ytGQBWco5CKiiQwS

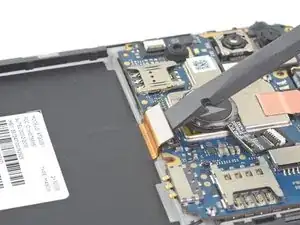

    • Use the flat end of a spudger to disconnect the motherboard flex cable by lifting straight up on the press connector.

  30. FwBLTdIHB1YNHP4P
    FwBLTdIHB1YNHP4P
    MNrCg5BwumuZWeE4
    PQlVkEKsZDFUCcA3

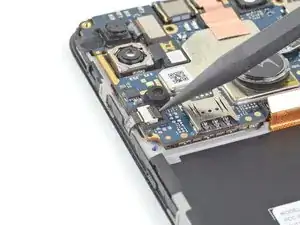

    • Use the tip of a spudger, an opening tool, or your fingernail to flip up the small, hinged locking flap on the button ZIF connector.

    • Use a pair of tweezers to pull the button ribbon cable straight out of the connector.

  31. Cw2Y4PugadrTGEkH
    Cw2Y4PugadrTGEkH
    2bLEHlqnKAtWFVZP
    fuPDrLvIwvcZMHFJ

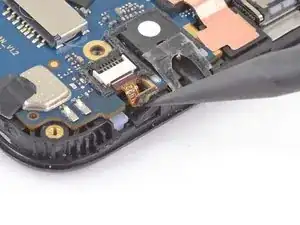

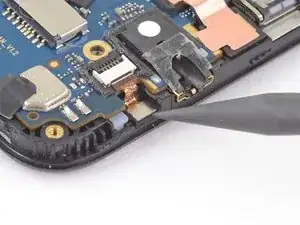

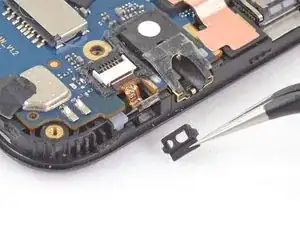

    • Use the pointed end of a spudger to pry the IR sensor out of the frame.

    • Remove the IR sensor gasket from the frame.

  32. JYlCNe3GeFojyYMk
    JYlCNe3GeFojyYMk
    bANLmncGyjWL1eIo

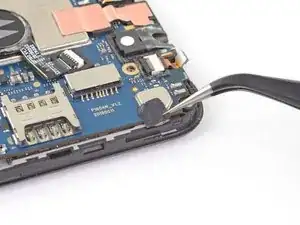

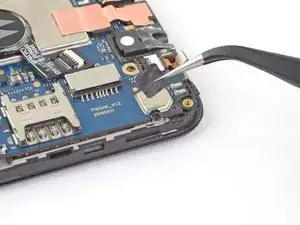

    • Use a pair of tweezers to peel off the tape covering the right motherboard screw.

  33. np2LH1Wxcj5nC4go
    np2LH1Wxcj5nC4go
    vhuwMmFIouaxfFGX

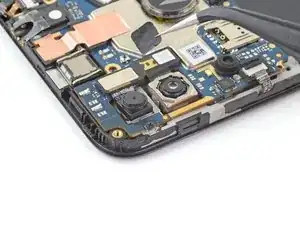

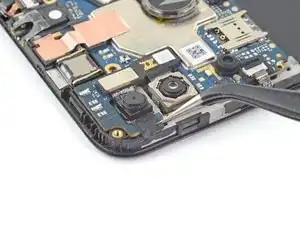

    • Use a pair of tweezers to peel off the tape covering the left motherboard screw.

  34. ePX1cHwycymeguRW

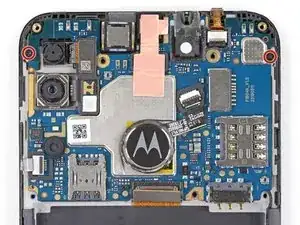

    • Use a Phillips screwdriver to remove the two 3.1 mm-long screws securing the motherboard to the frame.

    • Do not attempt to completely remove the motherboard until the coaxial cable is disconnected.

  35. 3LrqgBiQLjeQDPSS
    3LrqgBiQLjeQDPSS
    iMXZv5SVSFjcjsoE
    BIjMFHgyiO1Mbtio

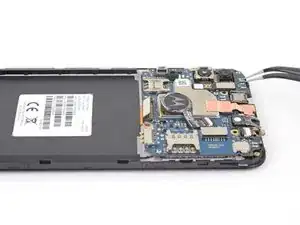

    • Flip the motherboard assembly over.

  36. Vy4JBtNPA3jlSMeZ
    Vy4JBtNPA3jlSMeZ
    2cEn6n5TLXSOQYBN

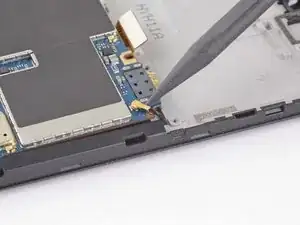

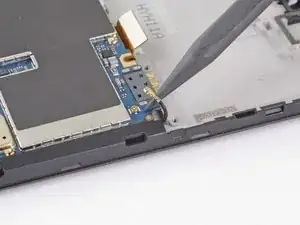

    • Use the pointed end of a spudger to disconnect the coaxial cable by prying up on the cable as close to the connector as possible.

  37. lRic5xuJGcxUJV6r
    • Remove the motherboard.

  38. rAlKpWIdFkGo3V2o
    rAlKpWIdFkGo3V2o
    DTShpJbv3ru6nw3Q
    SPJD1i4Jajgkiauv

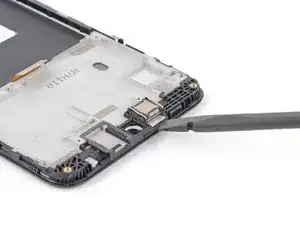

    • Insert the flat end of a spudger underneath the earpiece speaker to separate it from the frame.

    • Remove the earpiece speaker.

  39. dJGBkkQCFTQvTHTs
    dJGBkkQCFTQvTHTs
    cIBloXqo3qFWaGFy
    KDRsA2JLMUKvWEfP

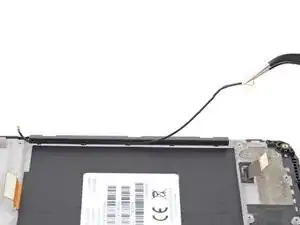

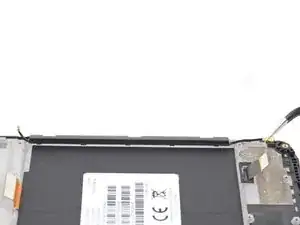

    • Pull the coaxial cable out of its clips on the right side of the frame.

  40. Bu2ixXkO11JAB3Gq
    • Only the display assembly remains.
