Follow this guide to remove or replace the fingerprint sensor in a Motorola Moto E6 Plus.
Werkzeuge
-
-
Use an opening tool or your fingernail to pry the back cover away from the frame using the notch at the bottom right corner.
-
-
-
Use an opening tool or your fingernail to release the clips on the right edge by sliding up and around the top right corner.
-
-
-
Continue to slide the opening tool or your fingernail across the top edge to release the clips securing the back cover to the frame.
-
-
-
Continue to slide the opening tool or your fingernail down the left edge to release the clips.
-
-
-
Use a spudger or your fingernail to remove the Micro SD card, the Micro SIM card, and the Nano SIM card.
-
-
-
Use a pair of tweezers to remove the sticker covering the screw below the audio jack port.
-
-
-
Use a Torx T3 driver to remove the five 3.6 mm-long screws securing the motherboard cover to the frame.
-
Use a Phillips screwdriver to remove the two 3.1 mm-long screws.
-
-
-
Use your fingers to twist the motherboard cover counterclockwise to release the clips securing the motherboard cover.
-
-
-

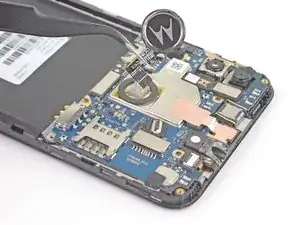

Use the tip of a spudger, an opening tool, or your fingernail to flip up the small, hinged locking flap on the fingerprint sensor ZIF connector.
-
Pull the fingerprint sensor ribbon cable straight out of the connector to remove it.
-
Remove the fingerprint sensor.
-
To reassemble your device, follow these instructions in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
