Einleitung

Follow this guide to remove or replace the motherboard in a Motorola Moto E6 Plus.

  1. DV5tZdENiPJTQAHr
    DV5tZdENiPJTQAHr
    ZLVwPhhuVLkUM2so
    • Use an opening tool or your fingernail to pry the back cover away from the frame using the notch at the bottom right corner.

  2. J1BapQcYH4yMlOdj
    J1BapQcYH4yMlOdj
    mxJsqtHuwRJjNBR6
    l52kFOQjHdakutLa
    • Use an opening tool or your fingernail to release the clips on the right edge by sliding up and around the top right corner.

  3. P5IvPvDtn3JNoxHK
    P5IvPvDtn3JNoxHK
    EYwJhkTXPJ3MbcVO
    • Continue to slide the opening tool or your fingernail across the top edge to release the clips securing the back cover to the frame.

  4. NTONYYaIPIFSexev
    NTONYYaIPIFSexev
    UkfubXkAXUxqBxaZ
    • Continue to slide the opening tool or your fingernail down the left edge to release the clips.

  5. vgbAQyZt4TIpUmH5
    vgbAQyZt4TIpUmH5
    thBYeufEmQbjUgPt
    GBiAVjADV4gXNKQY
    • Remove the back cover.

  6. uwHZGd5HSDkEsroj
    uwHZGd5HSDkEsroj
    OjiN3dZGDAJs2MnC
    wvaRyCJXUJmahVuI
    • Use a spudger or your fingernail to remove the Micro SD card, the Micro SIM card, and the Nano SIM card.

  7. lGwgFxebNgUpnuQh
    lGwgFxebNgUpnuQh
    kIvdnvgQCh2rVXf5
    • Use a pair of tweezers to remove the sticker covering the screw below the audio jack port.

  8. OHoPOpPEquDWcaec
    • Use a Torx T3 driver to remove the five 3.6 mm-long screws securing the motherboard cover to the frame.

    • Use a Phillips screwdriver to remove the two 3.1 mm-long screws.

  9. BWPrtdaAVWO5RPpX
    BWPrtdaAVWO5RPpX
    hFBR3laZsKbZTPax
    • Use a pair of tweezers to peel back the sticker covering the volume buttons.

  10. w6rD454ZoVj3g1SK
    w6rD454ZoVj3g1SK
    KLxijQmxa4ewhmFO
    xLCu5QiQxYGR14wI
    • Use an opening tool to release the clip to the left of the motherboard flex cable.

  11. rInXuBCGak1nGlXJ
    rInXuBCGak1nGlXJ
    QT1ppdU5SamqRHoC
    • Insert a spudger along the left edge of the motherboard cover to loosen the clips.

  12. 5tSEBLl2W61ZVPnx
    5tSEBLl2W61ZVPnx
    gN1eHaLdqjqOGL2Q
    drMgmw1l51TcXbaF
    • Use an opening tool to release the clip next to the rear cameras.

  13. vWgttUuUodBpND4u
    vWgttUuUodBpND4u
    mrsMbZONRZLrMC6A
    rBrSUf3BhWVbLVEd
    • Use a pair of tweezers to peel off the sticker on the top edge of the motherboard cover.

  14. fXMAmOPvZZfWBkHu
    fXMAmOPvZZfWBkHu
    bW2SjLKcVFPpZ2Xh
    • Use a spudger to lift up the left edge of the motherboard cover to loosen the clips.

  15. YQjRqhHihlVlbDkd
    YQjRqhHihlVlbDkd
    L1sZNIOUNj3prxmw
    • Use a spudger to push and dislodge the fingerprint sensor off of the motherboard cover.

    • The fingerprint sensor is secured to the underside of the motherboard cover with some light adhesive.

  16. fKhwucxnSa4RnjkZ
    fKhwucxnSa4RnjkZ
    IcWjNJDOs4CDgX4l
    y44S1YSREoYwjDUe
    • Use your fingers to twist the motherboard cover counterclockwise to release the clips securing the motherboard cover.

  17. ZoHgLHWcUWOhnBAb
    ZoHgLHWcUWOhnBAb
    HGrmSPkM1D3uHscH
    • Remove the motherboard cover.

  18. JxxI5PMOM11hYC4A
    JxxI5PMOM11hYC4A
    6KOyTWCHvlaUlEFx
    • Use a pair of tweezers to peel back the tape securing the front camera to the motherboard.

  19. X3nwpJxQA4YqoEuE
    X3nwpJxQA4YqoEuE
    BZYSxDnmmcotcgne
    Fqxl51GMBQ1ZymLI
    • Use the flat end of a spudger to lift the front camera's press connector straight up to disconnect it from the motherboard.

    • Remove the front camera.

  20. LHhD2rYZTQwc4mKU
    LHhD2rYZTQwc4mKU
    pjTTCIRdguSEjHEx
    BDpUUvTJWO3J5y1E

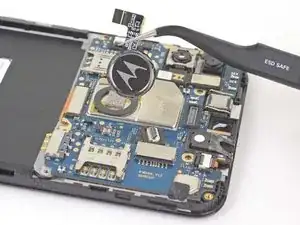

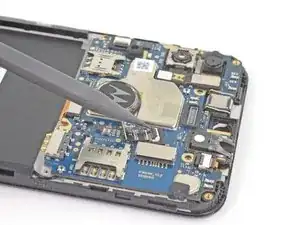

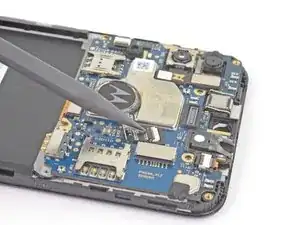

    • Use the tip of a spudger, an opening tool, or your fingernail to flip up the small, hinged locking flap on the fingerprint sensor ZIF connector.

    • Pull the fingerprint sensor ribbon cable straight out of the connector to remove it.

    • Remove the fingerprint sensor.

  21. sPRPNjjhSUUtTSKc
    sPRPNjjhSUUtTSKc
    lDInXMtfF2aEwWe5
    SOxMfvqx4dfTYeyG

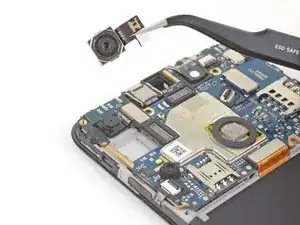

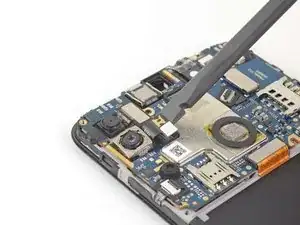

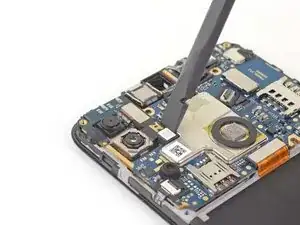

    • Use the flat end of a spudger to disconnect the rear camera from the motherboard by lifting straight up on the press connector.

    • Remove the rear camera.

  22. ZmhUPvKj6jgGFiIO
    ZmhUPvKj6jgGFiIO
    n2g5KPfwp6BLdLbN
    JKx2owBtb6PdfrXm

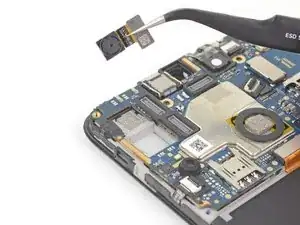

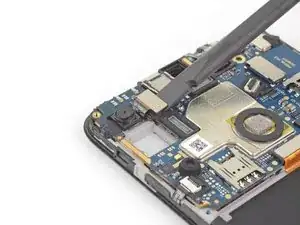

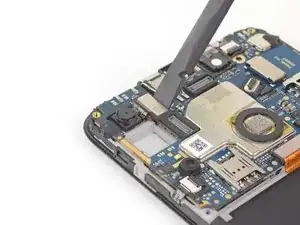

    • Use the flat end of a spudger to disconnect the depth information camera from the motherboard by lifting straight up on the press connector.

    • Remove the depth information camera.

  23. fd32UOWfiSZKokGT
    fd32UOWfiSZKokGT
    HP2jOD4ttPcKh3lZ
    L1m34J4YTPJkWNKi

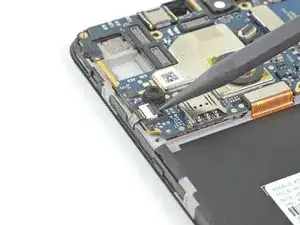

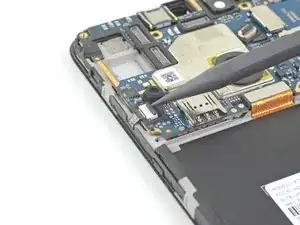

    • Use the tip of a spudger, an opening tool, or your fingernail to flip up the small, hinged locking flap on the button ZIF connector.

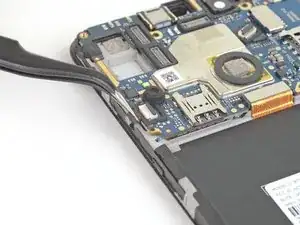

    • Use a pair of tweezers to pull the button ribbon cable straight out of the connector.

  24. sIXQxU5QBYJMmSLV
    sIXQxU5QBYJMmSLV
    w61eHNDQMSLDIWlj

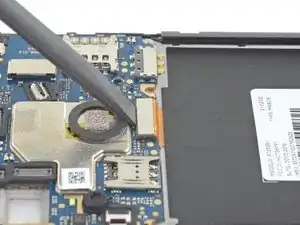

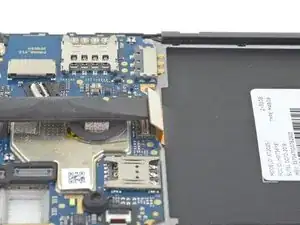

    • Use the flat end of a spudger to disconnect the motherboard flex cable by lifting straight up on the press connector.

  25. ECqILGMFAtvSumna
    ECqILGMFAtvSumna
    4ORu1hYqcJku2XJZ

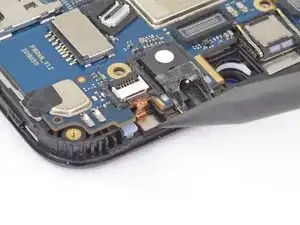

    • Use the pointed end of a spudger to pry the IR sensor out of the frame.

    • Remove the IR sensor gasket from the frame.

  26. N1xAEKPb3CfaROWd
    N1xAEKPb3CfaROWd
    ofH5h5TqNnXGfsEM

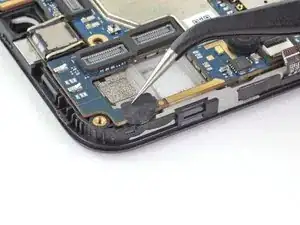

    • Use a pair of tweezers to peel off the tape covering the right motherboard screw.

  27. PIGjraYs5nXGfgbT
    PIGjraYs5nXGfgbT
    oMRNnLlctKFXrQad

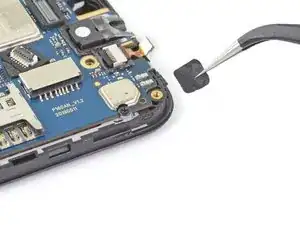

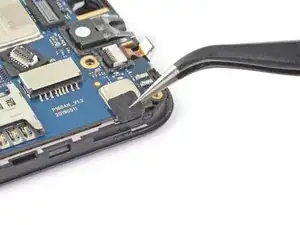

    • Use a pair of tweezers to peel off the tape covering the left motherboard screw.

  28. skvWdthRgbE4iPRX

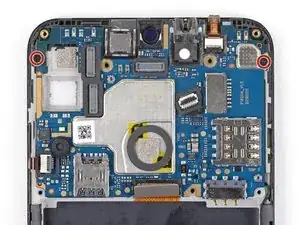

    • Use a Phillips screwdriver to remove the two 3.1 mm-long screws securing the motherboard to the frame.

    • Do not attempt to completely remove the motherboard until the coaxial cable is disconnected.

  29. iYI2VJDvDNZWyFtZ
    iYI2VJDvDNZWyFtZ
    vqqOmnfgUNg6ibCE
    ocYFjBsUEAvYwRsn

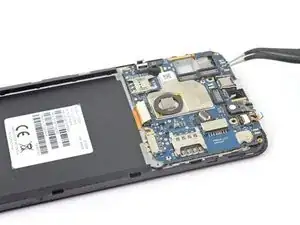

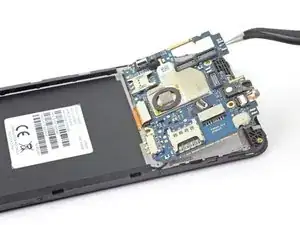

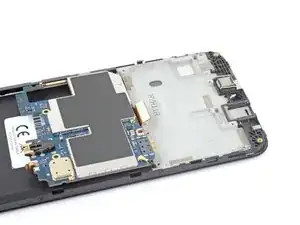

    • Flip the motherboard assembly over.

  30. luWbNRBHHMkpsFNV
    luWbNRBHHMkpsFNV
    JaMCxqar4RvlcFXj

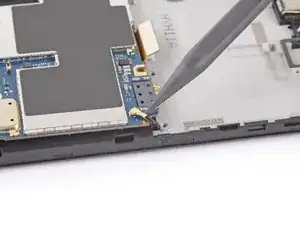

    • Use the pointed end of a spudger to disconnect the coaxial cable by prying up on the cable as close to the connector as possible.

  31. wJ3cjuagSswnMnBX

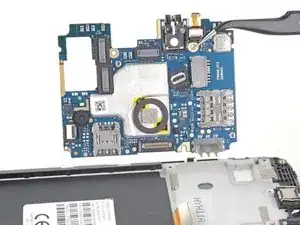

    • Remove the motherboard.

  32. IwcnP4Qd51aMFi65
    IwcnP4Qd51aMFi65
    4YPWxYwCsrZMZAKD

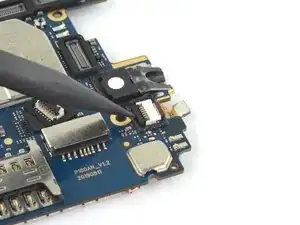

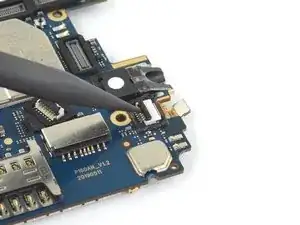

    • Use the tip of a spudger, an opening tool, or your fingernail to flip up the small, hinged locking flap on the IR sensor ZIF connector.

  33. o3JQe3pF4IIWHrJZ
    o3JQe3pF4IIWHrJZ
    M13NOObMDmYHbJxk

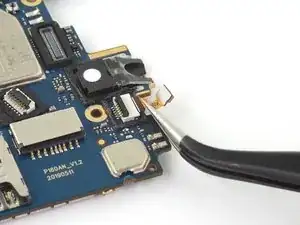

    • Use a pair of tweezers to pull the IR sensor ribbon cable straight out of the connector.

    • Only the motherboard remains.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Motorola Moto E6 Plus Answers community for help.
