Motorola Moto E6 Speaker Replacement

Geschrieben von: Isaac Patterson
  • Kommentare: 0
Motorola Moto E6 Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

30 - 45 Minuten

Einleitung

The speaker in the Motorola Moto E6 can be replaced by following this guide. The speaker should be replaced if it is visually damaged or if it fails to produce sound. The speaker should also be replaced if the user notices a lack of volume or pitch of the sound coming from the speaker.

  1. 5DLybpmrS5JLDGOb
    5DLybpmrS5JLDGOb
    EjyLcSxeRZN3cTRi

    • Begin by prying open the bottom right of the device using the plastic opening tool.

    • Work your way around the edge of the device, slowly prying open the casing until it pops off.

  2. NJwmxmXAKbTQ3V21

    • Use the opening tool on the divot located below the battery to pop it out.

  3. T2WgTxQP4jpVDYde

    • Remove the eleven 3.8 mm T4 Torx screws located above the battery compartment.

  4. NbwZQZSSFfUJYen5

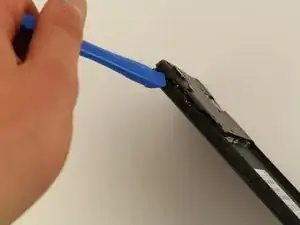

    • Use the plastic opening tools to pry open the piece located at the top of the device.

    • Start by prying open the side of the compartment and work your way towards the camera module, prying open the compartment as you go.

    • Pop off the piece above the battery compartment.

  5. SmrJKhL5OMLR2eHA
    SmrJKhL5OMLR2eHA
    OTWDoloGAwKy5uBr
    i4VUS4olqxDEQn6E

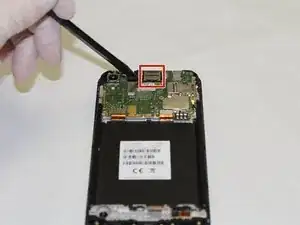

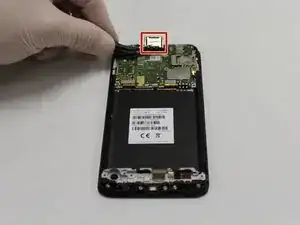

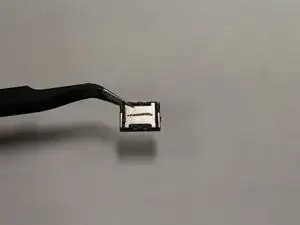

    • Using tweezers, lift the speaker from the motherboard located at the top of the device.

    • When replacing with a new component, make sure the clips are facing towards the user.

Abschluss

To reassemble your device, follow these instructions in reverse order.
