Motorola Moto G 1st Generation Headphone Jack Replacement

Geschrieben von: Radostin Lobodov
  • Kommentare: 0
Motorola Moto G 1st Generation Headphone Jack Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

15 - 20 Minuten

Einleitung

  1. LZJpYQyUos3hnTBT
    LZJpYQyUos3hnTBT
    DPyGkBSSSIHOnNKd
    wfWTNEXLwL1RmAY4

    • Before you start following any of the steps of this guide, completely turn the device off.

    • Take the plastic back cover off by either using a plastic Pry tool or simply using your hands. Start from the bottom by the charging port

  2. QvK3SEKZeZDLXkVl

    • Unscrew the 3.5mm screws, total of 14, located on the back protective cover by using a T5 Torx screwdriver.

  3. Mi4RIFB2aqACIqLa
    Mi4RIFB2aqACIqLa
    EU1lhYE114runpUl

    • Use a plastic opening tool to remove the protective cover.

    • Carefully work the plastic tool around all the edges of the phone.

    • The protective cover holds the Volume and the Home buttons which might fall off the assembly when the cover is removed.

  4. iOMjbhpTluedhUMw
    iOMjbhpTluedhUMw
    FoHQjvKFSTiRv5ic
    fQJbiykaNf6DqRgB

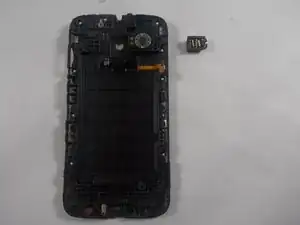

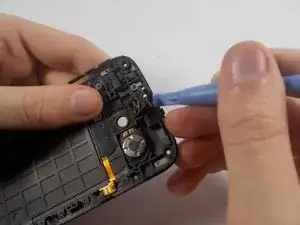

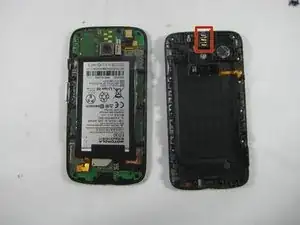

    • Use the plastic opening tool to remove the Headphone Jack from the protective cover and replace it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
