Einleitung

This guide demonstrates how to remove and replace the earpiece speaker in your 2022 Motorola Moto G.

  1. NKjoEComdv2MdJmd
    NKjoEComdv2MdJmd
    dBPHOnZgJb6xpqGO
    • Insert a SIM card eject tool or a straightened paperclip into the hole adjacent to the SIM card tray.

    • Press firmly to eject the tray.

  2. D4RxQbF1fTB33daD
    • Remove the SIM card tray from the phone.

    • When reinserting the SIM card, make sure it's in the proper orientation inside the tray.

  3. pnJcQsI5eCb34MMJ
    pnJcQsI5eCb34MMJ
    dqgqbFkoZEnrdw5i
    • Discharge your battery to 25% or less and completely power off your phone before you begin.

    • Take note of the following seams along the edge of the phone:

    • Screen seam: This seam separates the display panel from the frame. Don't pry at this seam.

    • Bezel seam: This is where the plastic back cover meets the rest of the phone. It's held in place by plastic clips. This is where you should pry.

  4. p2QPjU1W5ZFUHbaC
    p2QPjU1W5ZFUHbaC
    emVYA3ZFqdlpm3wf
    VTaSCciLcUlM4fNM
    • Insert an opening tool in the bezel seam halfway between the bottom-right corner of the phone and the power button.

    • Insert an opening pick in the gap you just created.

  5. sdMquhqj1vHiXeHH
    sdMquhqj1vHiXeHH
    F1ZppJrCsJrqdrST
    • Slide your opening pick toward the bottom-right corner of the back cover and release the clips.

    • As each clip releases, you will hear and feel a pop.

    • Don't slide the opening pick near the power or volume buttons.

  6. rLMBJWOYEonqdUWp
    rLMBJWOYEonqdUWp
    CEDDSfjrL3dJhTeb
    • Continue sliding your opening pick towards the bottom left corner to unclip the bottom edge of the back cover.

  7. MqjGiZmgocCFNZoD
    MqjGiZmgocCFNZoD
    IdTOPPFl1bcp2t5g
    gfeeOoudV4eHjSHP
    • Slide your opening pick toward the top left corner to unclip the left side of the back cover.

  8. VSev2IPQuS3iOIen
    VSev2IPQuS3iOIen
    JCNkNPmYbrobeGjc
    • Slide your pick around the top left corner and along the top edge to release the clips.

  9. JZrk5GTAVKBOmivU
    JZrk5GTAVKBOmivU
    P21AXlpOYSnVIiJc
    • Slide your pick around the top right corner to release the last clips securing the back cover.

    • Stop before reaching the volume buttons. Your pick may damage their cables.

  10. UdOZASCloZKTlXWy
    UdOZASCloZKTlXWy
    NgVMITKQUHXMkGYf
    INcuBZqA2CdniQEE
    • Don't try to remove the back cover all the way yet, as it's still connected to the frame by the power button cable.

    • With SIM card slot facing you, swing the back cover open and away from you like you're opening a book.

    • Rest the cover parallel to the frame.

    • Don't twist the screen or move it too far away from the frame to avoid damaging the power button cable.

  11. W4wktAxoXvaC1f5T
    W4wktAxoXvaC1f5T
    uCcOncYVTIBFvoWf
    • A small rubber arm connects the power button to its recess. Use caution to avoid tearing this piece.

    • Use tweezers or your fingers to unhook the power button's rubber arm from its recess and remove it.

  12. JoV3ShXgFTByJEoU
    • You're now left with the back cover.

    • This is a good point to test your phone before sealing it up. Follow this guide to perform a hardware test. Be sure to power your phone back down completely before you continue working.

  13. Lg162OXPZvaDNayS
    Lg162OXPZvaDNayS
    iYTKK6CfPtiFYkuN
    • Use a PH00 screwdriver to remove the two 3.9 mm-long screws securing the power button cable bracket.

  14. Z5PIqugcTt2S6UgM
    Z5PIqugcTt2S6UgM
    1fT2xwRohAd6OD1p
    • Use your fingers or a pair of blunt nose tweezers to grab and remove the bracket from the power button cable.

  15. gVaSod3wAHofDYOJ
    gVaSod3wAHofDYOJ
    YfLChWhEPmtILCrf
    • Use the pointed end of a spudger to pry up and disconnect the power button's press connector.

  16. cTtduLSI4kHPKXAW
    cTtduLSI4kHPKXAW
    UYREO6ToOBPFIuLn
    • Grab and remove the power button.

    • If you're using tweezers, take care not to puncture the battery—a punctured battery may leak dangerous chemicals or cause a fire.

  17. a4RPQCqSDyIQcDT2
    a4RPQCqSDyIQcDT2
    CYLHrbdbpcjG5iNp
    • Use your Phillips screwdriver to remove the eight 3.9 mm-long screws securing the motherboard cover.

  18. 3OjF5weaLdy3hjiy
    3OjF5weaLdy3hjiy
    GhMbhQoLPQVYPY6i
    • Insert an opening pick between the bottom-left corner of the cover and the motherboard.

    • Pry up to release the cover's small clips securing it to the frame.

    • Don't pry against the battery. Use protrusions in the frame for leverage.

    • Work your way around the perimeter to free the cover if it feels stuck.

  19. FSidj6TXerMDEHmV
    FSidj6TXerMDEHmV
    KYy6GbhA4MMmnQnM
    gqVKIyACj24HYbew
    • Grab and remove the motherboard cover from the phone.

    • If you're using tweezers, take care not to puncture the battery—a punctured battery may leak dangerous chemicals or cause a fire.

  20. bNCIZLOP5H3oRxel
    bNCIZLOP5H3oRxel
    VE3iiSVWr36YeBu2
    • Use the pointed end of a spudger to pry and disconnect the battery's press connector.

    • To re-attach press connectors like this one, carefully align and press down on one side until it clicks into place, then repeat on the other side. Don't press down on the middle. If the connector is misaligned, the pins can bend, causing permanent damage.

  21. DQy3xDMXIohf26Gv
    DQy3xDMXIohf26Gv
    PqSVagnEFHUU5ONL
    DigZgWZVPYBHlucx

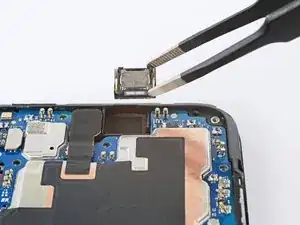

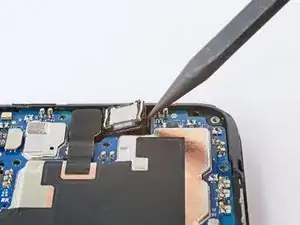

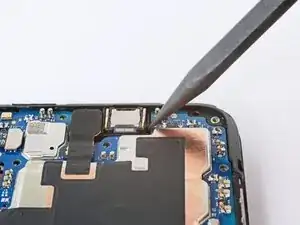

    • Insert the point of a spudger into the small gap on the lower right side of the earpiece speaker's recess.

    • Pry up on the speaker and remove it.

  22. 1O3erfQTfFOiKCfU
    1O3erfQTfFOiKCfU
    YGuQEtJAwrWUUhb5
    HGKYaHE6lwLbvcfw

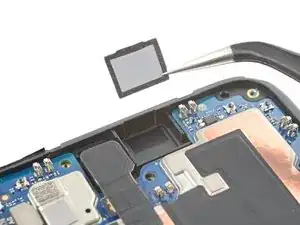

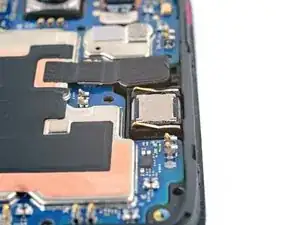

    • Note the orientation of the earpiece speaker. Ensure that the raised side of the connectors are toward the bottom of the device.

    • Don't install the earpiece speaker without its mesh in the frame. Transfer the mesh from your old part, if needed.

Abschluss

To reassemble your device, follow these instructions in reverse order. Apply new adhesive where necessary after cleaning the relevant areas with isopropyl alcohol (>90%).
