Motorola Moto G4 Play Screen Replacement

Geschrieben von: Michael Cottone
  • Kommentare: 3
Motorola Moto G4 Play Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

  1. nHEIguMCejZCWtyU

    • Remove back plate starting with this tab

  2. nFl1EUAoMoxPyDVJ

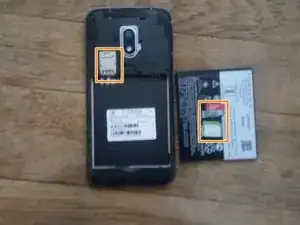

    • remove battery

    • remove SD card and sim card

  3. 2qx1lxYjp3TWXmqC
    2qx1lxYjp3TWXmqC
    1PrdOHWwJ1IMTgfY

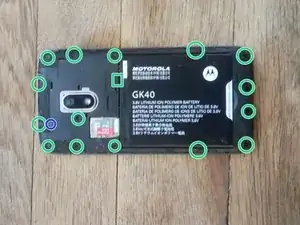

    • remove 16 phillips 00 screws

    • the two screws on either side of the battery (red color on thread) are shorter than the other screws (blue color on thread)

    • don't forget this one hiding underneath this sticker

    • no screw here

    • remove the inner back plate

  4. HJMHZXKAQksknsSP
    HJMHZXKAQksknsSP
    ERBd2lJQaNYdFkRe
    C2KlnfUPvGhVhuPY

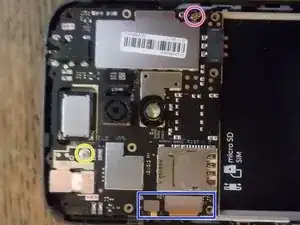

    • disconnect antenna cable from motherboard with a spudger.

    • disconnect screen and digitiser cables with a spudger.

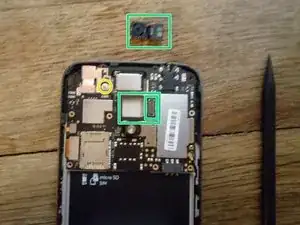

    • remove rear facing camera with a spudger

    • remove phillips 00 screw

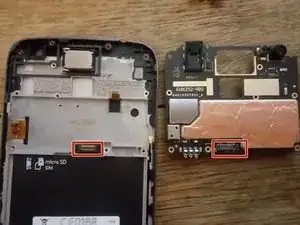

    • Remove motherboard. this cable is still connected, you must disconnect it as you remove the motherboard.

    • There is a cable attached to the bottom of the motherboard, be careful when removing it

  5. bVWBmTjWL36YAVvB
    bVWBmTjWL36YAVvB
    THEO52l14vtHanst

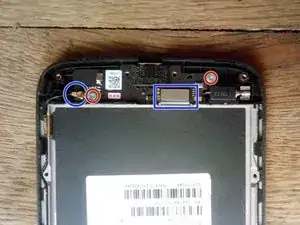

    • disconnect antenna and data cable

    • remove philips 00 screws

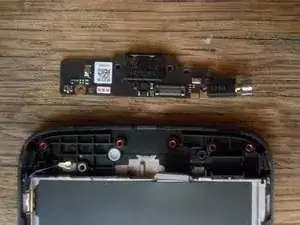

    • Remove usb board and vibrator together.

    • vibrator is attached to usb board from the bottom, be careful and remove them together to prevent damage.

  6. iFrkkfyCXDygHFVl
    iFrkkfyCXDygHFVl
    eBRNBYpdxpRVtDTC

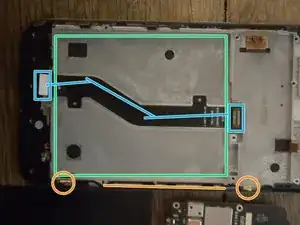

    • Peel off black sticker under battery compartment.

    • peel off data cable

    • remove antenna wire

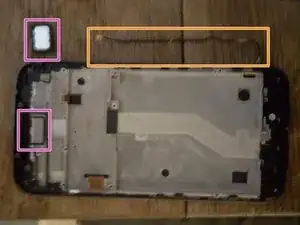

    • remove speaker

Abschluss

To reassemble your device, follow these instructions in reverse order.
