Einleitung
Follow this guide to remove and replace the USB board.
Werkzeuge
-
-

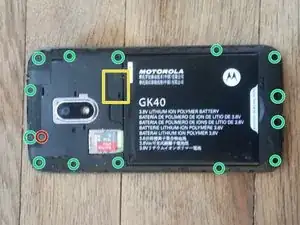

remove 16 00 philips screws
-

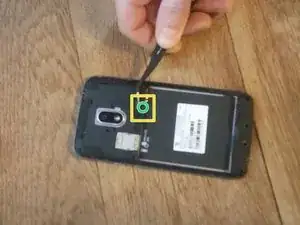

pull up sticker with tweezers to reveal the last screw
-
no screw here
-

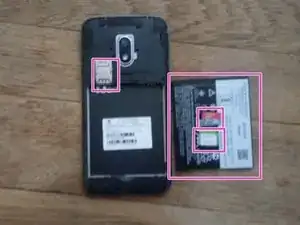

remove battery sd card, and sim card
-
-
-

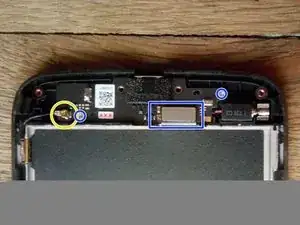

disconnect antenna with spudger
-
disconnect data cable with spudger
-
Remove 2 00 philips screws
-
carefully remove USB board and vibrator together
-

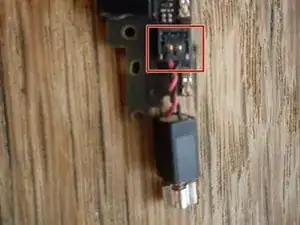

disconnect vibrator from board with spudger.
-

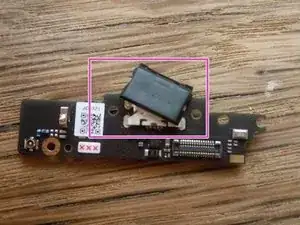

Pull the rubber support gasket off of the old usb port.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
