Motorola Moto G5s Plus Battery Replacement

Geschrieben von: Kevin George
  • Kommentare: 6
Motorola Moto G5s Plus Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

18

Zeitaufwand

20 Minuten

Einleitung

The battery in the Motorola Moto G5s is sealed inside the phone housing. In the instance that you have to replace a faulty battery, there is a specific procedure that you have to follow.

  1. TWjZNO4WB2xuOcRO
    TWjZNO4WB2xuOcRO
    jGIejZcMLSRskM5o
    iDAoBjHArvepaW5i

    • Power off the phone before you begin.

    • Bring the heat gun one to two inches from the edges of the display to melt the display adhesive.

    • Spend equal amounts of time applying heat around the entire edge of the phone.

    The screen is not coming off. I have set the temperature at 125 Celsius on my smd rework station and have tried heating up to 3 minutes. I am focusing heat on the lower part. The Adhesive doesn't become loose even a bit. I do not want to increase temperature further or heat for a longer time period before asking experts. Does moto g5 sPlus use a stronger adhesive?

    Sahil Singh -

  2. JkXZAMXPYUvLbbA2
    JkXZAMXPYUvLbbA2
    Aoqut6UOcKTBxEFd

    • Attach the suction cup to the display slightly to the left of center.

    • Exert a moderate force to pull on the suction cup. The display will come loose.

  3. MGPDWHxTl4ucqKTt
    MGPDWHxTl4ucqKTt
    g4cpUwQGqkupjrEL
    4USE3UBEr4FvLoHf

    • Insert the opening tool inside the loosened edge.

    • Gradually work the opening tool around the edge of the entire screen to cut through the adhesive.

    • Do not wedge the opening tool too far beneath the screen. Using too much force can result in torn connector cables.

    Note that the adhesive is much wider at top and bottom than along the sides. Cut deeper there, except for the fingerprint sensor.

    Mark I -

  4. uynPy1UuAOeenYNZ
    uynPy1UuAOeenYNZ
    I4nmC5VPFIiVUADc
    q54otXfABE41qt1p

    • The display should now be entirely loose, attached only by the connectors at the top of the device and the fingerprint sensor connector at the bottom of the device.

    • Press down on the fingerprint sensor with the display slightly raised to disconnect it from the display.

    • If the fingerprint sensor does not come loose, use the heat gun to loosen its adhesive.

  5. rRIcLVEiGaBtdYY1
    rRIcLVEiGaBtdYY1
    LUkShGhh4sRyIMxj

    • The cables at the top of the device are fragile. If you are using this guide as a prerequisite for replacing another part, be careful not to tear the cables while lifting the screen.

    • Remove the one 5mm Torx-5 screw located by the connector cables in the top right corner of the device.

  6. MpKJ1eEXSXsRMehQ
    MpKJ1eEXSXsRMehQ
    KDmWhUZ2MihMFqEe

    • Grab the unscrewed metal plate with your blunt tweezers.

    • Slide the metal plate to the left and then out to remove it.

    • Removing the plate will expose the display assembly's connection to the phone's motherboard.

  7. 2Cv6RVjesQeVQY36
    2Cv6RVjesQeVQY36
    YsSpLG6mpYBCDBuI

    • Disengage the two cable connectors by gently prying beneath the edge of the connector with the opening tool.

  8. jFhYFNIb3ZoHPnGt
    jFhYFNIb3ZoHPnGt
    YvCFMeJLrtobnysS

    • Lift up the detached right connector from its housing using blunt tweezers.

    • The housing has light adhesive underneath it. Use a small amount of force to remove the connector from the housing.

  9. PK1RYQUpbfjBeRAP

    • Remove the nine black 5mm Torx-5 screws.

    • Remove the seven silver 5mm Torx-5 screws.

    it took me an hour just to get the display open and I ended damaginging up the screen in the process so I do not recommend anyone doing it by themselves unless they are ok with wasting money on a new battery and the phone.

    George Jetson -

  10. LOWHsRMiuxDI51EC
    LOWHsRMiuxDI51EC
    vUVsXxOnNAETOJVI

    • Remove the metal cover by prying underneath it with the opening tool.

  11. vKnYnrCUJvfwlByG
    vKnYnrCUJvfwlByG
    RbXj5V6QKfspf3VZ
    hIQtRTrDVGbidjoN

    • Grab ahold of the fingerprint sensor and push it through the opening in the metal cover.

  12. in5GaU5ALurGerOf
    in5GaU5ALurGerOf
    dOEruDOvtYX6CufO

    • Remove the fingerprint connector by gently prying underneath the connector with the opening tool.

  13. HqAV2XcP54yVVK5c

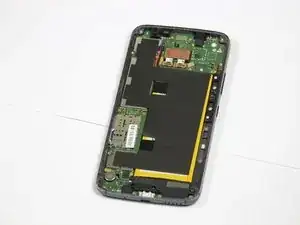

    • The battery is now fully exposed and ready to be removed.

  14. sHi4MhfdZFQ6BYUm
    sHi4MhfdZFQ6BYUm
    JdZ1sq24a5iCNXDb

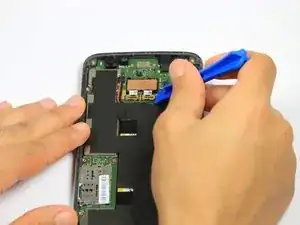

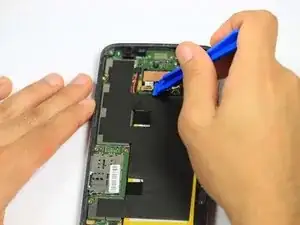

    • Use the opening tool to remove the two metal connectors located above the battery.

    • Apply a gentle upward pressure to loosen the metal plates.

    These connectors are for the cameras. There’s no need to remove them if you are simply replacing the battery. Step 14 can be deleted.

    Nigel Giles -

  15. 4OrMaA5cciC3ENUR
    4OrMaA5cciC3ENUR
    tcerMwSdWHhsDbED
    KgKgHRLvOrnSmtlL

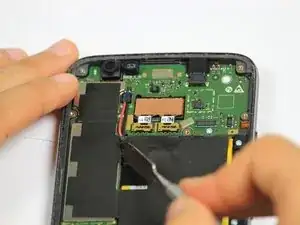

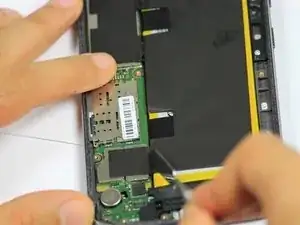

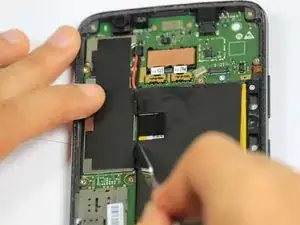

    • Using the spudger, cut downwards along the black tape on left side of the battery.

  16. kKfhQNeLP3NdF3oQ

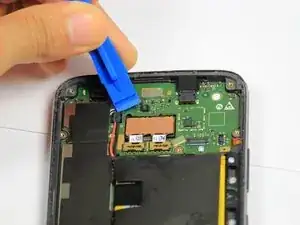

    • Use the opening tool to disengage the black connector located above the battery.

  17. dF1OMYBo2y1rUrks

    • Heating up the battery excessively could cause the battery to ignite

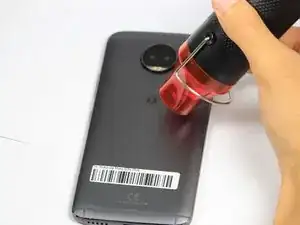

    • Use the heat gun along the back of the phone to loosen the adhesive that holds the battery in place.

    • Spend equal intervals of time on each area applying heat.

  18. KSMhKcuf6w1qNEIW
    KSMhKcuf6w1qNEIW
    cA3HNF2bxIAlQsqq
    EtjCZUVN4FU62Htw

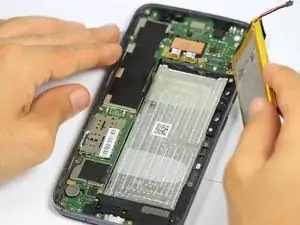

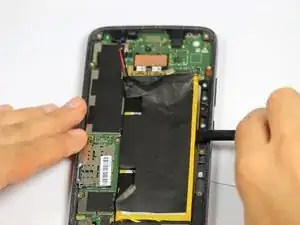

    • Insert the spudger underneath the right side of the battery.

    • Apply a moderate upward force along the length of battery, until the battery lifts out of place.

    • Remove the battery with your hand.

    It may be better to lift the battery by pulling up on the two back tape tabs at the left, rather than digging under it with the spudger to lift from the right. The top tab shows up well in the last photo.

    Mark I -

Abschluss

To reassemble your device, follow these instructions in reverse order.
