Motorola Moto G5s Plus Bottom Speaker Replacement

Geschrieben von: Kevin George

Kommentare: 3

Motorola Moto G5s Plus Bottom Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

40 Minuten

Einleitung

If you are experiencing trouble with your bottom speaker, chances are it has a faulty connection or it has been damaged. Follow these steps to remove your bottom speaker.

Werkzeuge

Schritt 1

Power off the phone before you begin.
Bring the heat gun one to two inches from the edges of the display to melt the display adhesive.
Spend equal amounts of time applying heat around the entire edge of the phone.

The screen is not coming off. I have set the temperature at 125 Celsius on my smd rework station and have tried heating up to 3 minutes. I am focusing heat on the lower part. The Adhesive doesn't become loose even a bit. I do not want to increase temperature further or heat for a longer time period before asking experts. Does moto g5 sPlus use a stronger adhesive?

Sahil Singh - 19/07/20

Schritt 2

Attach the suction cup to the display slightly to the left of center.
Exert a moderate force to pull on the suction cup. The display will come loose.

Schritt 3

Insert the opening tool inside the loosened edge.
Gradually work the opening tool around the edge of the entire screen to cut through the adhesive.
Do not wedge the opening tool too far beneath the screen. Using too much force can result in torn connector cables.

Note that the adhesive is much wider at top and bottom than along the sides. Cut deeper there, except for the fingerprint sensor.

Mark I - 03/08/20

Schritt 4

The display should now be entirely loose, attached only by the connectors at the top of the device and the fingerprint sensor connector at the bottom of the device.
Press down on the fingerprint sensor with the display slightly raised to disconnect it from the display.
If the fingerprint sensor does not come loose, use the heat gun to loosen its adhesive.

Schritt 5

The cables at the top of the device are fragile. If you are using this guide as a prerequisite for replacing another part, be careful not to tear the cables while lifting the screen.
Remove the one 5mm Torx-5 screw located by the connector cables in the top right corner of the device.

Schritt 6

Grab the unscrewed metal plate with your blunt tweezers.
Slide the metal plate to the left and then out to remove it.
Removing the plate will expose the display assembly's connection to the phone's motherboard.

Schritt 7

Disengage the two cable connectors by gently prying beneath the edge of the connector with the opening tool.

Schritt 8

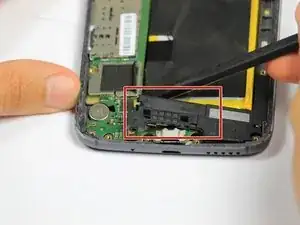

Lift up the detached right connector from its housing using blunt tweezers.
The housing has light adhesive underneath it. Use a small amount of force to remove the connector from the housing.

Schritt 9

Remove the nine black 5mm Torx-5 screws.
Remove the seven silver 5mm Torx-5 screws.

it took me an hour just to get the display open and I ended damaginging up the screen in the process so I do not recommend anyone doing it by themselves unless they are ok with wasting money on a new battery and the phone.
