Motorola Moto G7 Play Fingerprint Sensor Replacement

Geschrieben von: Monserath Casillas
  • Kommentare: 3
Motorola Moto G7 Play Fingerprint Sensor Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

25 Minuten

Einleitung

This is a fingerprint scanner replacement guide for the Motorola Moto G7 Play, specifically the XT1952-3 and XT1952-2. The fingerprint is an important feature for the device, as it helps provide extra security to keep files safe. If the device no longer unlocks when the sensor is touched, then it should be replaced.

  1. myPnevNSNNPKgJjY
    myPnevNSNNPKgJjY
    EO5ZBNZxWHVRNAoF

    • Turn off your device before you begin.

    • Use the iFixit pick to break the adhesive around the back case.

    • Use a heat gun, hairdryer, or iOpener to weaken the adhesive around the back case. If you're using the iOpener, please review the instructions for proper use.

    How long do you have to use the heat gun before the glue loosens?

    Pamela DeMars -

    It's worked for me with about maybe 15-20 seconds of heating per side.

    Matthieu Bister -

  2. tgoBehD2raMYJuwT

    • Detach the back case from the phone.

    • Make sure the back is opened right to left so the cable of the fingerprint scanner does not get damaged.

  3. ib1tdYuELTqFPZih
    ib1tdYuELTqFPZih
    qx5B3YUkDDxMqSno

    • Use the iFixit pick and the iFixit opening tool to pull the fingerprint scanner off of the back case.

  4. IBprkIPONWOLybDS

    • Remove the nine 3.2 mm screws from the motherboard cover with a Phillips #00 screwdriver.

  5. VKebaQtTHLDuDNod

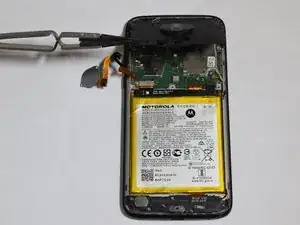

    • Lift motherboard cover from the bottom.

    • Use reverse tweezers or a similar tool if needed

  6. E5aIMedbGPQaXjIa
    E5aIMedbGPQaXjIa
    ZkjUdodIseXKavkI

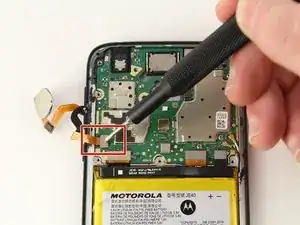

    • Using the iFixit opening tool, carefully disconnect the ribbon cable connecting the fingerprint scanner to the motherboard.

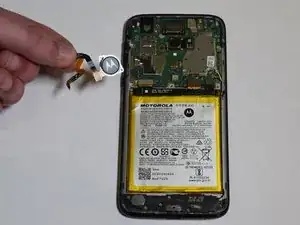

    • Remove the fingerprint scanner from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Monserath Casillas

Mitglied seit: 10/02/20

1101 Reputation

Ein Kommentar

Do you need to replace the adhesive on the rear cover? Or is it reusable?

wtwolfe -
