Motorola Moto X 2nd Generation Front Camera Replacement

Geschrieben von: Sophia
  • Kommentare: 3
Motorola Moto X 2nd Generation Front Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

Keine Schätzung

Einleitung

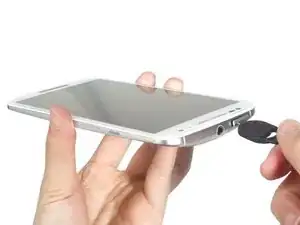

  1. dtTLnHjMx2FjOZTf
    dtTLnHjMx2FjOZTf
    LNuUIcCOPDpSvHRu
    4ZLBP2LIEe2fEdFq

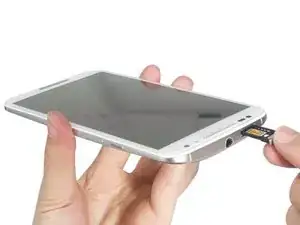

    • Remove SIM card tray. Remember to power off the phone at first.

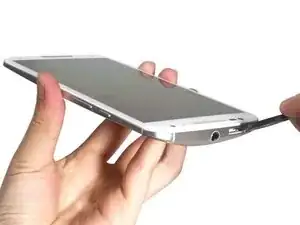

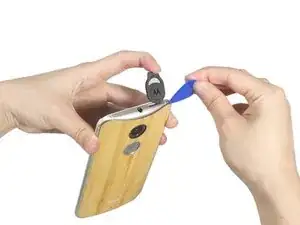

  2. YC3SOfGLQkBauXBV
    YC3SOfGLQkBauXBV
    s4KvDuGKBfXIkH15

    • Push the eject pin to open a gap and place a guitar pick into the gap.

  3. nOIR3wgMuYOeqWFH
    nOIR3wgMuYOeqWFH
    HtYhqmkYgvbHvWD2

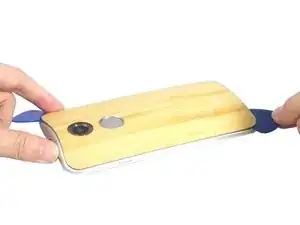

    • Slide the guitar pick to cut the adhesive sticker and peel off the soft back cover carefully.

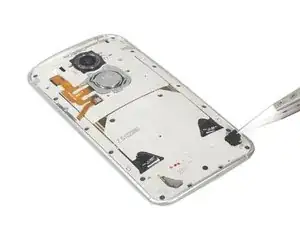

  4. Gqxv5KhFhbBjMNng
    Gqxv5KhFhbBjMNng
    2PAwybmAU2yrYgPq

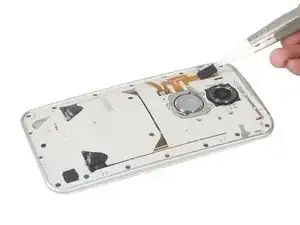

    • Remove those two pieces rubber cover.

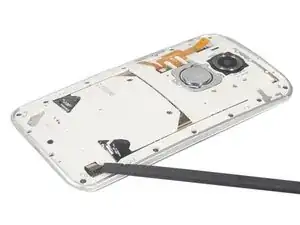

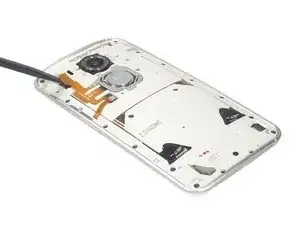

  5. ROUGxivsDQgicudL
    ROUGxivsDQgicudL
    ENntXNsTbqdFDxVD

    • Release power button connecting flex connector and battery connector.

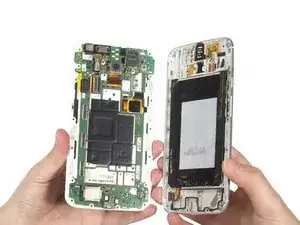

  6. YjSqhTNdPICtmUi1
    YjSqhTNdPICtmUi1
    mXU4RHkaP1MEXbXg

    • Twist off all 18 black torx screws and remove middle housing from front assembly.

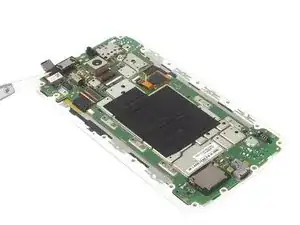

  7. 5laecwBrWrAoUDI3
    5laecwBrWrAoUDI3
    ZRytdG4RQlUQTBGu
    vtNtDu1cEjO4IrVK

    • Release front camera connector and remove it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
