Motorola Moto X 2nd Generation Logo Replacement

Geschrieben von: Sophia
  • Kommentare: 2
Motorola Moto X 2nd Generation Logo Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

Keine Schätzung

Einleitung

  1. SDab2QHXnXTqNrRU
    SDab2QHXnXTqNrRU
    bdMKSloxtQsiDh6Y
    a1amphPmMQZrVKcT

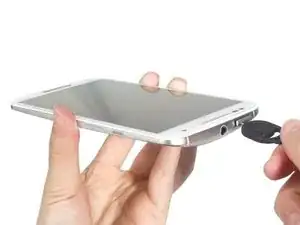

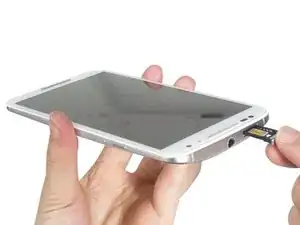

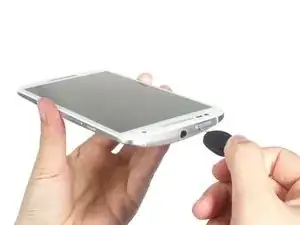

    • Remove SIM card tray.

  2. Yyg1IUCLJJ6XntCk
    Yyg1IUCLJJ6XntCk
    EDNytHMlnyGFEBmG

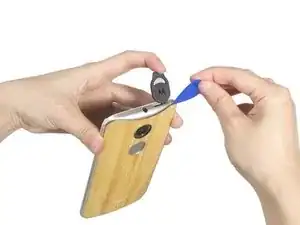

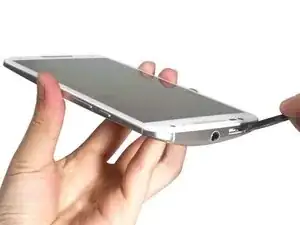

    • Use the eject pin to open a gap and place a guitar pick into the gap.

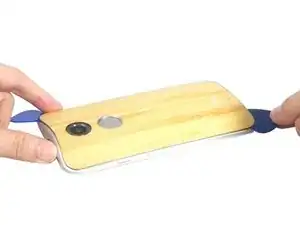

  3. lQ1keSKRT16rSYIA
    lQ1keSKRT16rSYIA
    BP2oXBATGVh245Rj

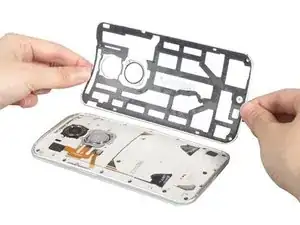

    • Slide the guitar pick to cut the adhesive sticker and peel off the soft back cover.

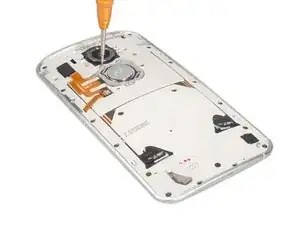

  4. Sa3N1ABaxV1bsuVU
    Sa3N1ABaxV1bsuVU
    61vkM3hFlYTXeKqI
    IyUTNYC1raMnQNRr

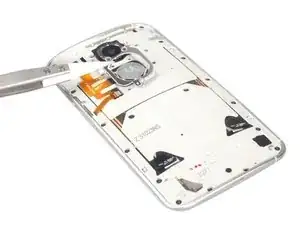

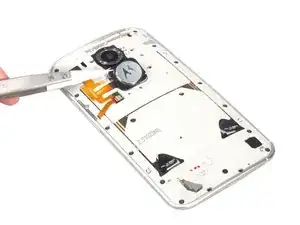

    • Twist off three screws, pry up the securing bracket and remove the logo finally.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Sophia

Mitglied seit: 25/03/14

43756 Reputation

2 Kommentare

So apparently, this phone was supposed to have a fingerprint scanner. To anyone who has done this repair, I'm sure you're as confused as me as to why there is a flex cable leading to the "M" logo with nothing attached. My though is that's where the scanner was going to go, and it just never happened, which also explains why the iconic Motorola M dimple is a separate part, compared to the old Moto X and the Gs and Es, which was part of the back plastic cover.

Jeff Caauwe -

Where can you get the replacement part? I'm finding it difficult.

Niall Murray -
