Motorola Moto X 2nd Generation Power and Volume flex cable Replacement

Geschrieben von: Sophia
  • Kommentare: 3
Motorola Moto X 2nd Generation Power and Volume flex cable Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

Keine Schätzung

Einleitung

  1. iN26y43IWB5GBCK6
    iN26y43IWB5GBCK6
    oVp5ISmWW6kEtd2N
    ahwSCpId1o3xaWeY

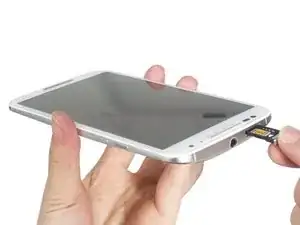

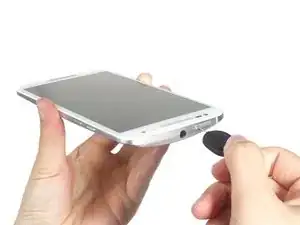

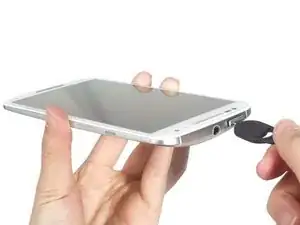

    • Remove SIM card tray.

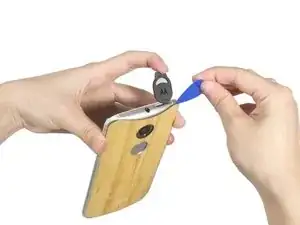

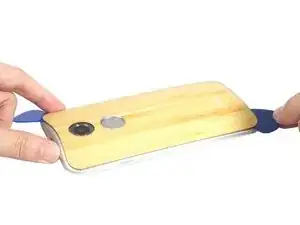

  2. KiUWUVnvlhHaMIWh
    KiUWUVnvlhHaMIWh
    ygporVjDHXKUOAOE
    uEieVysUf6CEcUY6

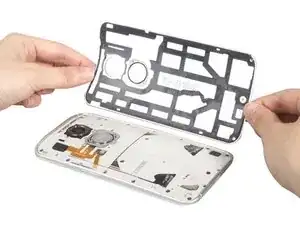

    • Remove back cover.

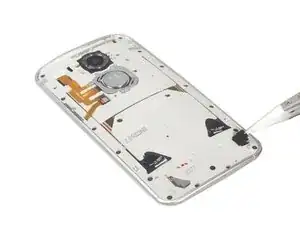

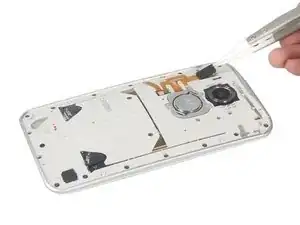

  3. MQJBAsPHGUbvQJBZ
    MQJBAsPHGUbvQJBZ
    LEfmV4yHOT6NvdWf

    • Remove those two rubber cover.

  4. hwOFOU1d6cQb5MJb
    hwOFOU1d6cQb5MJb
    TFiUXoUM53Od5mWT

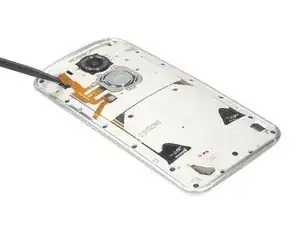

    • Release power connecting flex connector and battery connector.

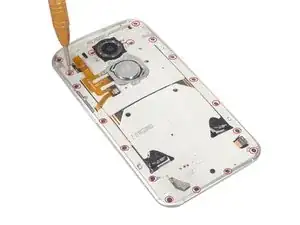

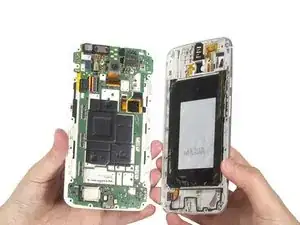

  5. 6HmBSBgjlD4OIReM
    6HmBSBgjlD4OIReM
    tN3GueLvqWGISjPs

    • Twist off all 18 black torx screws and remove the middle housing from front assembly.

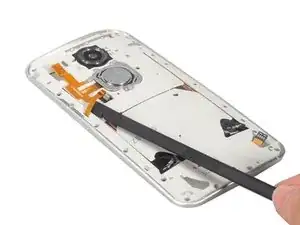

  6. XZXRfsaXPSwSwcmY
    XZXRfsaXPSwSwcmY
    MB5FjvBVLpIJNbiB

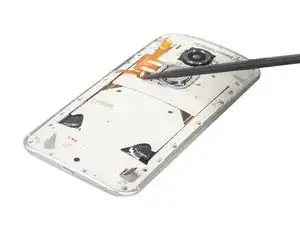

    • Release power flex connector from connecting flex.

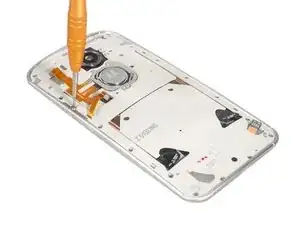

  7. uJdeG1M3pSi2FcPn
    uJdeG1M3pSi2FcPn
    MWikpoSiuCaoaeFm
    JfbCdinBp625j5pC

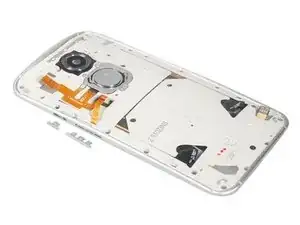

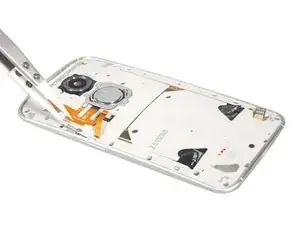

    • Remove securing bracket and side buttons.

  8. oYPTeBkqSMcdjCDo

    • Pry up and remove the power flex.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Sophia

Mitglied seit: 25/03/14

43756 Reputation

3 Kommentare

Followed your instructions. Volume works, power button still no go.

It clicks fine, but nothing happens..

Carlo Petermann -

I have the same issue. Any ideas? Resolutions?

sagar bhale -

The screwdriver is T4 on my european moto X 2014, not T3!!

Clément Masci -
