Motorola Moto X 2nd Generation Rear Camera Replacement

Geschrieben von: Sophia
  • Kommentare: 0
Motorola Moto X 2nd Generation Rear Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

Keine Schätzung

Einleitung

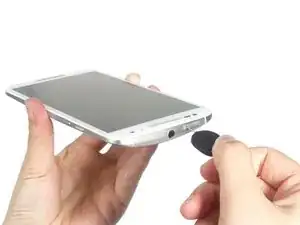

  1. cebqCUD1pbEMqS1v
    cebqCUD1pbEMqS1v
    EGIP2TJxeRHfPkLc
    bBiyoMr4qGFud5wI

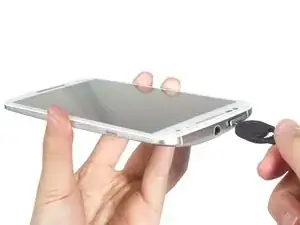

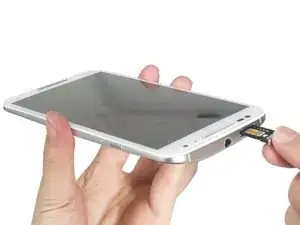

    • Remove SIM card tray.

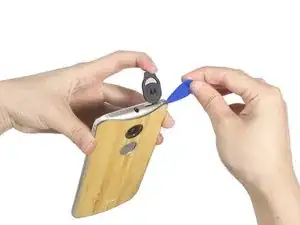

  2. VAdBHi6rFqogZRff
    VAdBHi6rFqogZRff
    NxfSFaJLd2YqGrRF

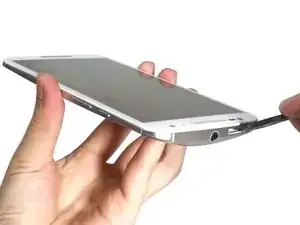

    • Push the eject pin to open a gap and place a guitar pick into the gap.

  3. EbcnN3sklNJe1dlx
    EbcnN3sklNJe1dlx
    VqEOSZHeau13inva

    • Slide the guitar pick to cut the adhesive sticker and peel off the back cover.

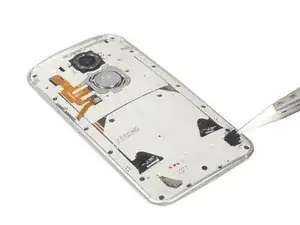

  4. a5jRMownN4hGuKYG
    a5jRMownN4hGuKYG
    yGtV1l51nIOuO3mk

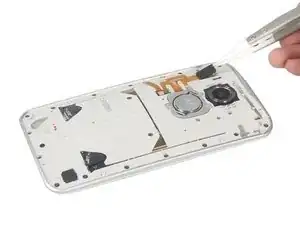

    • Remove two pieces rubber cover which protecting the flex connectors.

  5. rrAFrrjiUFUtSFnH
    rrAFrrjiUFUtSFnH
    6tZiPX36ltxJMvWE

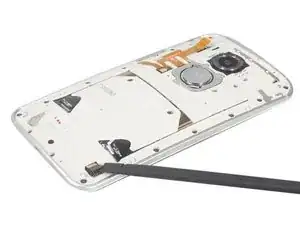

    • Release the power button connecting flex connector and battery connector carefully.

  6. WAruVPeAk2KxBNyG
    WAruVPeAk2KxBNyG
    NFQJ5xNKsQQPx6mA

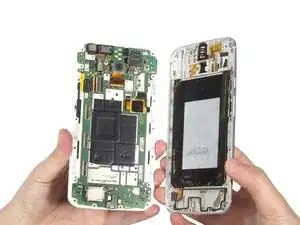

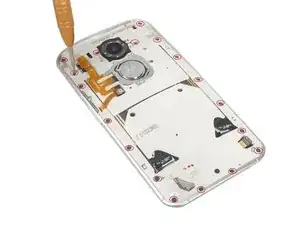

    • Twist off all 18 black torx screws and separate the middle housing from front assembly.

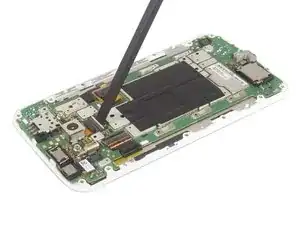

  7. mj2eeKihSWgRTTnQ
    mj2eeKihSWgRTTnQ
    15eXM2iBypEtNTss
    i5nu5Z6TsQEIoTdZ

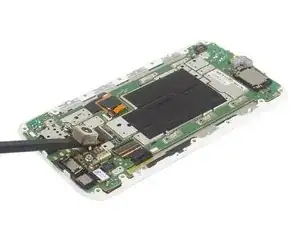

    • Release rear camera connector and remove it easily.

Abschluss

To reassemble your device, follow these instructions in reverse order.
