Motorola Nextel i880 Logic Board Replacement

Geschrieben von: Danielle Matthews
  • Kommentare: 0
Motorola Nextel i880 Logic Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

20 - 30 Minuten

Einleitung

  1. RQsXORuAThSu6Cdy

    • Remove back cover of the phone by disengaging the clip and lifting up on the cover.

  2. wvKRXUj5nWkM5MsV
    wvKRXUj5nWkM5MsV
    EdlUuD6ayDTLwq1c

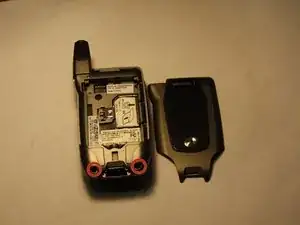

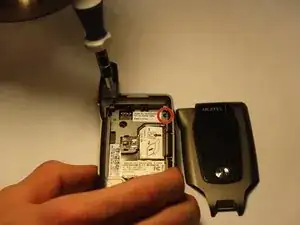

    • Remove screws 1 through 4.

  3. TPvU6vLephXOVnL4

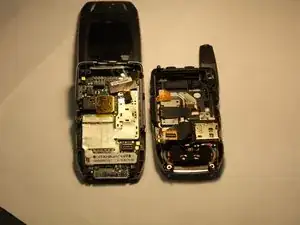

    • Once all four screws are removed, you should be able to take off the back half of the phone.

  4. 4PxNnABFvbDENWaG

    • Remove the connection at the top right of the circuit board.

  5. 2WopPQPuegUNCFSm

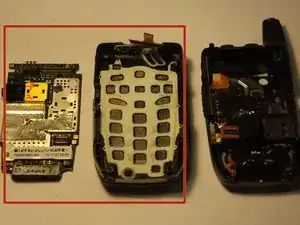

    • Insert new logic board and reattach top right cable.

  6. MVNYMnbR4VhxylHP

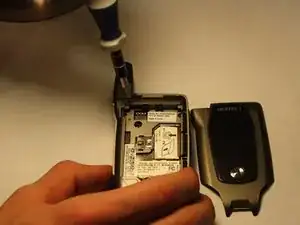

    • Snap the front and back of the phone back together and reinsert screws 1 through 4.

Abschluss

To reassemble your device, follow these instructions in reverse order.
