Einleitung
If your phone is malfunctioning and you cannot fix it through other guides, the motherboard may need to be replaced. Use this guide to replace the motherboard.
-
-

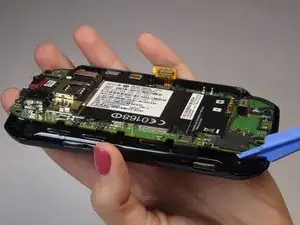

Insert a plastic opening tool into the indentation at the bottom of the phone between the front and rear covers.
-
Lift the back cover from the bottom and remove it from the phone.
-
-
-

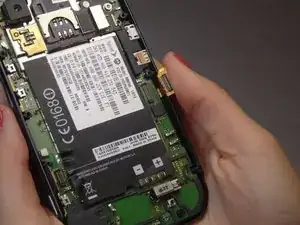

Insert a plastic opening tool, or your finger, into the notch in between the sim card and the battery and lift the battery upward.
-

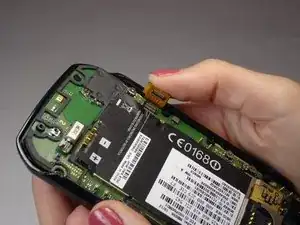

Remove the battery from your phone.
-
-
-
Remove the 10 T4 Torx screws securing the midframe to the display assembly.
-
Gently pry the midframe from the display assembly and remove it.
-
-
-

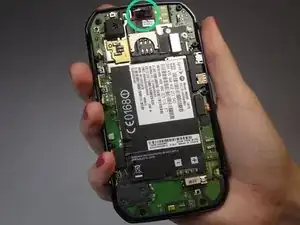

Locate the Display Data Cables
-
Use hands or plastic opening tool to carefully pry off the connectors.
-
-
-
Use a plastic opening tool to gently pry off each section of the Motherboard.
-

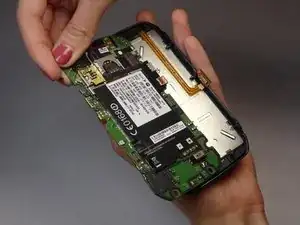

Use hands to slowly and carefully remove the motherboard from the front panel assembly.
-
To reassemble your device, follow these instructions in reverse order.
