Motorola Q Global Speakers Replacement

Geschrieben von: Carlos De La Parra
  • Kommentare: 0
Motorola Q Global Speakers Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 - 15 Minuten

Einleitung

This guide outlines the steps to disassemble the Q Global to access the internal speakers. It can be used to replace or repair a damaged speaker.

  1. PDfDKIuknhlFUTmG

    • Turn the phone face down.

    • Press and hold the release button in the middle of the back panel.

    • Slide the bottom panel down to remove.

  2. CoBRRtEcIfZn5fRH
    CoBRRtEcIfZn5fRH
    mYiqILTNIvYDFaut

    • Remove the battery pack by prying it out with a fingernail, screw driver or other opening tool at the tab shown.

    • When reinserting the battery, make sure the contacts in the battery are lined up with the contacts in the phone.

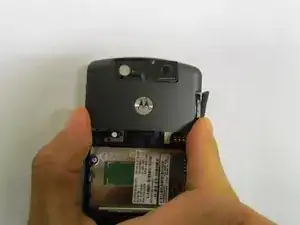

  3. 6TcOw12n2ZQZFLvY

    • Press inwardly on the upper casing until it pops out of the phone.

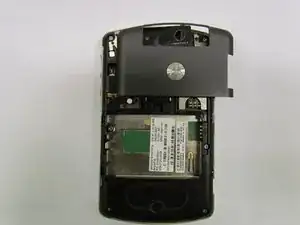

  4. eZeAk1cUlvprdGQ5

    • Slide the upper case rightward and lift up.

    • Lift the camera sticker so that it does not get damaged.

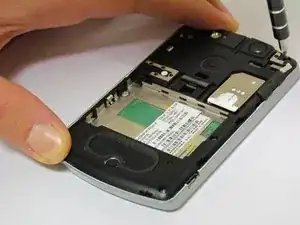

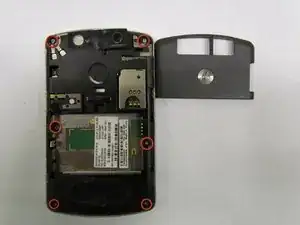

  5. OBQRmnS6q5qhUrTg
    OBQRmnS6q5qhUrTg
    2hjtiZYuSwWoJ6Xu

    • Remove the six labeled screws with a T5 torx screw driver.

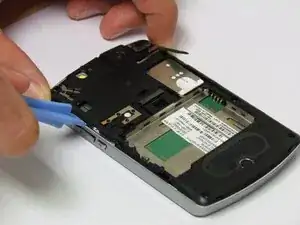

  6. UHpMskAdTb66hO5I

    • Once the screws are removed, use the plastic opening tool to remove the black casing.

  7. OHYXy2lbayYlj2Bw

    • Remove the speakers by using the plastic remover tool.

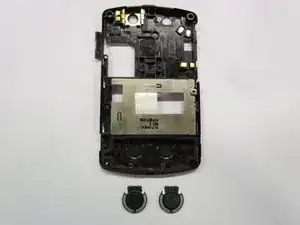

  8. NmRUBFsVJFTErQUl

    • Insert the new speakers by gently pressing them down into place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
