Motorola RAZR Maxx HD External Speaker Replacement

Use the Torx T5 Screwdriver to remove two 5.0 mm screws at the bottom of the phone.

To remove the SIM card, use an unfolded paperclip to press down on the metal plate on the left side of the phone until it pops up.

Gently push the screen toward the top edge of the phone and tilt the screen to reveal the black flex cables.

Release the two black ribbon flex cables by gently pulling up on the connection using the spudger. Then lift the screen to remove.

Remove the plastic yellow tape on the battery connector using the spudger.

Pry up on the orange connection to release it from the motherboard.

Unscrew all ten 4.0 mm screws on the motherboard using a T5 Torx screwdriver.

Using tweezers, remove the clear plastic covering on the speaker.

Pry open the connection by lifting up on the speaker wire connector.

Using tweezers, remove the back facing camera cover.

Using the spudger tool, release the yellow ribbon cable on the headphone jack cover by pushing up on the connection.

Remove the cover from the motherboard.

Release the yellow flex cable on the right side of the phone using the spudger by lifting up on the retaining clip.

Wedge the spudger between the motherboard and the back case.

Work your way around the entire edge of the motherboard to release it and remove it from the back of the phone.

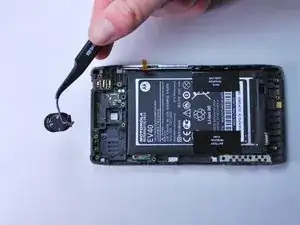

Use tweezers to remove the speaker from the top left of the phone by pulling upward.
