Einleitung
The motherboard needs to be removed in order to access the headphone jack. This guide involves the removal of various screws and parts so make sure you are in a clean and organized environment to avoid the loss of any components.
Werkzeuge
-
-
To remove the SIM card, use an unfolded paperclip to press down on the metal plate on the left side of the phone until it pops up.
-
-
-
Gently push the screen toward the top edge of the phone and tilt the screen to reveal the black flex cables.
-
-
-
Release the two black ribbon flex cables by gently pulling up on the connection using the spudger. Then lift the screen to remove.
-
-
-
Use the Torx T5 screwdriver to remove two 4.0 mm screws on the cover of the headphone jack in the upper right corner.
-
-
-
Using the spudger tool, release the ribbon cable on the headphone jack cover by pushing up on the connection.
-
Remove the cover from the motherboard.
-
-
-

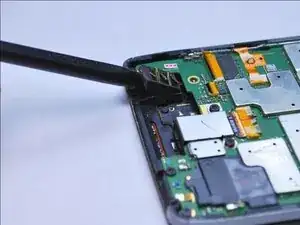

Using the pointy end of the spudger, gently pry the headphone jack from the motherboard and remove it.
-
To reassemble your device, follow these instructions in reverse order.
