Motorola RAZR Maxx HD Screen Replacement Prerequisite

Geschrieben von: Enrique
  • Kommentare: 0
Motorola RAZR Maxx HD Screen Replacement Prerequisite

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

10 Minuten

Einleitung

  1. VMM3MJpj4r2YDGpr
    VMM3MJpj4r2YDGpr
    D5RVjHcvjPHXERcP

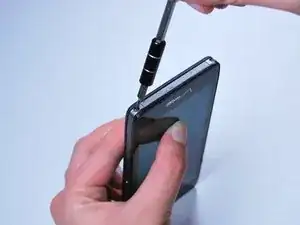

    • Use the Torx T5 Screwdriver to remove two 5.0 mm screws at the bottom of the phone.

  2. kgVSFosu4ZhMBQVD
    kgVSFosu4ZhMBQVD
    BZSlcOjv6ecNuwTH

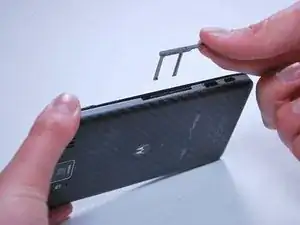

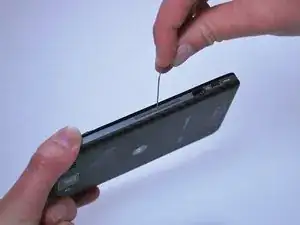

    • To remove the SIM card, use an unfolded paperclip to press down on the metal plate on the left side of the phone until it pops up.

  3. pQ1IBWHXCJeaDpMj
    pQ1IBWHXCJeaDpMj
    AnsrZDwmp4DH2T5O

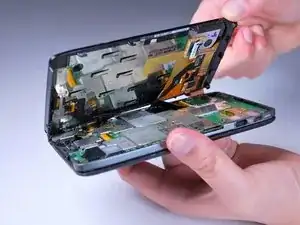

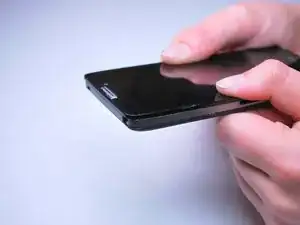

    • Gently push the screen toward the top edge of the phone and tilt the screen to reveal the black flex cables.

    • Do NOT remove the screen all the way or the flex cables will be damaged.

  4. w6bjBBrtHKRSsByx
    w6bjBBrtHKRSsByx
    oDMUWRkW4BEOqCJX

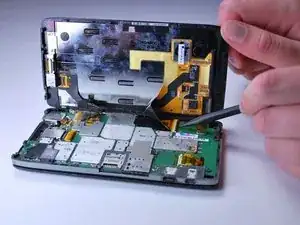

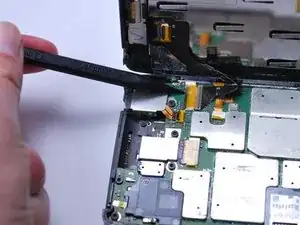

    • Release the two black ribbon flex cables by gently pulling up on the connection using the spudger. Then lift the screen to remove.

    • Make sure to remove the flex cables before completely removing the screen.

    • When reassembling, align the white bands on the edge of the screen so that a connection is made.

Abschluss

To reassemble your device, follow these instructions in reverse order.
